Norāde 61018-uniw Kategorija Smart controllers Zīmols Shelly
EAN13 3800235267660

SHELLY Plus RGBW PM Wi-Fi/Bluetooth LED Strip Controller (2-pack)

Jauns
74,97 €
AR PVN
Ir Noliktavā

Product Parameters

ConnectivityBluetooth, Wi-Fi
CategorySwitches
AppAmazon Alexa, Google Home
Quantity per carton500 pcs.
Gross weight40
Net weight320
Box length7,50
Box width4,00
Box height2,50

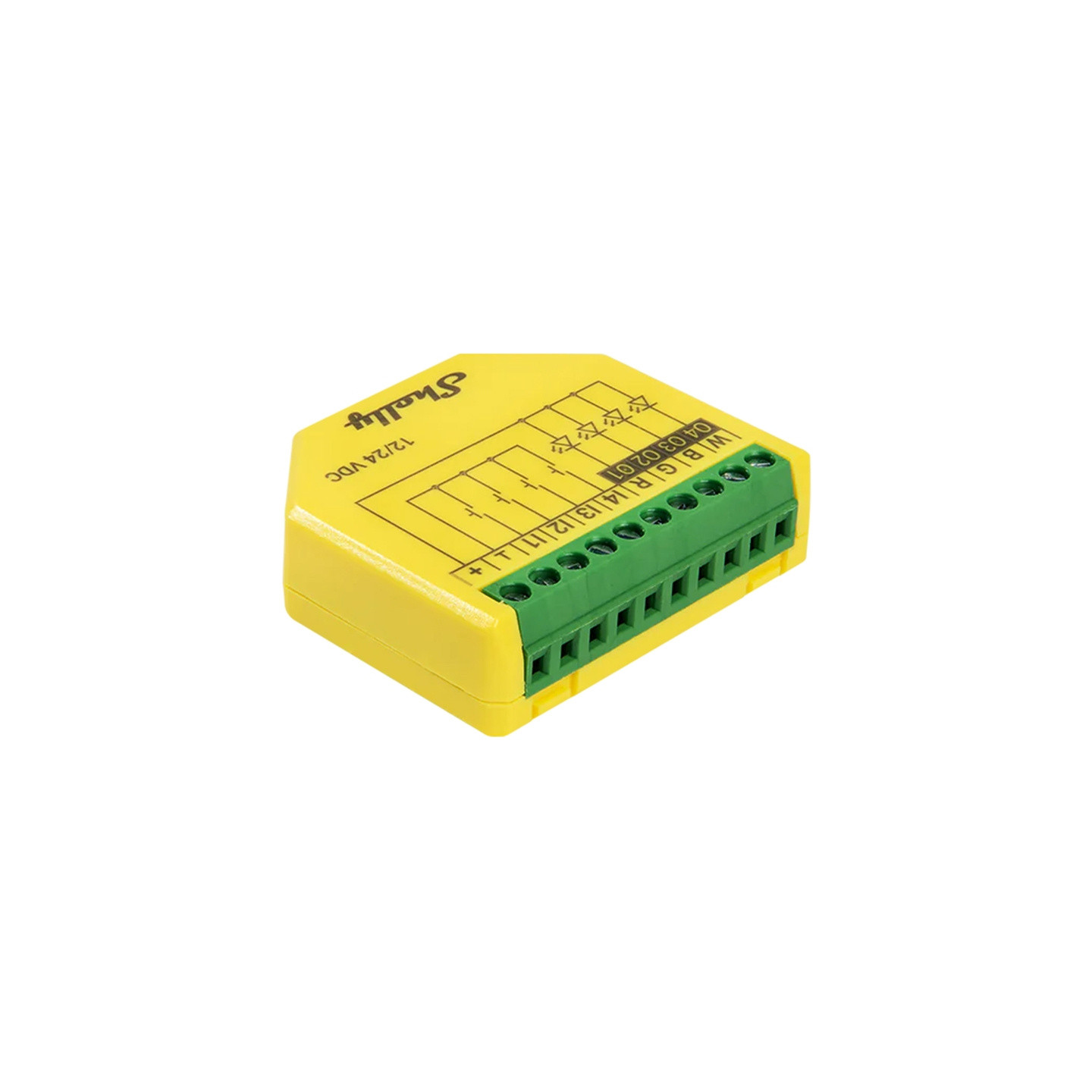

Shelly Plus RGBW PM LED Strip Controller

The Shelly Plus RGBW PM LED Strip Controller is your key to creating a unique atmosphere in your home or office.  It supports 12V and 24V LED strips in White, RGB, and RGBW modes, giving you complete freedom to customize your lighting. Subtle lighting for evening relaxation, dynamic lighting effects at a party, or practical kitchen under-cabinet lighting—it’s all at your fingertips. No need to install additional hubs means you can start your smart lighting adventure right after connecting. The set includes two Shelly LED strip controllers.

Yellow Shelly LED strip controller with connected wires on a wooden desk

Lighting effects that delight

With the Shelly Plus RGBW PM, you can give your interior a unique character. Set the right mood by dimming the lights or choosing from 16 million colors. The device also offers unique lighting effects that will bring any room to life—from subtle color transitions to dynamic color changes.

Yellow Shelly LED strip controller in an installation box

Smart schedules and scenes

Adapt your lighting to your lifestyle with smart schedules and scenes. The Shelly Plus RGBW PM controller lets you create personalized schedules that automatically adjust the lighting to your daily routine. Connect it with other Shelly devices to build a comprehensive automation system that fully meets your needs!

Yellow Shelly LED strip controller with connected wires on a wooden desk

Control at your fingertips

With Wi-Fi and Bluetooth support, controlling your lighting is a breeze. All you need is the Shelly Smart Control app to monitor energy usage, set night mode, or make changes in real time. The device works with the most popular platforms and protocols, as well as voice assistants like Alexa and Home Assistant. You can also integrate it with your favorite automation system to enjoy full control over your lighting—no matter where you are.

Yellow Shelly LED strip controller held in hand against a gray background

Safety and reliability in one

The device monitors energy consumption and features overload protection, which enhances safety and helps control costs. The built-in ESP32 processor ensures instant responses to every change, so every setting adjustment is immediately visible. The Shelly Plus RGBW PM also functions as a Wi-Fi repeater and BLE gateway, improving the range of your home network.

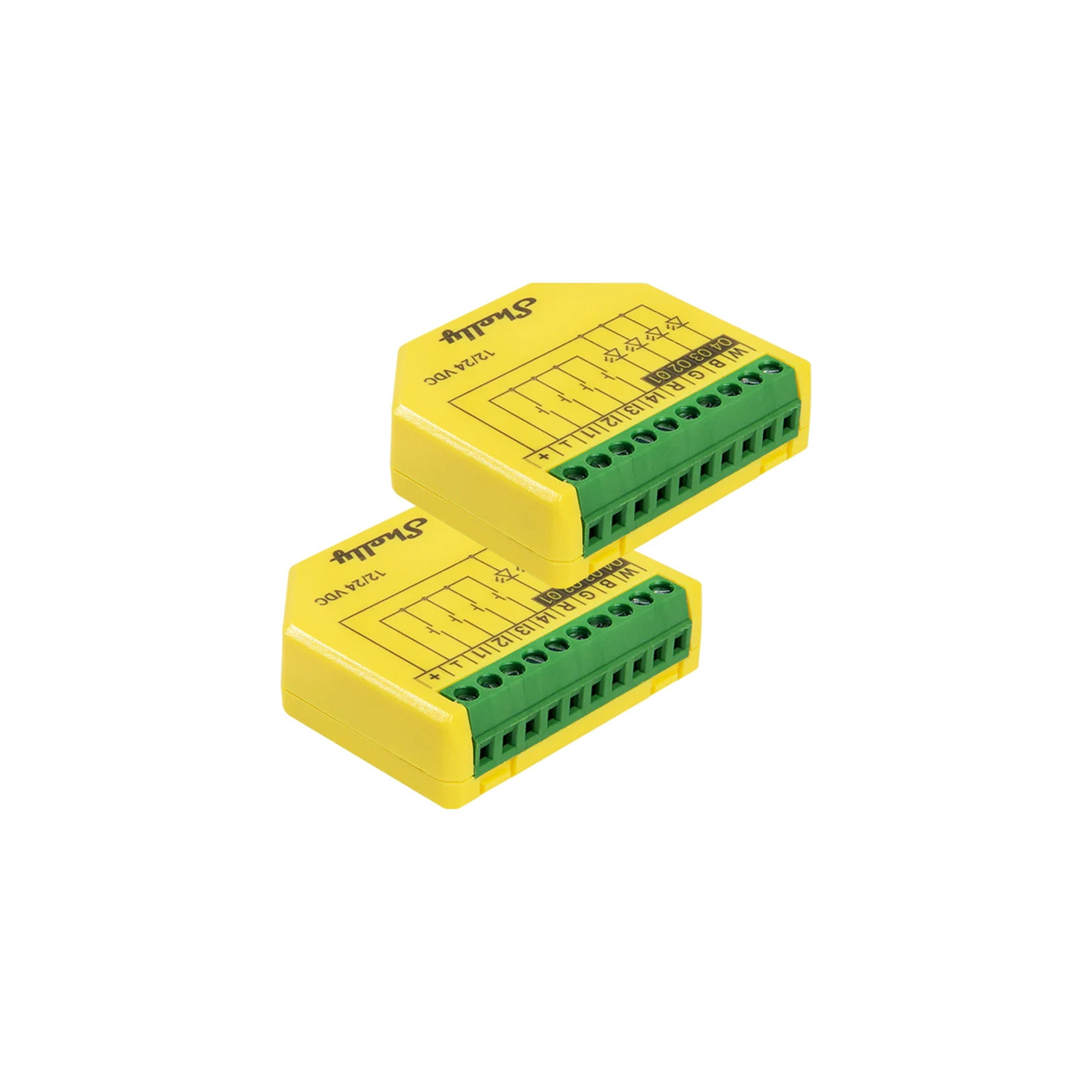

Two Shelly LED strip controllers

Included

  • Shelly LED strip controller x 2



ManufacturerShelly
ModelPlusRGBWPM
Dimensions42 x 37 x 12 ±0.5 mm
Weight17 g
Maximum tightening torque for screw terminals0.2 Nm
Wire cross-section0.1 to 1 mm²
Stripped wire length6 mm
InstallationIn a wall box
Housing materialPlastic
Housing colorYellow
Connector colorGreen
Ambient temperaturefrom -20 °C to 40 °C
Humidity30% - 70%
Power supply12/24 VDC
Power consumption< 1.2 W
Maximum control voltage24 VDC
Maximum control current4 A per channel (10 A total)
PWM frequency22 kHz
Voltmeter0–24 V
Voltmeter accuracy± 5%
Ammeter0-10 A
Ammeter accuracy± 10%
Power and energy measurementYes
No-load detection threshold0.5 VA per channel
Built-in temperature sensorYes
Wi-Fi rangeUp to 30 m indoors, up to 50 m outdoors (depending on local conditions)
Bluetooth version4.2
Bluetooth rangeUp to 10 m indoors, up to 30 m outdoors (depending on local conditions)
ProcessorESP-Shelly C38F
Clock speed160 MHz
RAM400 KB
Flash memory4 MB
Schedules20
Webhooks (URL actions)20 (5 URLs per webhook)
ScriptsYes
MQTTYes
