Reference 57965-uniw Category Measuring tools Brand UNI-T
EAN13 6935750566756

Uni-T UT667-10m Borescope

Jauns
54,07 €
AR PVN
Ir Noliktavā

Product Parameters

HS Code8525890000
Gross weight710
Net weight300
Quantity per carton20 pcs.
Box length18,50
Box width12,00
Box height10,50

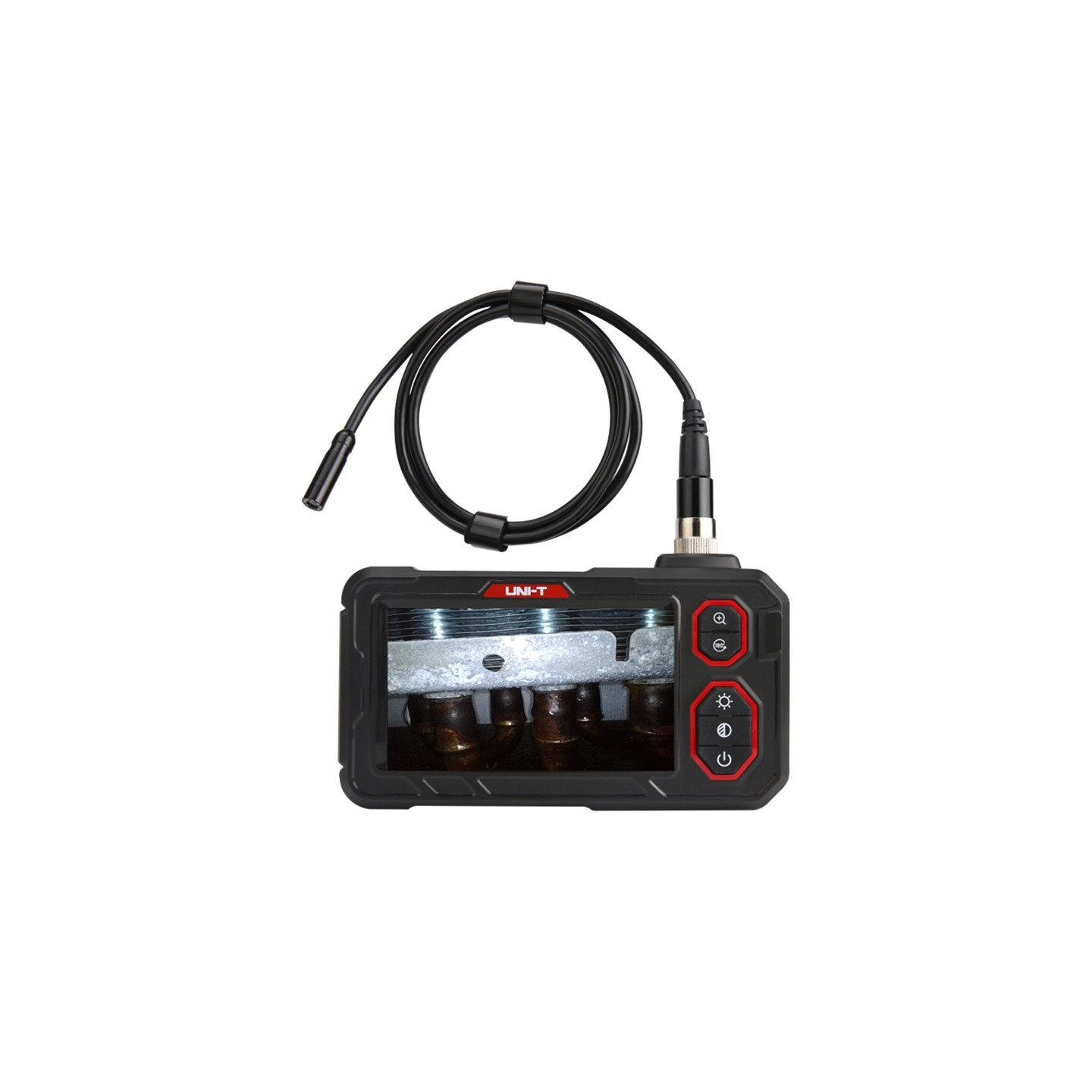

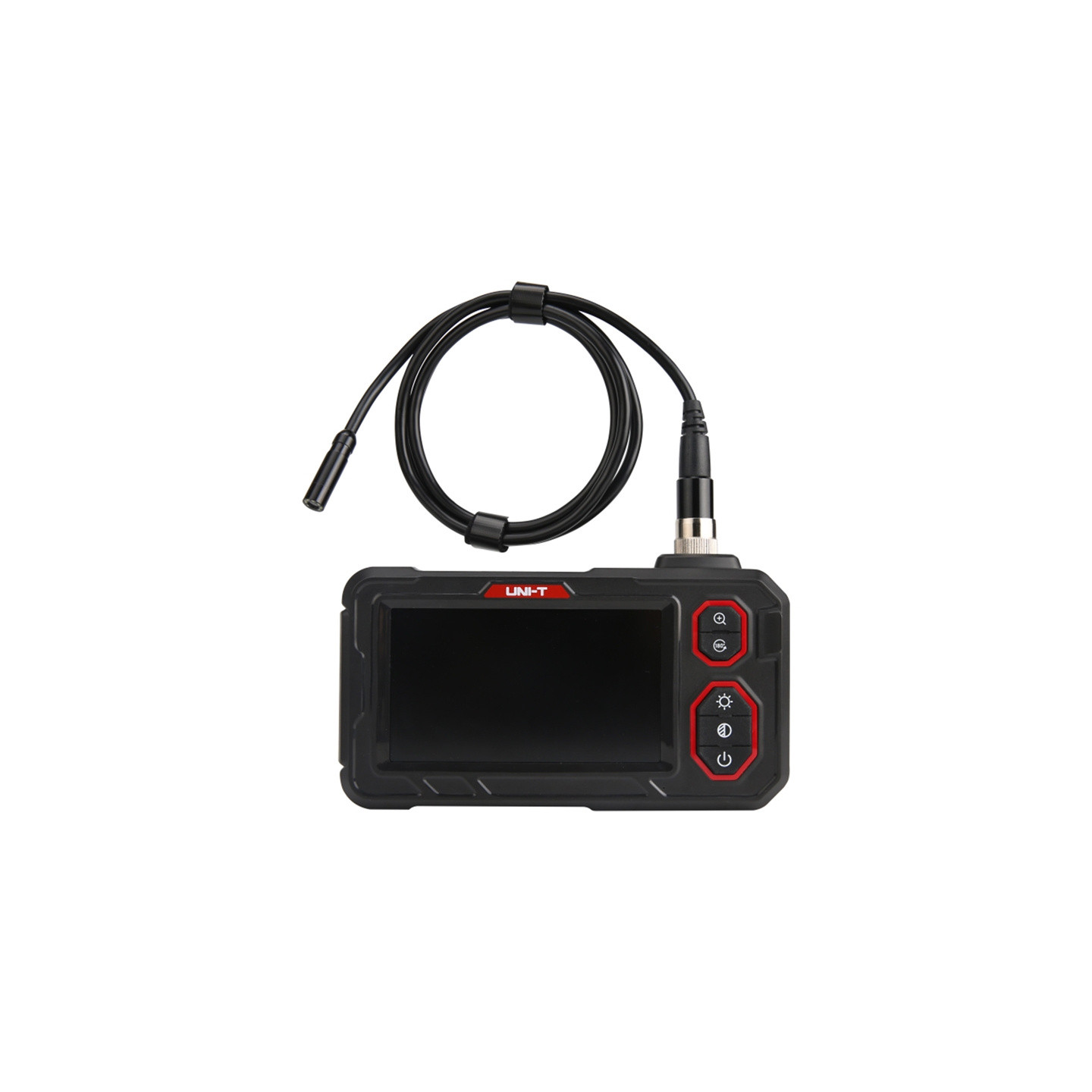

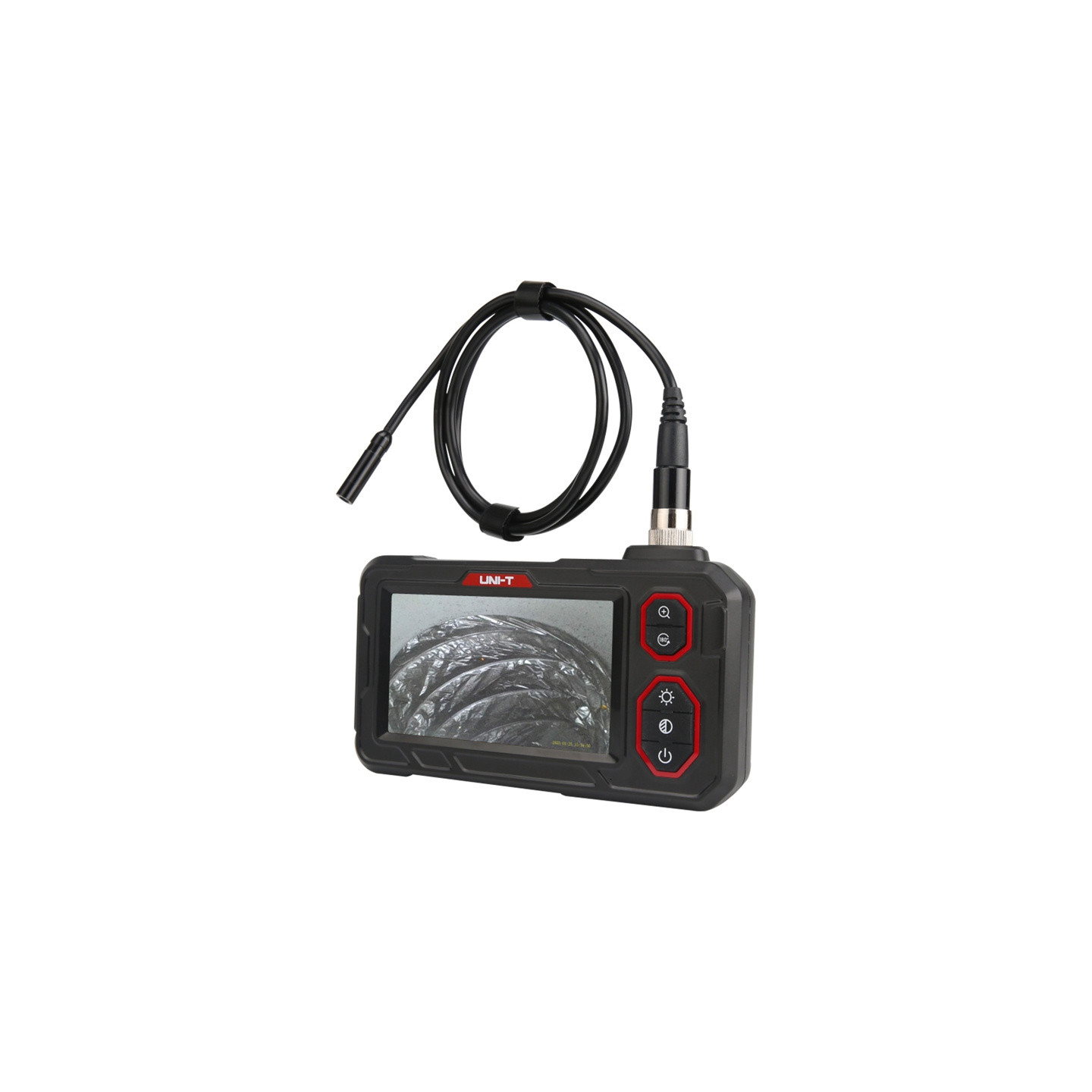

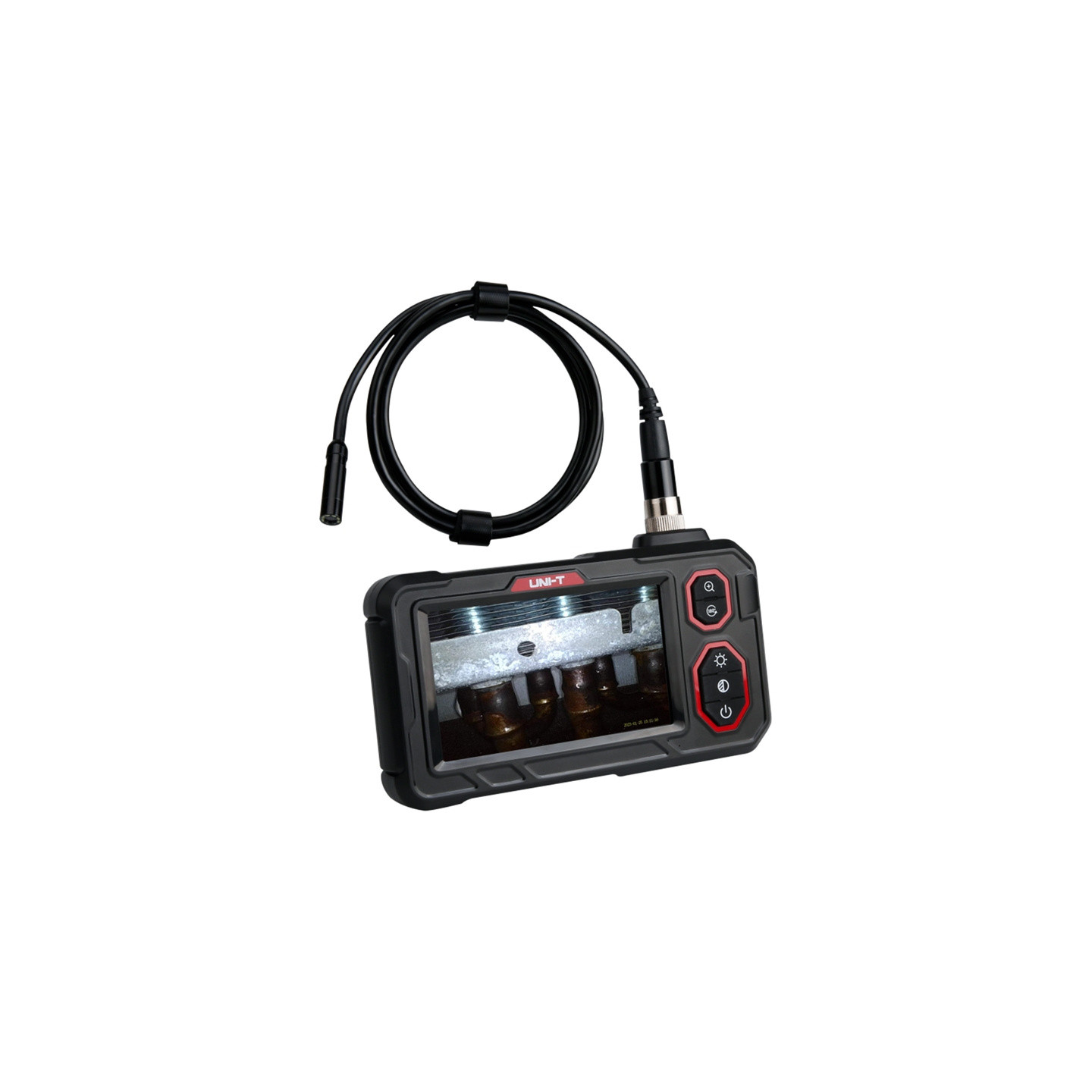

Uni-T UT667-10m borescope

The Uni-T UT667 borescope with a 10-meter cable is designed for inspecting hard-to-reach areas without the need to disassemble components. It is ideal for industrial, automotive, and maintenance applications where a quick view of the interior of machines or pipes is essential. Equipped with a 4.3" screen, it provides a clear image, and features such as image rotation and zoom facilitate the analysis of details during operation.

Portable video borescope used for inspecting car engine components with on-screen image preview.

Image Quality and Ease of Use

The 8 mm diameter camera with LED lighting allows for operation in dimly lit spaces, and brightness adjustment lets you tailor visibility to the conditions. The 10 m cable provides a good balance between reach and control over the camera, which works well for standard inspections. The IP67-rated waterproof probe and rugged construction increase the device’s durability during daily use.

Video borescope with a flexible probe that displays the interior of a conduit or pipe during technical inspection.

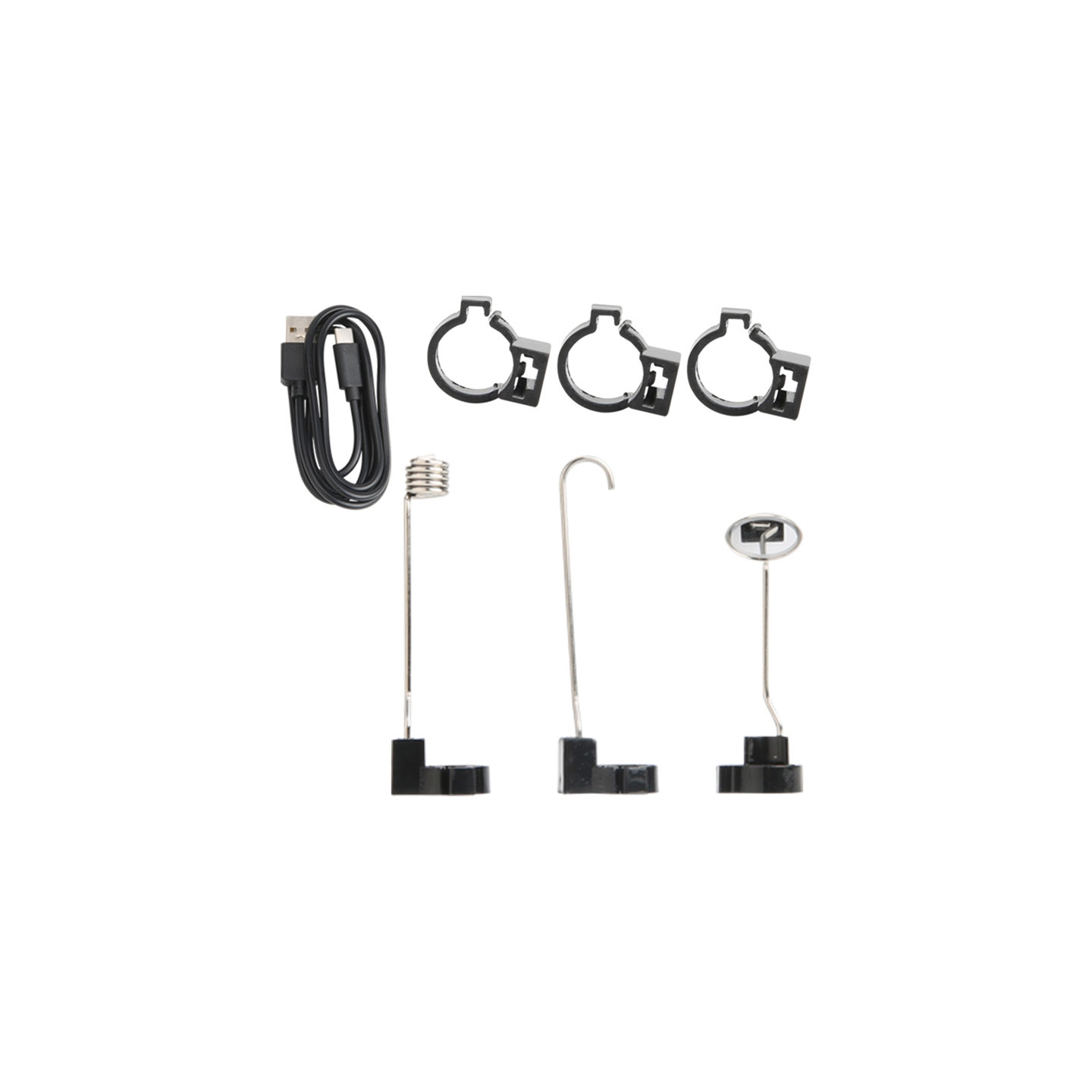

Included

  • UT667-10m borescope
  • USB-C cable
  • Hook, side mirror, magnet
  • Mounting clamps
  • User manual

Specifications

ManufacturerUni-T
ModelUT667-10m
Product typeIndustrial borescope
Display type4.3" IPS LCD display
Display resolution1280 × 720 px
System languageEnglish
FunctionsScreen rotation, black-and-white images, color conversion, zoom in, zoom out
Cable typeReplaceable cable with aviation connector
Cable length10 m
Lens diameter8 mm
Image sensorCMOS
Field of view70°
Focus range (Depth of field)20...100 mm
LED brightness adjustment4 levels
Number of LEDs8
Camera resolution300K px
Probe protection ratingIP67
Power supply3.7 V / 2000 mAh rechargeable battery
Operating time5 h
Camera head temperature range0...80°C
Ambient operating temperature range0...45°C
Ambient operating humidity range<90% RH (non-condensing)
CertificationsCE, RoHS
