Uni-T UT133A Handheld Digital Multimeter

Name: Uni-T UT133A Handheld Digital Multimeter
Brand: UNI-T
SKU: 57831-uniw
Price: 22.03 EUR
Availability: InStock

Jauns

22,03 €

AR PVN

Ir Noliktavā

Product Parameters

Gross weight	390
Net weight	255
HS Code	9030310090
Quantity per carton	30 pcs.
Box length	16,50
Box width	10,50
Box height	5,50

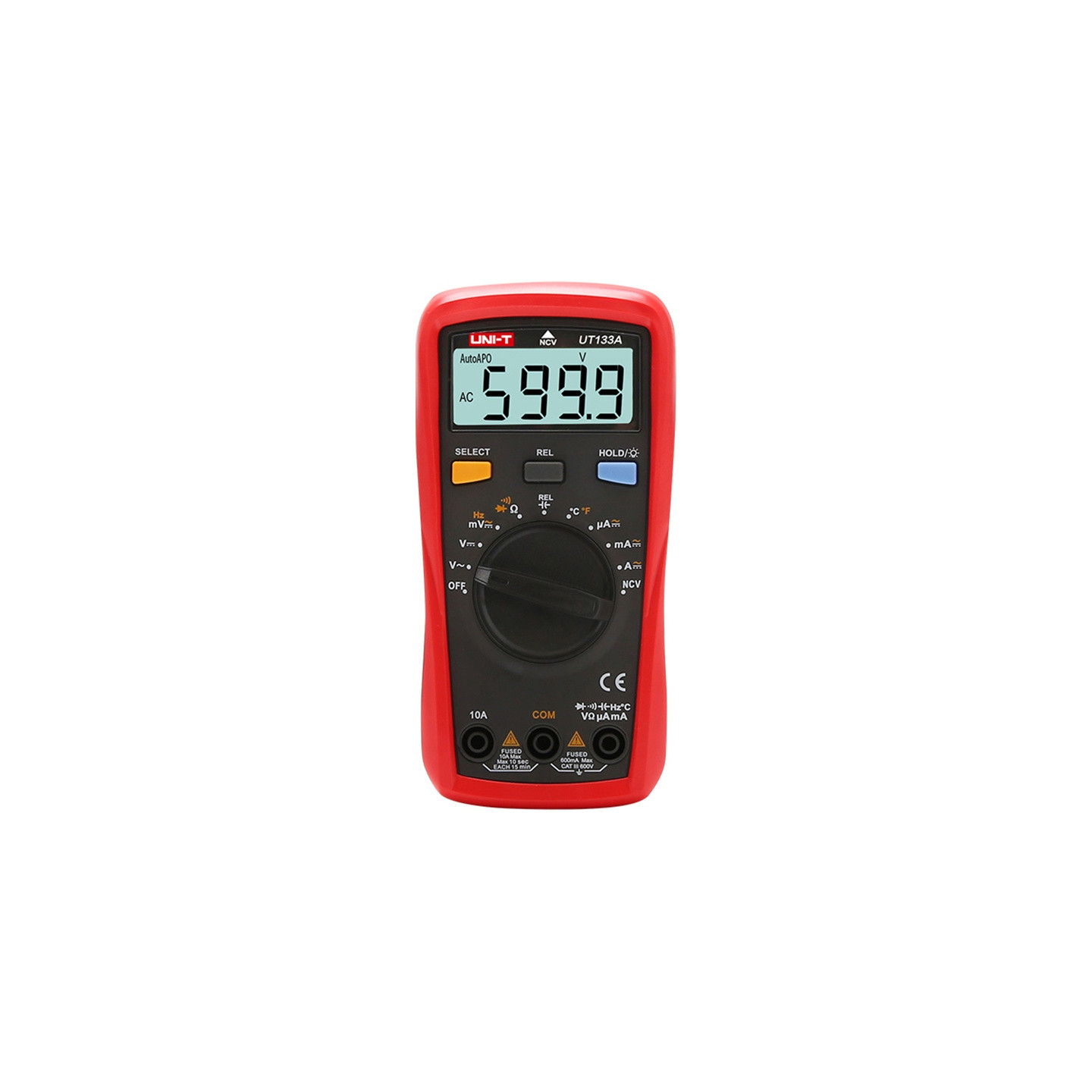

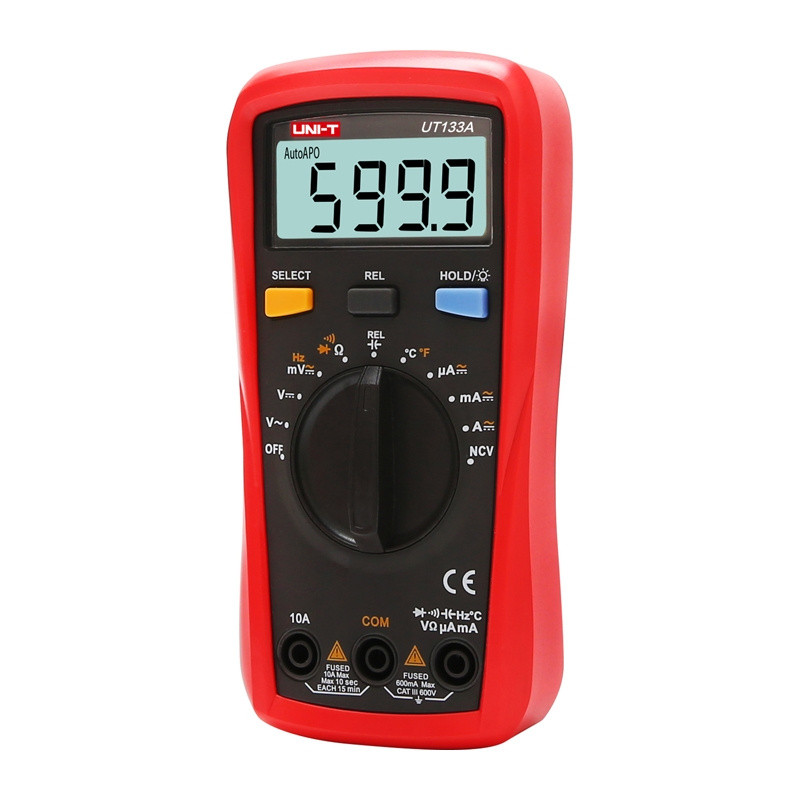

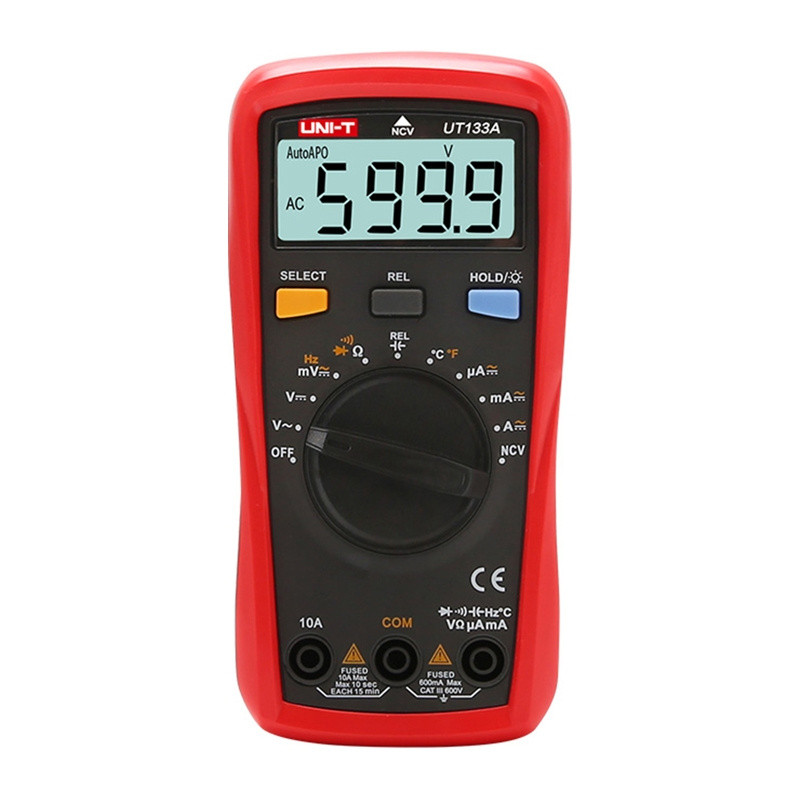

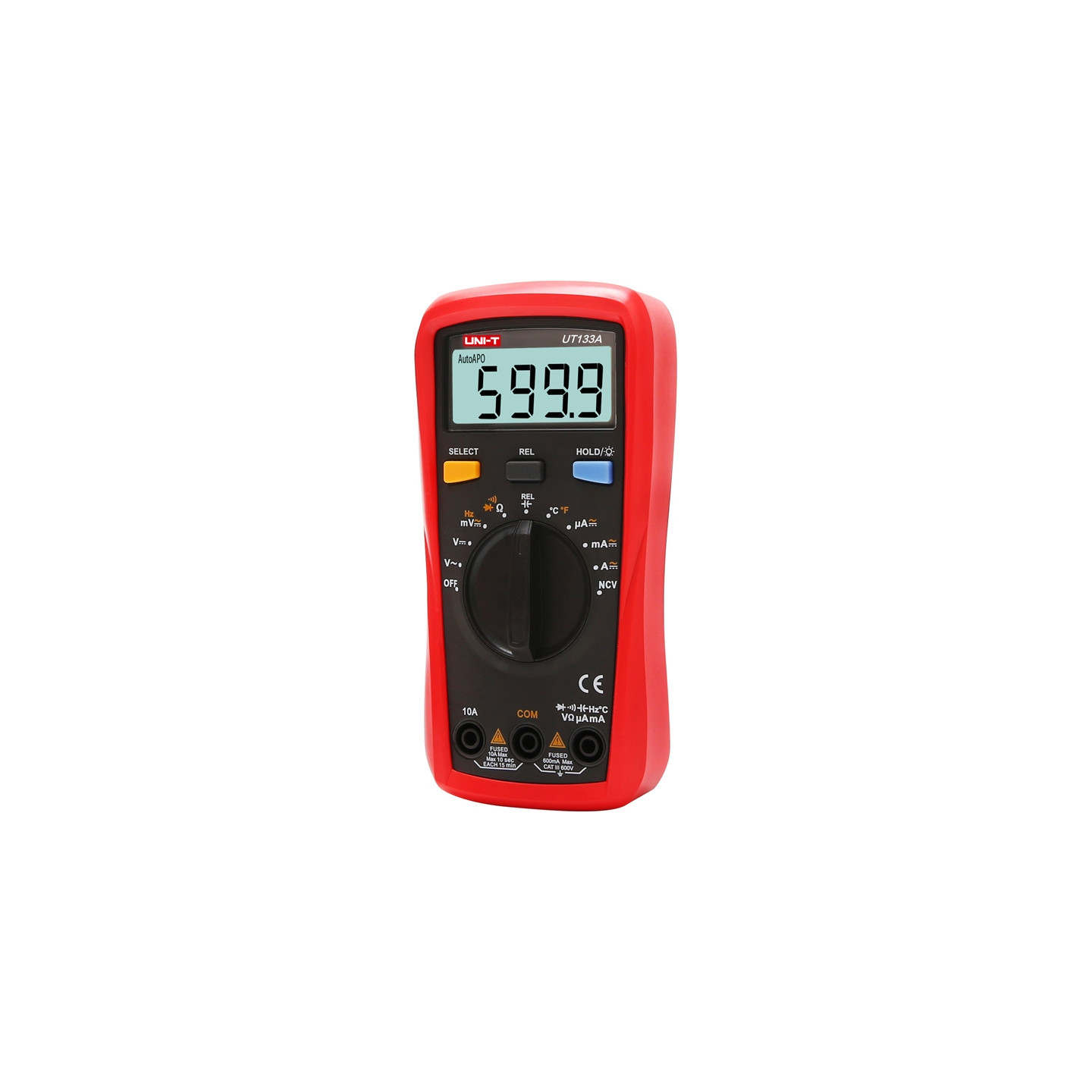

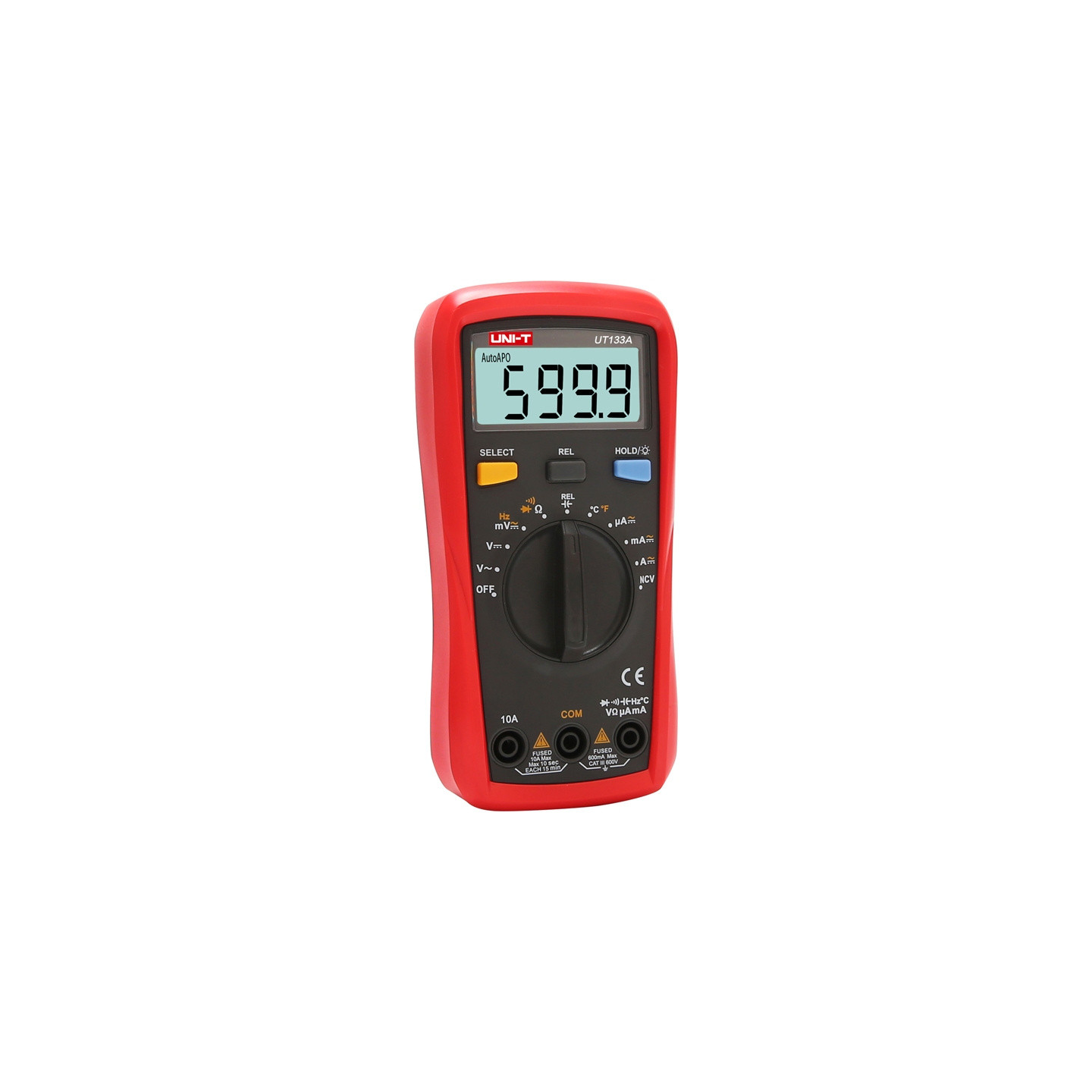

Uni-T UT133A handheld digital multimeter

The Uni-T UT133A is a compact digital multimeter designed for electrical and maintenance applications, combining a compact design with a wide range of measurement capabilities. The device measures AC/DC voltage up to 600 V, AC/DC current up to 10 A, resistance up to 60 MΩ, capacitance up to 9.999 mF, frequency up to 1.000 MHz, and temperature from -40°C to 1000°C. An intelligent ADC circuit and automatic range switching speed up measurements and enhance ease of use during daily operations.

Features enhancing comfort and safety

The UT133A model is equipped with a diode test, continuity buzzer, NCV function, Data Hold, backlit LCD display, and automatic shut-off. Additional benefits include alarms warning of overvoltage or overcurrent, as well as safety features that enhance user safety. A housing resistant to drops from heights of up to 2 meters improves the device’s durability, and the CAT II 600V safety category makes the multimeter well-suited for standard measurement tasks.

Included

Handheld digital multimeter
Test leads
Thermocouple
User manual

Specifications

Manufacturer	Uni-T
Model	UT133A
Product type	Digital multimeter
DC voltage range	600 mV / 6000 mV / 20 V / 200 V / 250 V ±(0.5% + 3)
AC voltage range	600 V ±(0.7% + 3)
DC current range	600 µA / 60 mA / 600 mA / 10 A ±(1.0% + 3)
AC current range	10 A ±(1.2% + 3)
Resistance measurement range	600 Ω / 6000 Ω / 60 kΩ / 600 kΩ / 60 MΩ ±(0.8% + 2)
Capacitance measurement range	9.999 nF / 99.99 nF / 999.9 nF / 9.999 µF / 999.9 µF / 999.9 µF / 9.999 mF ±(4.0% + 5)
Frequency range	10.00 Hz – 1.000 MHz ±(0.1% + 4)
Temperature measurement range (°C)	-40...1000°C ±(1.0% + 4)
Temperature measurement range (°F)	-40...1832°F ±(1.5% + 5)
Maximum display reading	6000
Range selection	Automatic
Functions	Diode test, continuity buzzer, NCV, Data Hold, LCD backlight, auto power off, overvoltage or overcurrent alarm, high voltage warning
Measurement category	CAT II 600V
Drop resistance	2 m
Power supply	2 × 1.5 V (R03)
Weight	255 g
Dimensions	155 × 76.5 × 49 mm
Display dimensions	56.8 × 36.1 mm
