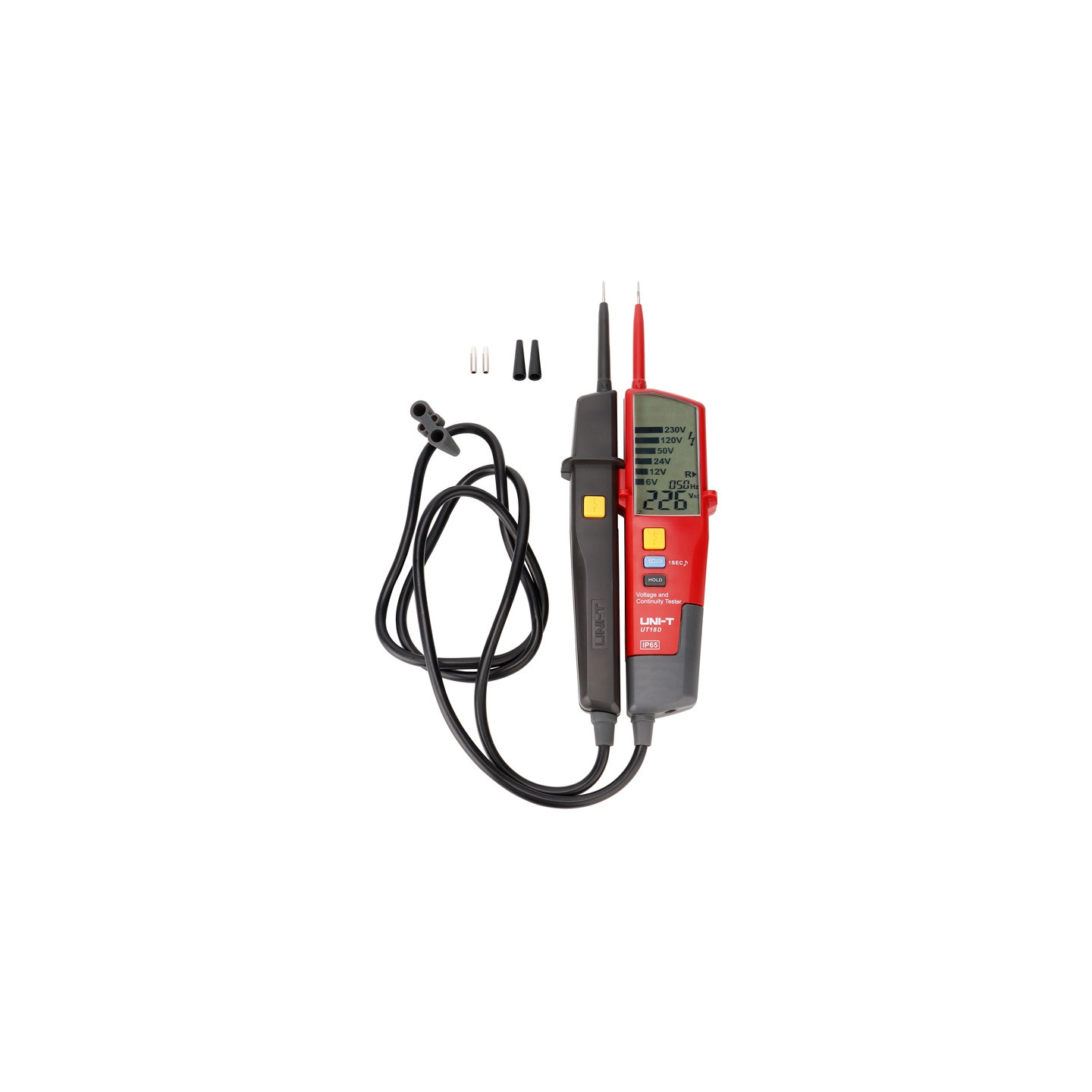

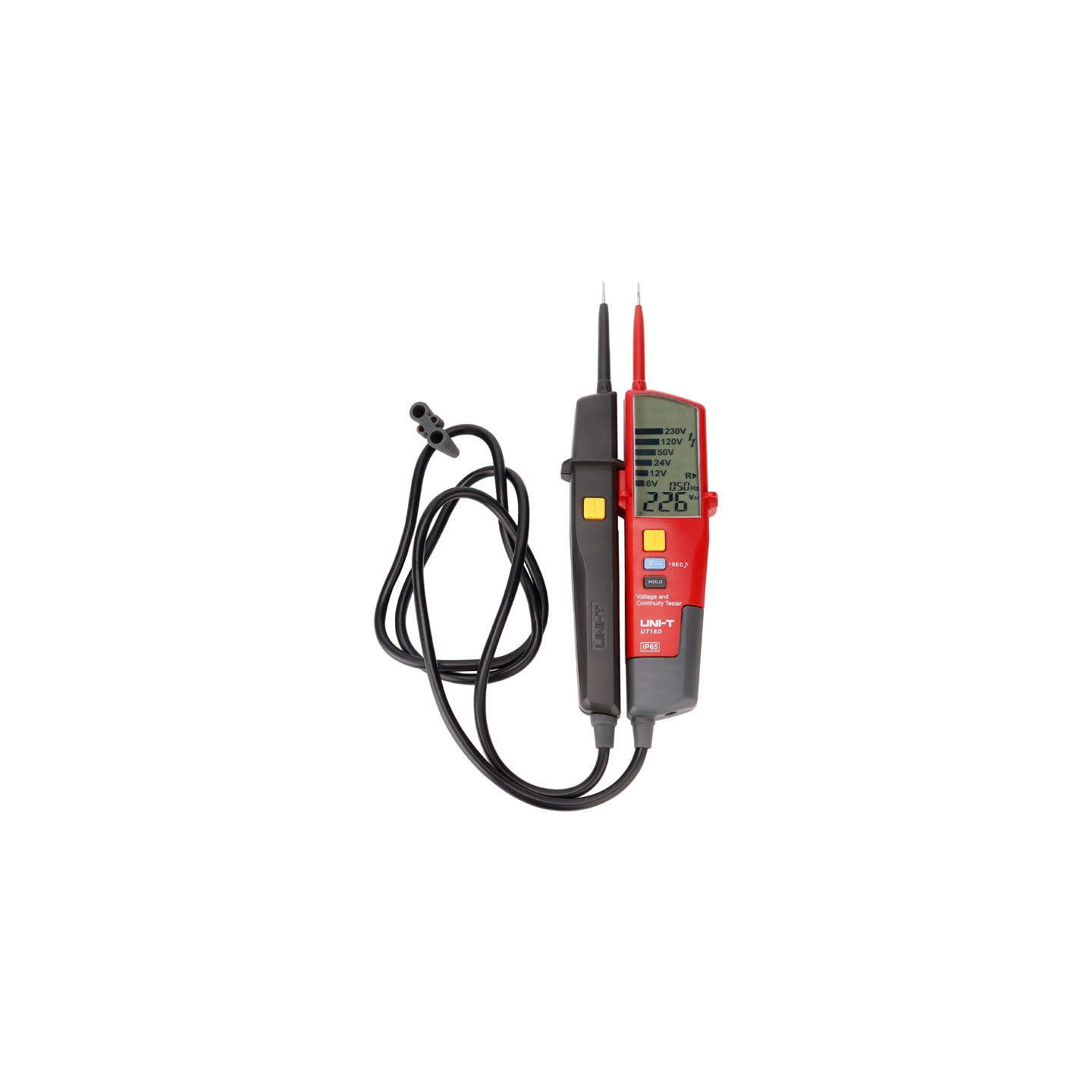

Uni-T UT18D Voltage and Continuity Tester

Name: Uni-T UT18D Voltage and Continuity Tester
Brand: UNI-T
SKU: 57806-uniw
Price: 43 EUR
Availability: InStock

Jauns

43,00 €

AR PVN

Ir Noliktavā

Product Parameters

Gross weight	440
Net weight	280
HS Code	9030310090
Quantity per carton	20 pcs.
Box length	34,00
Box width	15,50
Box height	3,50

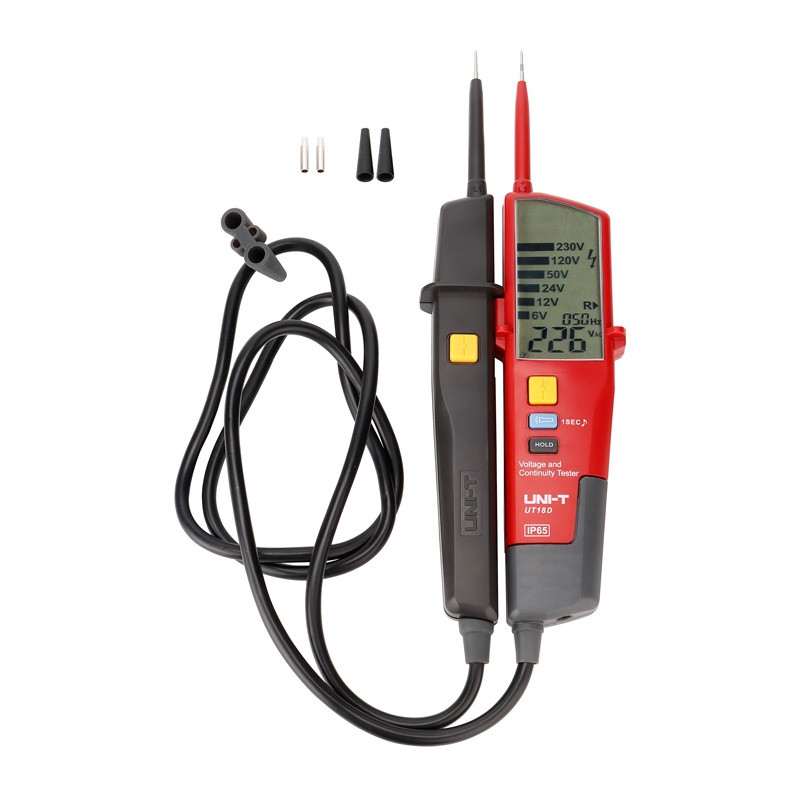

Uni-T UT18D voltage and continuity tester

The Uni-T UT18D is the most feature-rich voltage and continuity tester in the UT18 series, designed for diagnosing electrical installations in demanding operating conditions. The device allows for AC/DC voltage measurement in the range of 6 V to 690 V, frequency measurement from 40 Hz to 400 Hz, circuit continuity testing with audible and LED indicators, detection of positive and negative polarity, phase sequence testing, and voltage detection with a single probe. The model is equipped with a large, backlit LCD display measuring 73.5 × 35.5 mm, which improves the readability of results, while additional features such as RCD testing, self-test, silent mode, auto-standby, flashlight, and low-battery indicator streamline daily installation and maintenance work. The robust construction, compliant with IP65 and CAT IV 600 V, ensures high durability and safety of use.

Included

Voltage and continuity tester
2 AAA batteries
User manual

Specifications

Manufacturer	Uni-T
Model	UT18D
Product type	Voltage and continuity tester
Voltage display	LCD
LCD backlight	Yes
Voltage range	6 V (5 V ± 1 V), 12 V (8 V ± 1 V), 24 V (18 V ± 2 V), 50 V (38 V ± 4 V), 120 V (94 V ± 8 V), 230 V (180 V ± 14 V), 400 V (325 V ± 15 V), 690 V (562 V ± 24 V)
LCD voltage range	6–690 V
LCD frequency range	40–400 Hz
LCD voltage accuracy	±(1.5% + 5)
LCD frequency accuracy	±(3% + 5)
LCD screen dimensions	73.5 × 35.5 mm
Phase rotation test	57–400 V AC, 3-phase, 50–400 Hz
Single-wire L2 voltage detection	100–690 V, 50–400 Hz
Continuity test	0 Ω – 100 kΩ
Continuity test accuracy	+50%
Continuity test indication	Buzzer and LED
RCD test	230 V, 50–400 Hz
Polarity detection	Positive and negative
Self-test	Yes
Test without power	No
Overvoltage protection	713–788 V
Silent mode	Yes
Auto standby	Yes
Flashlight	Yes
Low battery indicator	Yes
Ingress protection	IP65
Measurement category	CAT IV 600 V
Power supply	2 × 1.5 V (R03)
Weight	280 g
Dimensions	272 × 85 × 31 mm
Color	Red and gray
