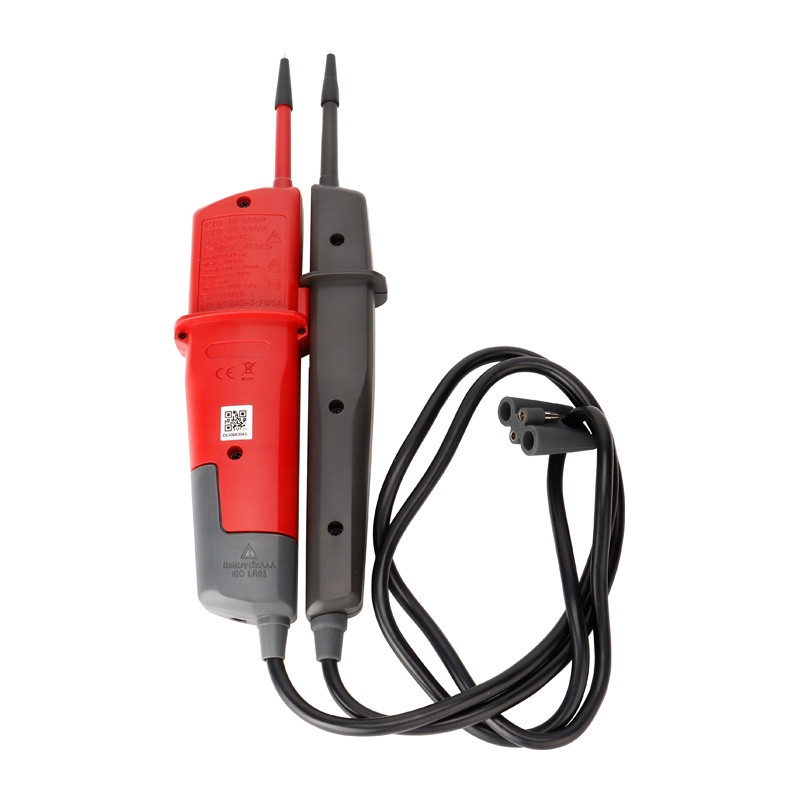

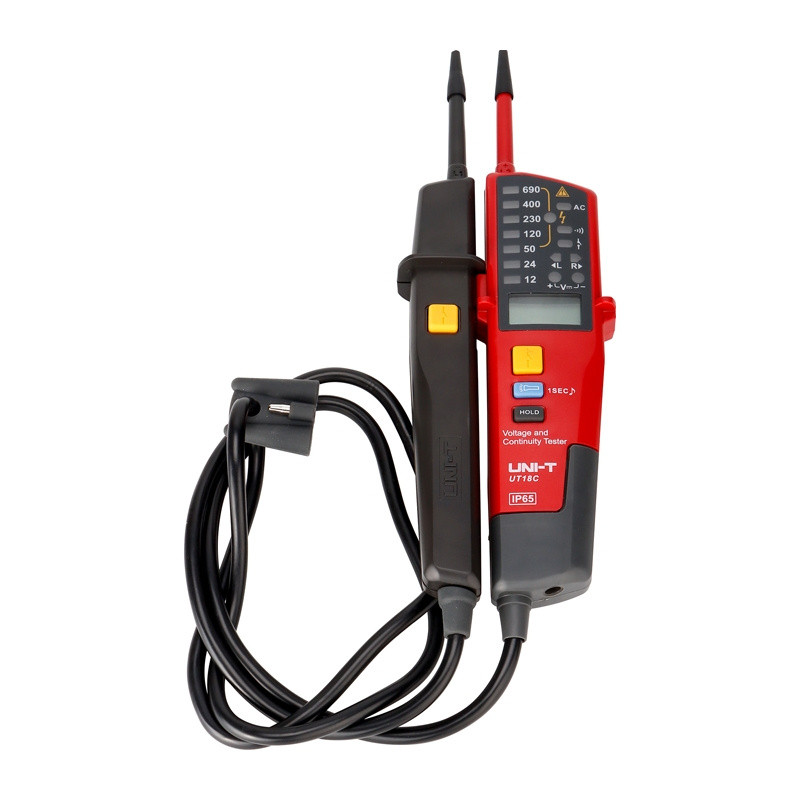

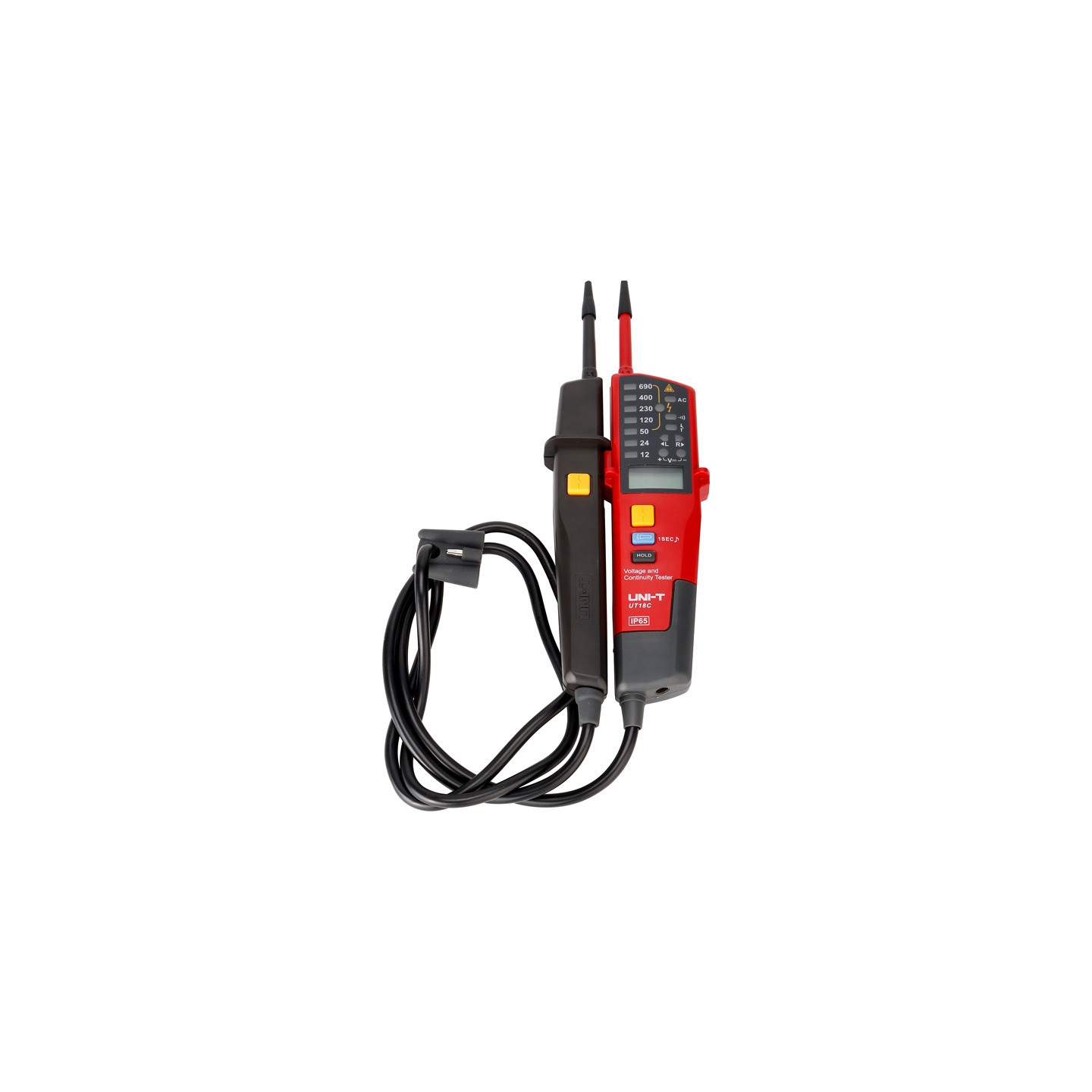

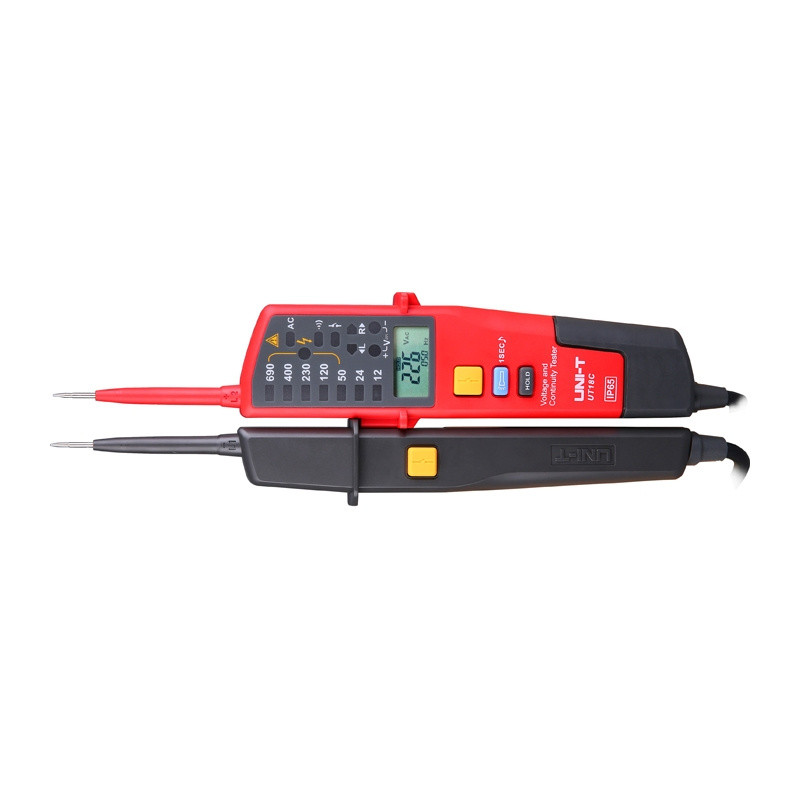

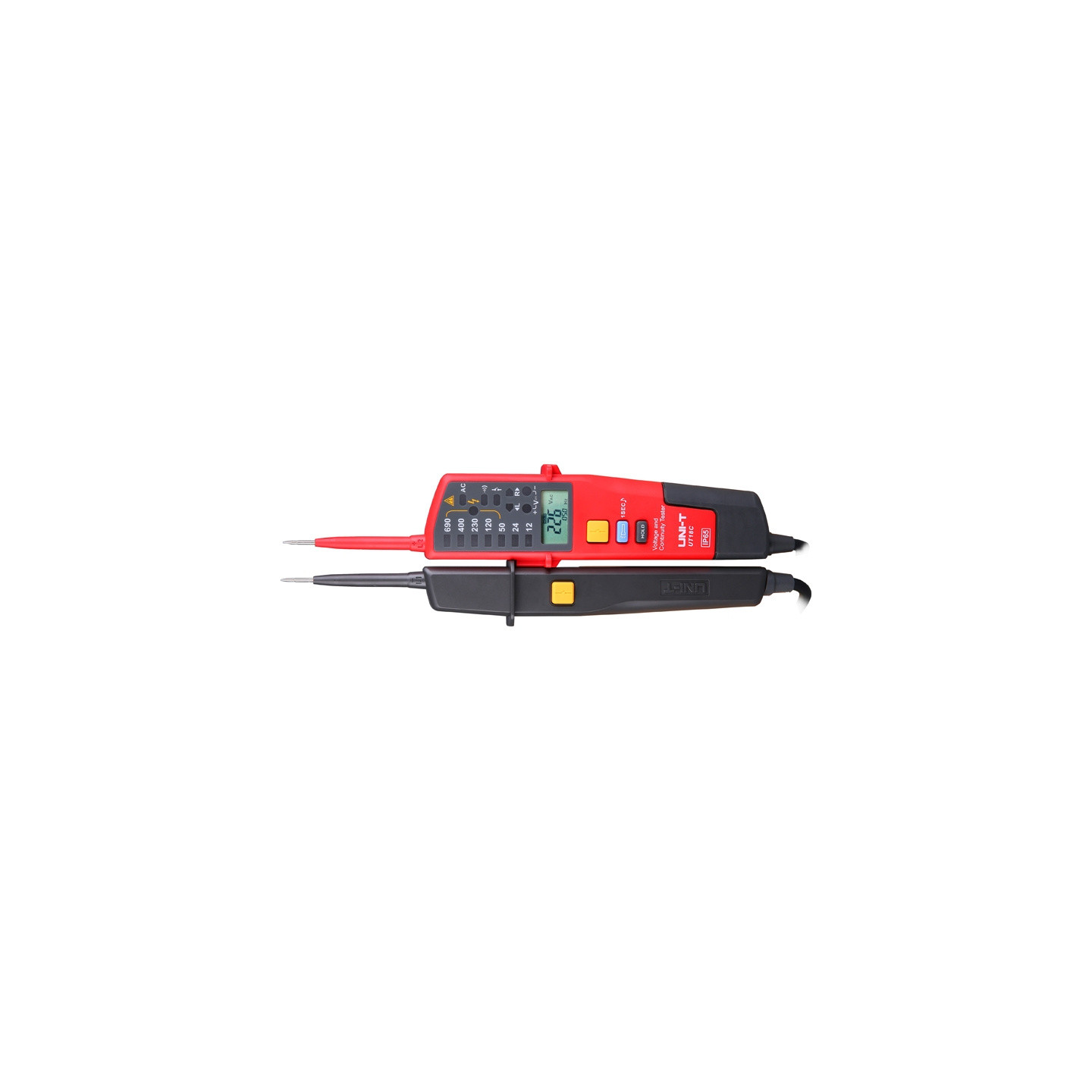

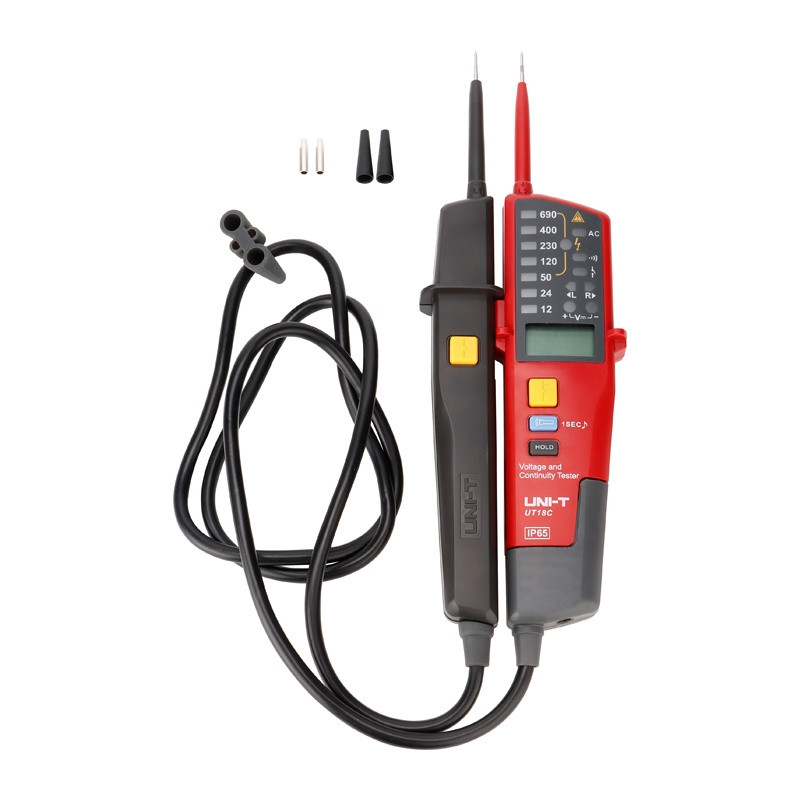

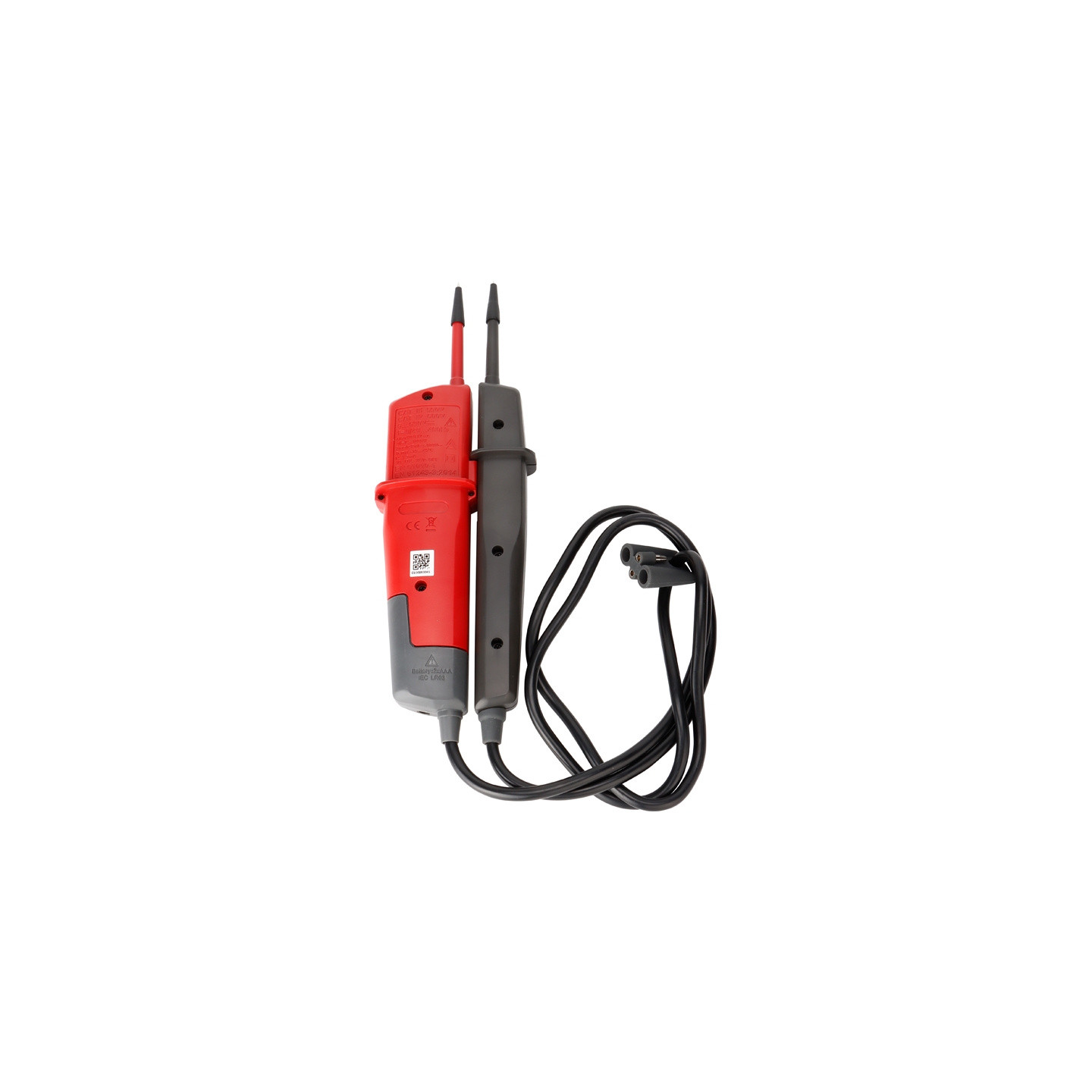

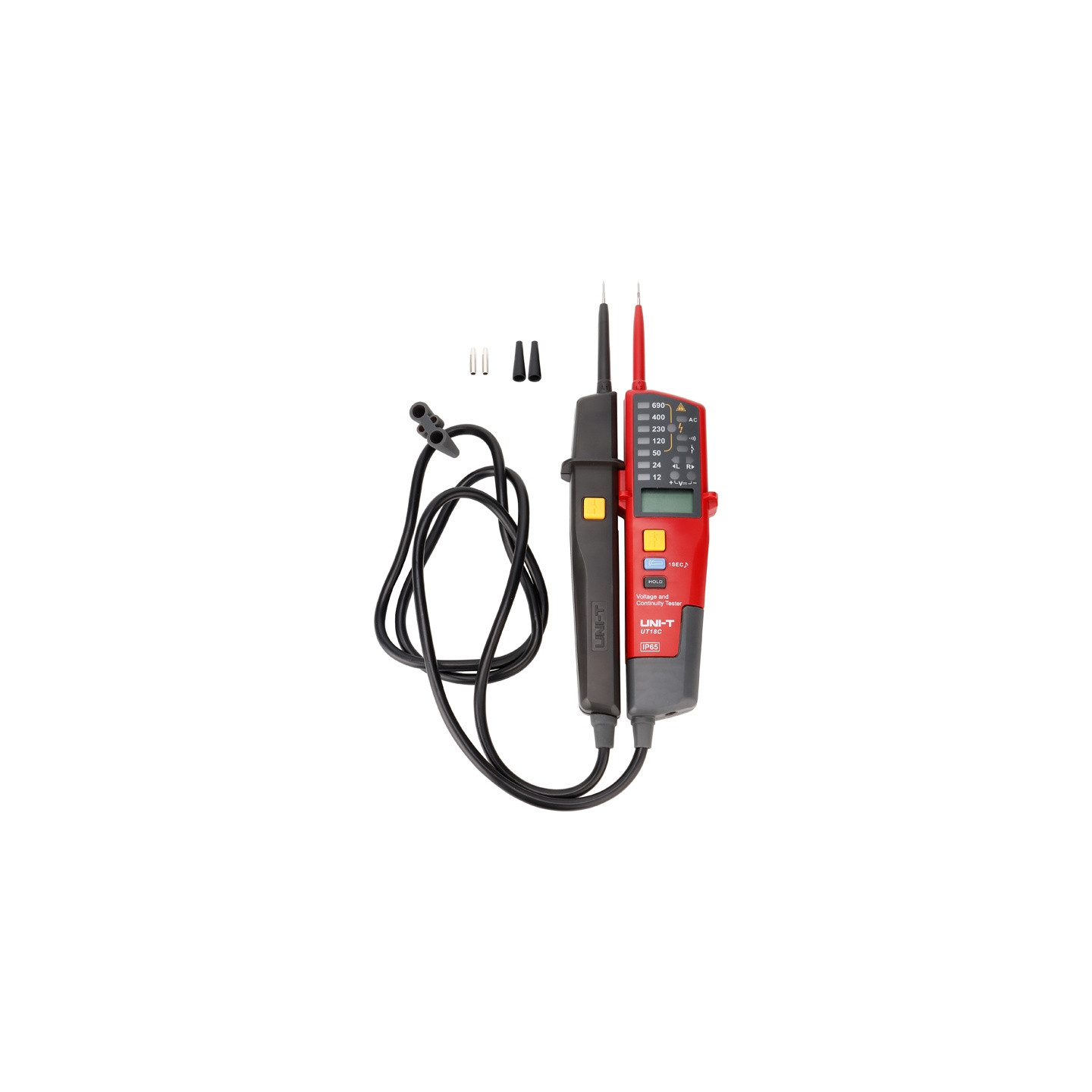

Uni-T UT18C Voltage and Continuity Tester
Uni-T UT18C Voltage and Continuity Tester
Uni-T UT18C Voltage and Continuity Tester
Uni-T UT18C Voltage and Continuity Tester
Atpakaļ
Nākošais
Uni-T UT18C Voltage and Continuity Tester
Uni-T UT18C Voltage and Continuity Tester
Uni-T UT18C Voltage and Continuity Tester
Uni-T UT18C Voltage and Continuity Tester
Norāde 57805-uniw Kategorija Measuring tools Zīmols UNI-T
EAN13 6935750518038

Uni-T UT18C Voltage and Continuity Tester

UNI-T
Jauns
40,77 €
AR PVN
Noliktavā pēdējās preces
Add to Cart

Product Parameters

Gross weight430
Net weight295
HS Code9030310090
Quantity per carton20 pcs.
Box length34,50
Box width15,50
Box height3,50
Facebook X Twitter Pinterest

Uni-T UT18C voltage and continuity tester

The Uni-T UT18C is an advanced voltage and continuity tester designed for diagnosing electrical installations, equipped with a backlit LCD display and LED indicators that ensure quick and easy-to-read results. The device allows for AC/DC voltage measurement up to 690 V, frequency measurement from 40 Hz to 400 Hz, circuit continuity testing with audible and LED indicators, detection of positive and negative polarity, phase sequence testing, and voltage detection with a single probe. The UT18C model also offers an RCD test function, a self-test for operational integrity, and the ability to perform measurements without power in the 100–690 V range. Its rugged design, compliant with IP65 and CAT IV 600 V, a built-in flashlight, silent mode, and compact dimensions make this tester ideal for daily installation and maintenance work.

A hand wearing a light-colored protective glove holds the VoltStick tester, measuring voltage inside an ABB control cabinet.

Included

  • Voltage and continuity tester
  • 2 AAA batteries
  • User manual

Specifications

ManufacturerUni-T
ModelUT18C
Product typeVoltage and continuity tester
Voltage displayLED and LCD
Voltage range12 V (8 V ± 1 V), 24 V (18 V ± 2 V), 50 V (38 V ± 4 V), 120 V (94 V ± 8 V), 230 V (180 V ± 14 V), 400 V (325 V ± 15 V), 690 V (562 V ± 24 V)
LCD displayYes
LCD voltage range6–690 V
LCD frequency range40–400 Hz
LCD voltage accuracy±(1.5% + 5)
LCD frequency accuracy±(3% + 5)
LCD screen dimensions31 × 20 mm
Phase rotation test57–400 V AC, 3-phase, 50–400 Hz
Single-wire L2 voltage detection100–690 V, 50–400 Hz
Continuity test0 Ω – 100 kΩ
Continuity test accuracy+50%
Continuity test indicationBuzzer and LED
RCD test230 V, 50–400 Hz
Polarity detectionPositive and negative
Self-testYes
No-load test100–690 V
Overvoltage protection713–788 V
Silent modeYes
Auto standby<10 μA
FlashlightYes
Low battery indicatorApprox. 2.5 V
Ingress protectionIP65
Measurement categoryCAT IV 600 V
Power supply2 × 1.5 V (R03)
Weight280 g
Dimensions272 × 85 × 31 mm
ColorRed and gray
