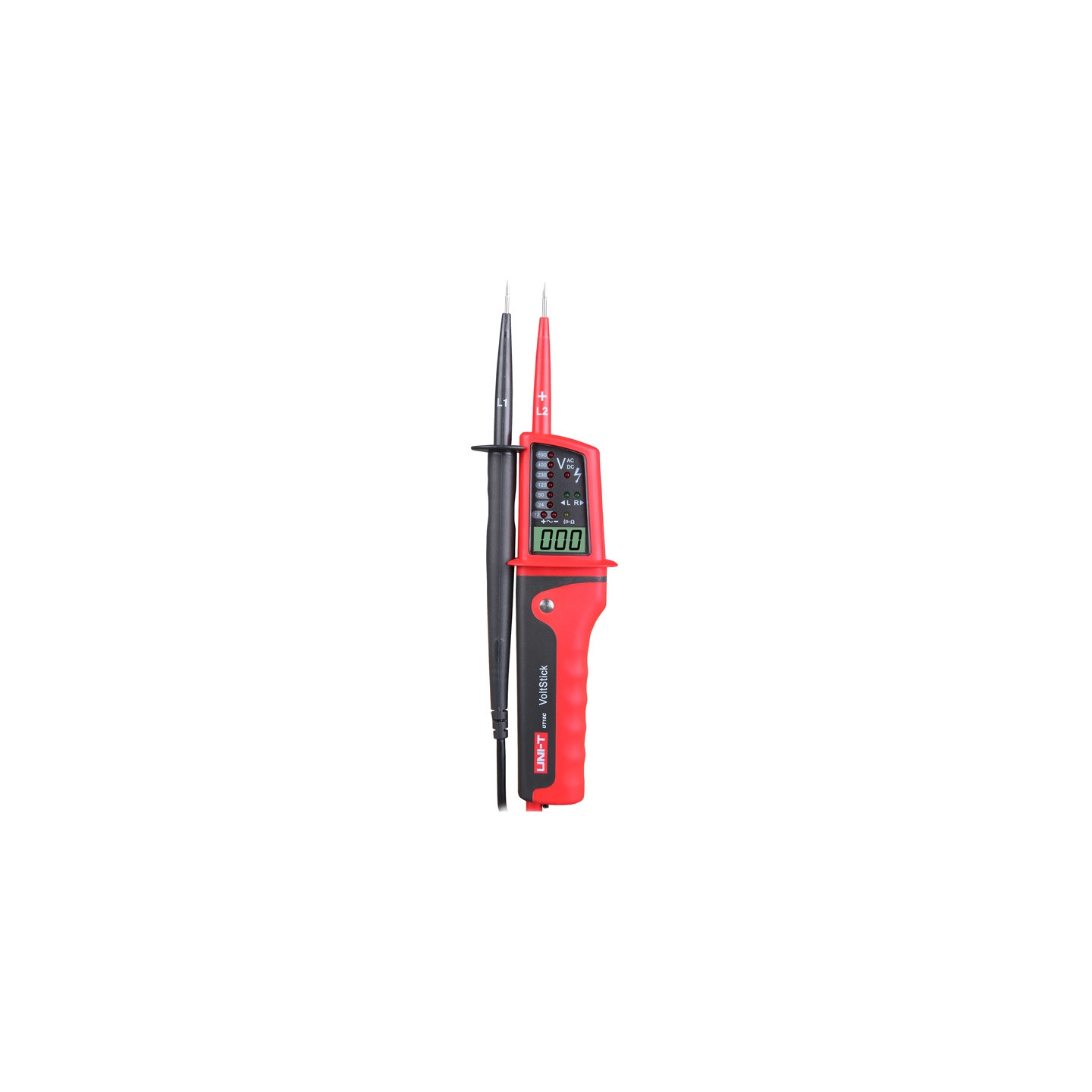

Uni-T UT15C Voltage and Continuity Tester

Name: Uni-T UT15C Voltage and Continuity Tester
Brand: UNI-T
SKU: 57804-uniw
Price: 112.04 EUR
Availability: InStock

Jauns

112,04 €

AR PVN

Ir Noliktavā

Product Parameters

Gross weight	300
Net weight	210
HS Code	9030310090
Quantity per carton	30 pcs.
Box length	33,50
Box width	13,00
Box height	3,00

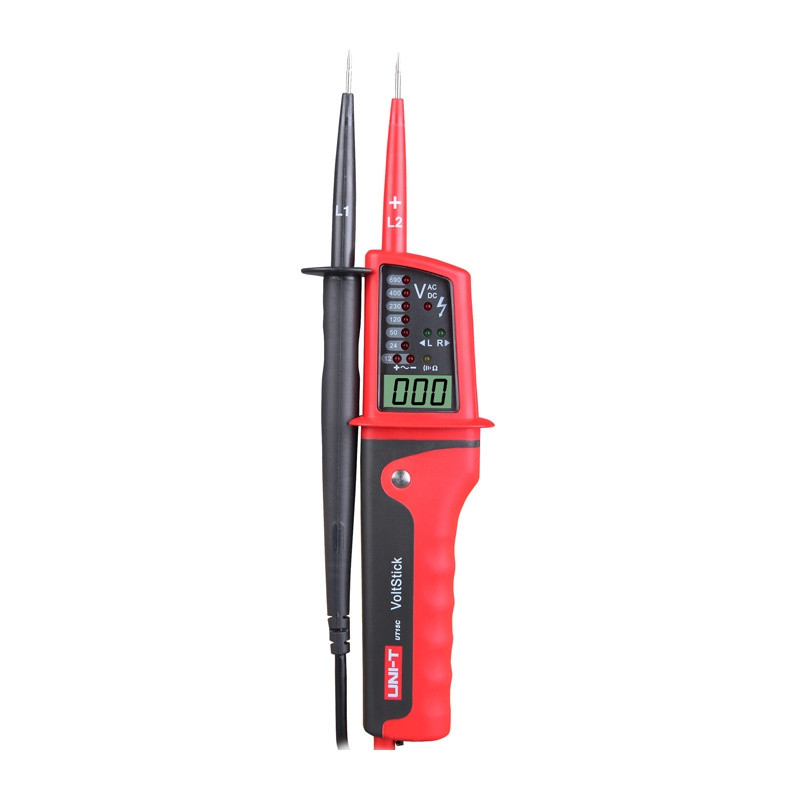

Uni-T UT15C voltage and continuity tester

The Uni-T UT15C is a voltage and continuity tester equipped with both easy-to-read LED indicators and an LCD display, which allows for more accurate readings of AC/DC voltage in the range from 24 V to 690 V. The device supports voltage measurements up to 690 V, automatic range switching, circuit continuity testing with an audible signal and LED, detection of positive and negative polarity, phase rotation testing, and single-probe voltage detection. The built-in flashlight facilitates work in dimly lit areas, and the compact design, measuring 275 × 51 × 30 mm and weighing 210 g, is ideal for daily diagnostics and service work.

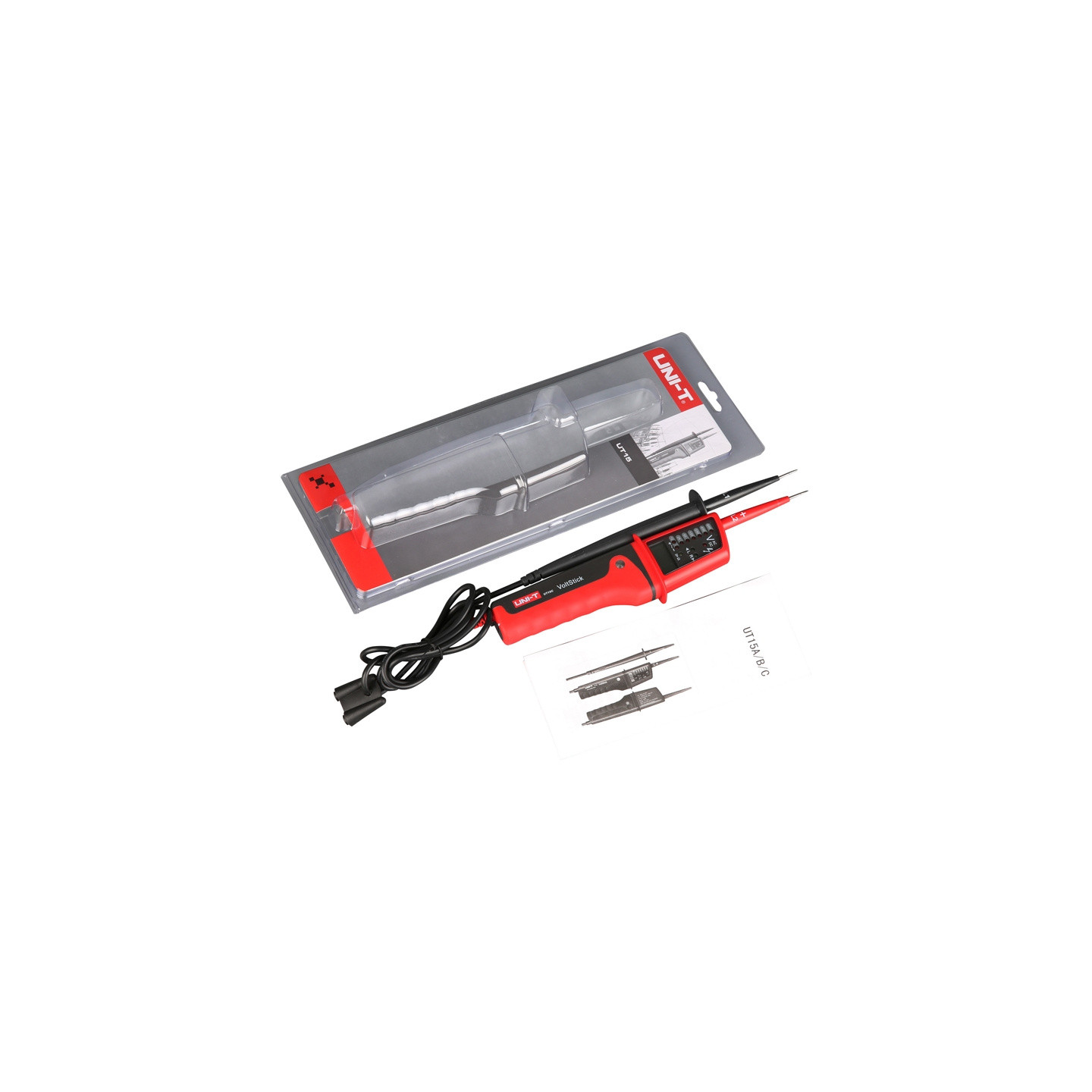

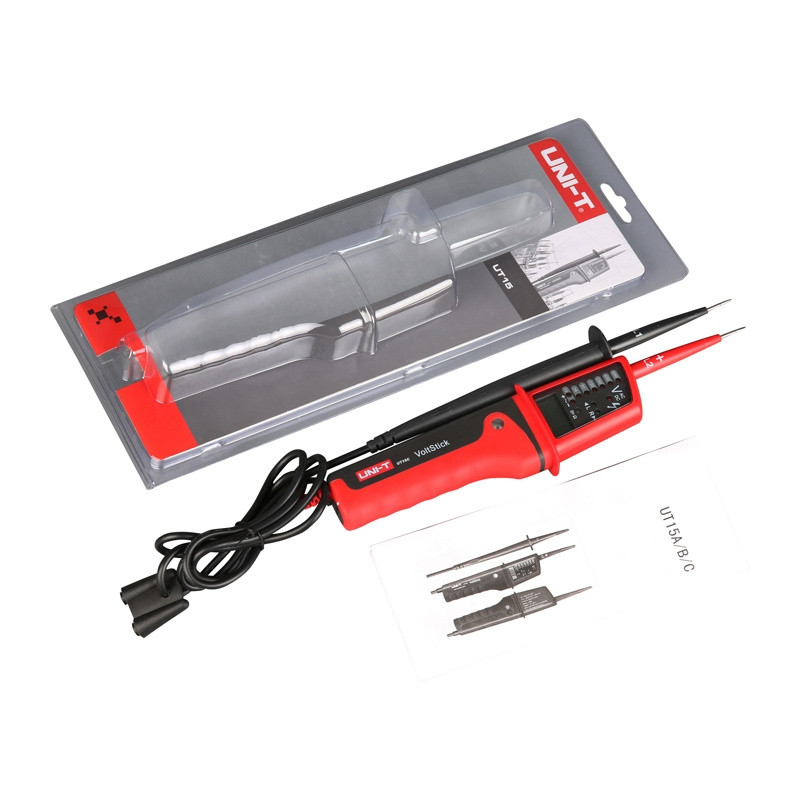

Included

Voltage and continuity tester
2 AAA batteries
User manual

Specifications

Manufacturer	Uni-T
Model	UT15C
Product type	Voltage and continuity tester
AC/DC LED voltage indicator	Yes
LED voltage indicator range	12–690 V
LCD display	Yes
LCD display range	24–690 V
LCD display accuracy	±(3% + 5)
Phase rotation test	Yes
Phase rotation test range	0–690 V, 50–60 Hz
Single-probe voltage detection (L2)	Yes
Single-probe voltage detection range	0–690 V, 50–400 Hz
Circuit continuity test	Yes
Continuity test range	0–100 kΩ
Continuity test indication	Audible signal + LED
Polarity detection	Yes
Type of polarity detection	Positive and negative
Protection class	IP65
Range switching	Automatic
Flashlight	Yes
Battery indicator	Yes
LCD screen dimensions	23 × 12 mm
Power supply	2 × 1.5 V (R03)
Weight	210 g
Dimensions	275 × 51 × 30 mm
Color	Red and gray
