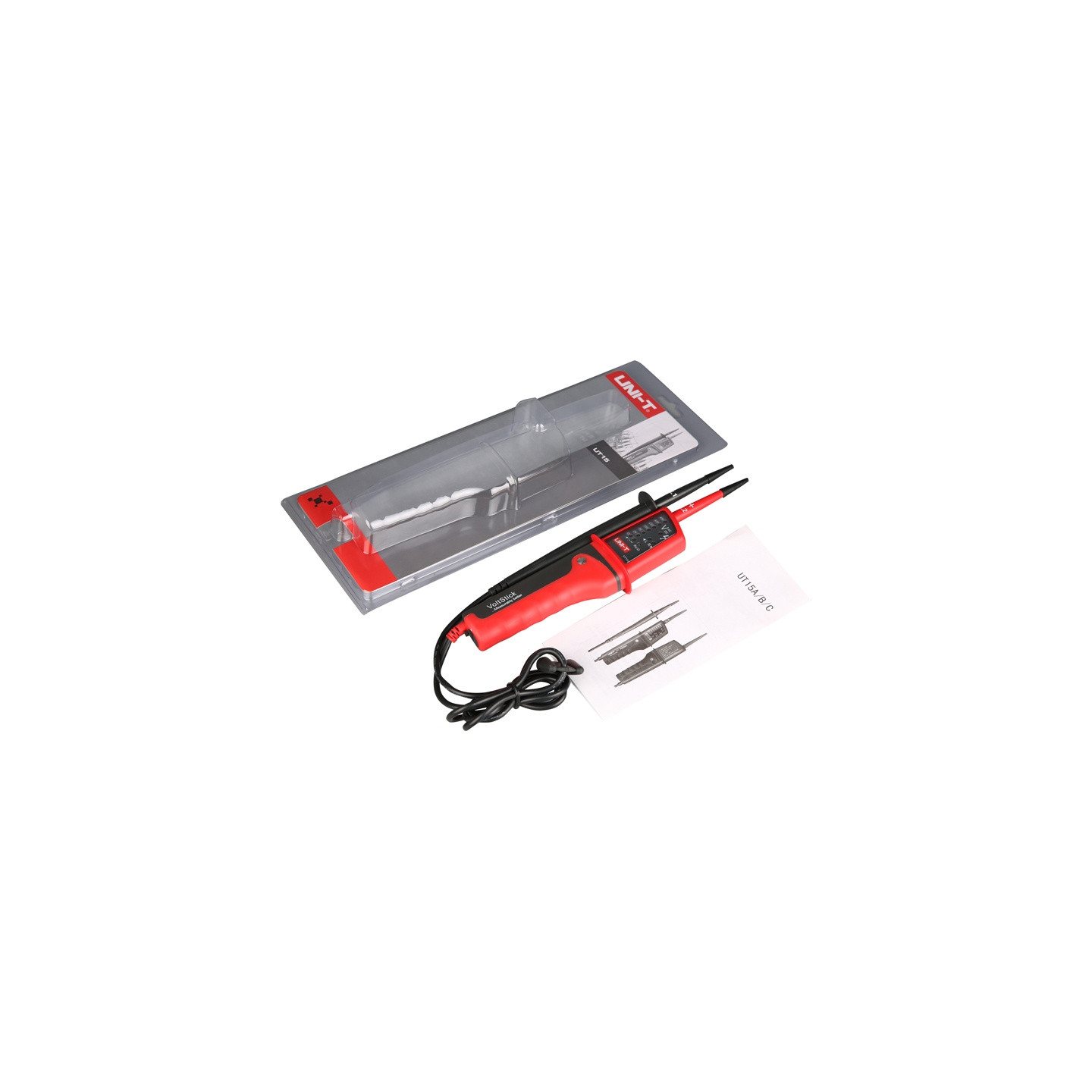

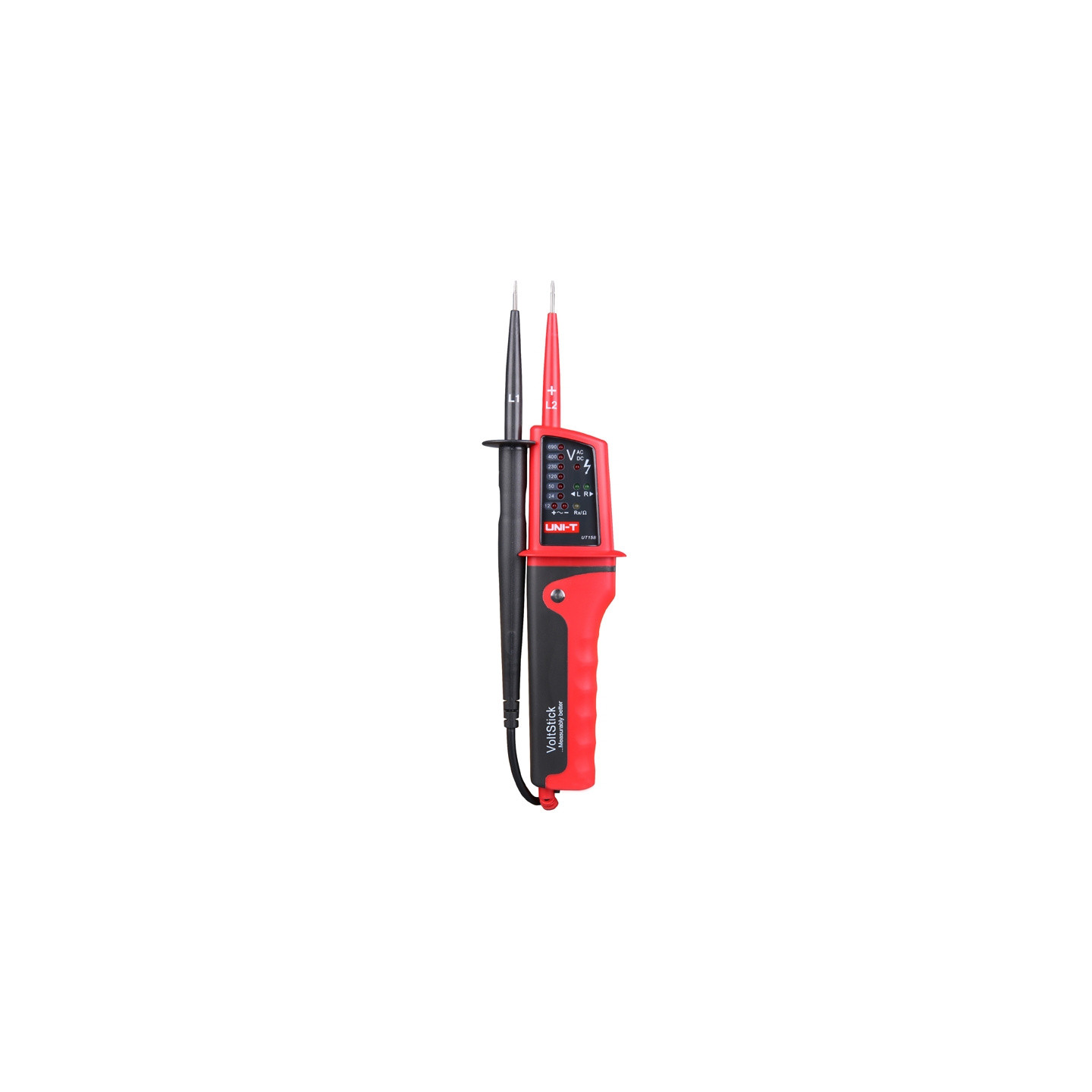

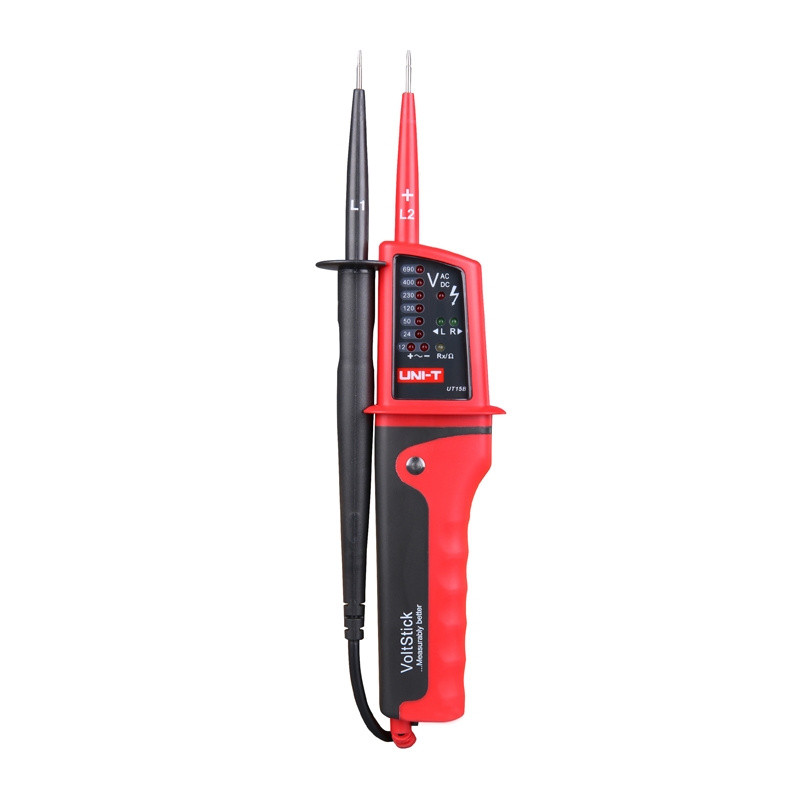

Uni-T UT15B Voltage and Continuity Tester

Name: Uni-T UT15B Voltage and Continuity Tester
Brand: UNI-T
SKU: 57803-uniw
Price: 31.89 EUR
Availability: InStock

Jauns

31,89 €

AR PVN

Ir Noliktavā

Product Parameters

Gross weight	300
Net weight	210
HS Code	9030310090
Quantity per carton	30 pcs.
Box length	33,00
Box width	13,00
Box height	3,50

Uni-T UT15B voltage and continuity tester

The Uni-T UT15B is a rugged voltage and continuity tester designed for quick diagnostics of electrical installations. The device allows for AC/DC voltage measurement in ranges from 12 V to 690 V using easy-to-read LED indicators and automatic range switching, which streamlines daily work. The model also offers a circuit continuity test with an audible signal and LED, detection of positive and negative polarity, phase rotation test, and single-probe voltage detection. The rugged design with an IP65 rating increases durability when working in harsh conditions, and the built-in flashlight makes it easier to take measurements in dimly lit areas.

Specifications

Manufacturer	Uni-T
Model	UT15B
Product type	Voltage and continuity tester
AC/DC LED voltage indicator	Yes
12 V range	0–12 V
24 V range	17 V ± 2 V
50 V range	35 V ± 5 V
120 V range	80 V ± 15 V
230 V range	165 V ± 20 V
400 V range	300 V ± 30 V
690 V range	510 V ± 40 V
Phase rotation test	Yes
Phase rotation test range	0–690 V, 50–60 Hz
Single-probe voltage detection L2	Yes
Single-probe voltage detection range	0–690 V, 50–400 Hz
Circuit continuity test	Yes
Continuity test range	0–100 kΩ
Continuity test indication	Audible signal + LED
Polarity detection	Yes
Type of polarity detection	Positive and negative
Protection class	IP65
Range switching	Automatic
Flashlight	Yes
Battery indicator	Yes
LCD display	No
Power supply	2 × 1.5 V (R03)
Weight	210 g
Dimensions	275 × 51 × 30 mm
Color	Red and gray
