Norāde 52283-uniw Kategorija Measuring tools Zīmols UNI-T
EAN13 6935750537305

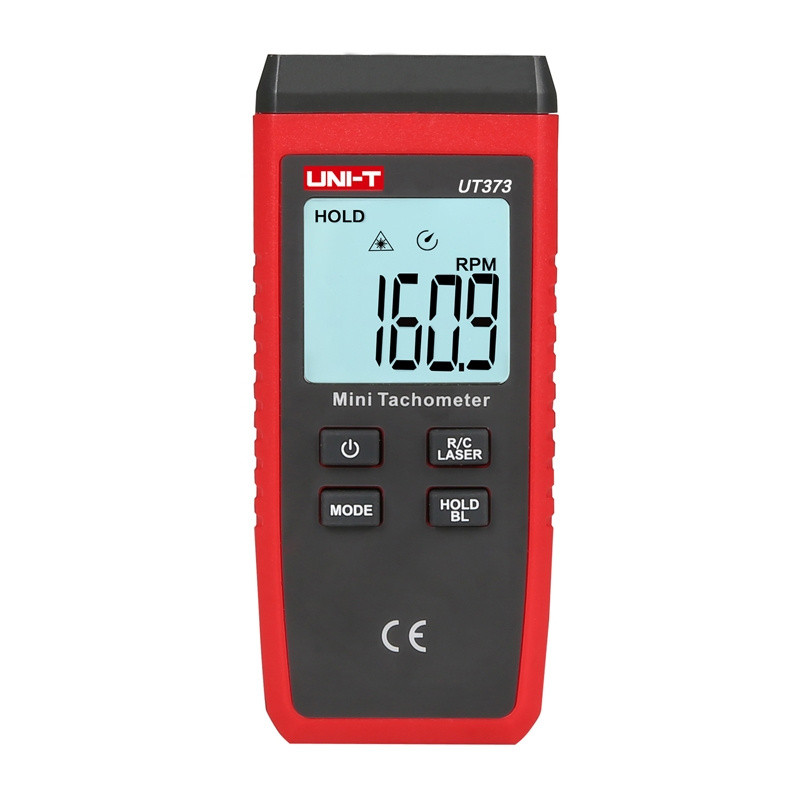

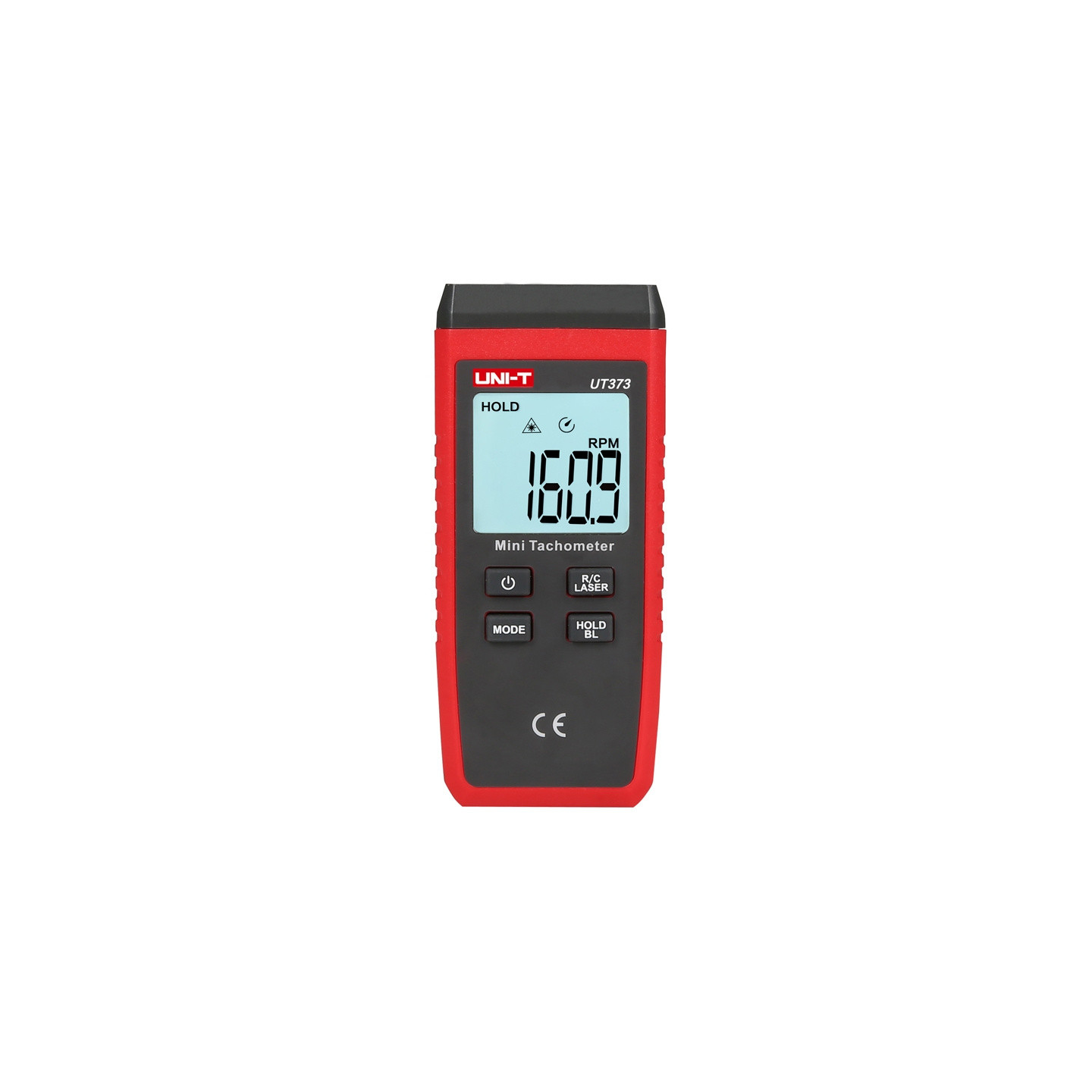

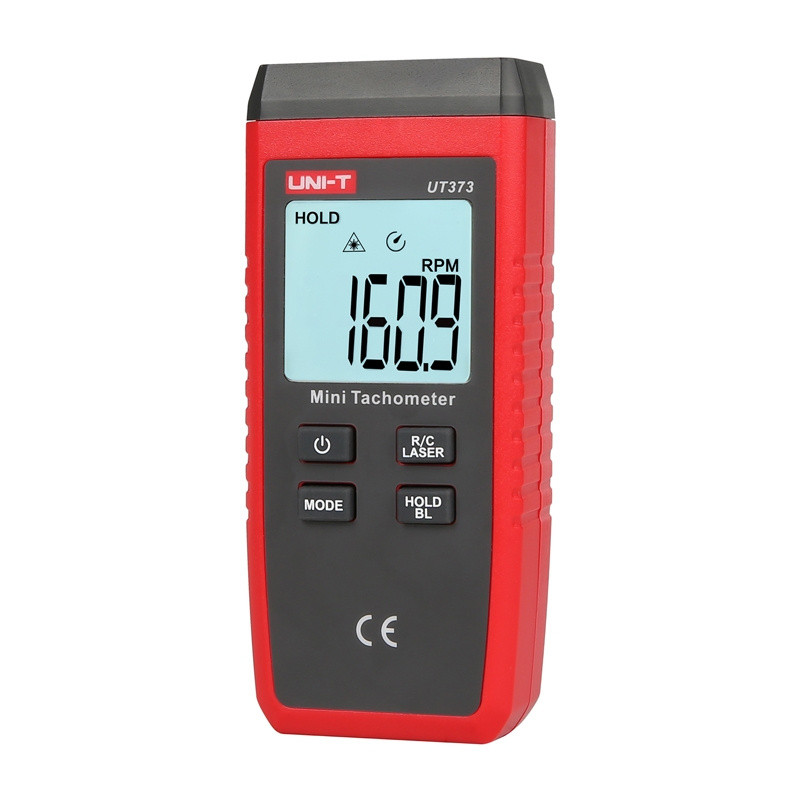

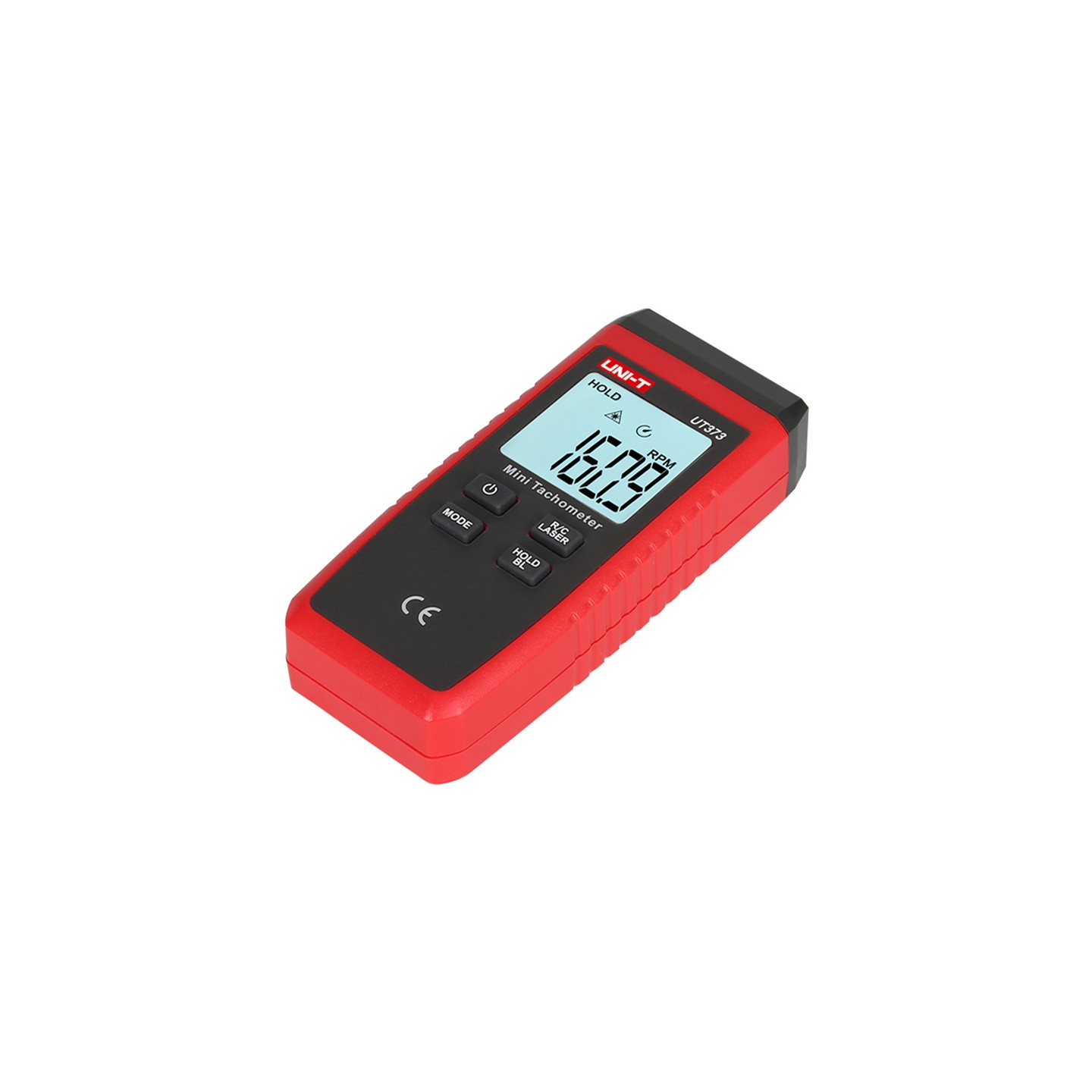

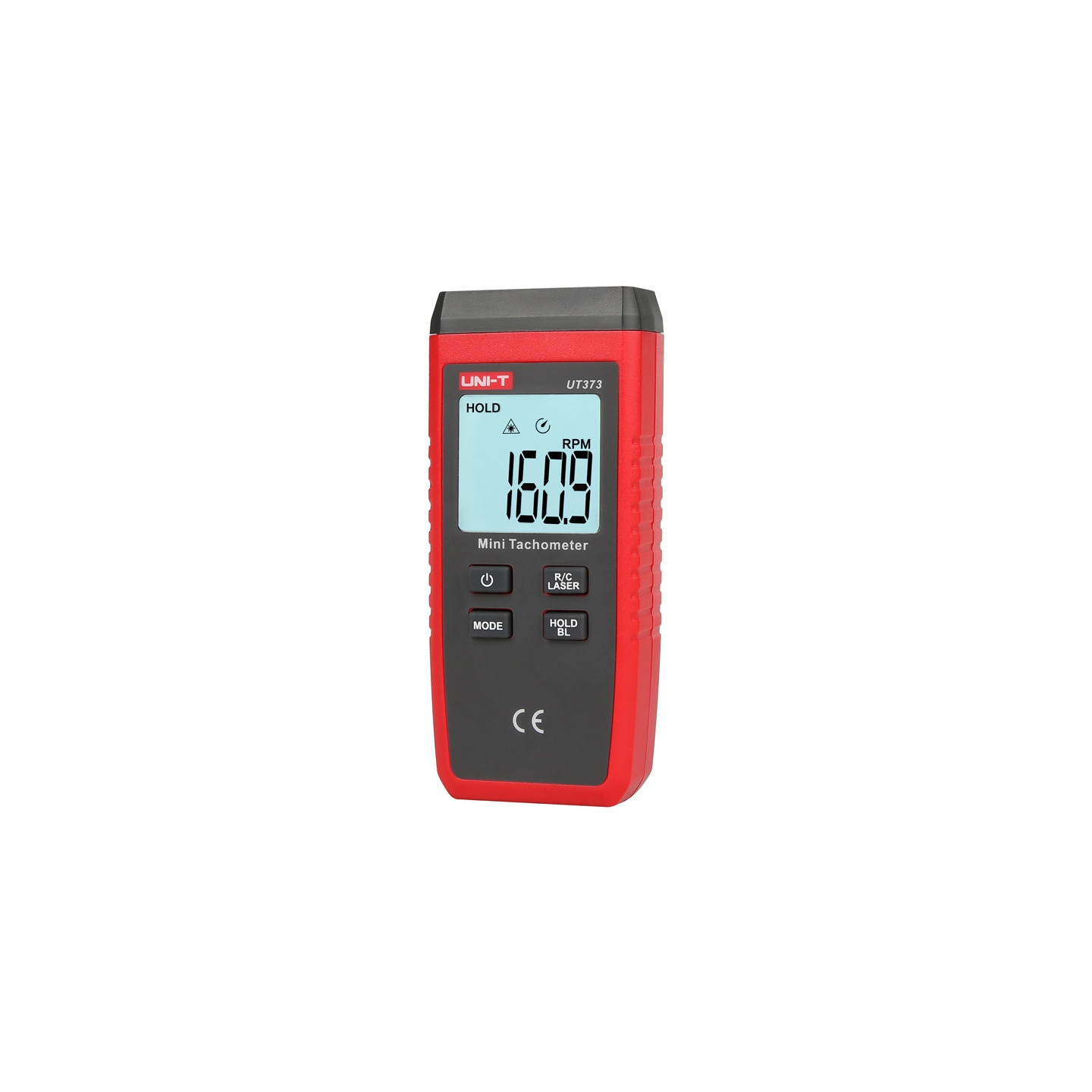

UNI-T UT373 non-contact tachometer

Jauns
20,65 €
AR PVN
Ir Noliktavā

Product Parameters

Gross weight150
Net weight85
Box length14,50
Box width4,50
Box height6,00
HS Code9029203890
Quantity per carton20 pcs.

UNI-T UT373 non-contact tachometer

The UNI-T UT373 non-contact tachometer is a reliable tool for measuring the speed of motors and other machines, providing safe and precise results without the need for contact with a rotating object. The device allows measurement in RPM units, offering automatic range selection and displaying values up to 99999, with an overload ("OL") indication function. The UT373 features Max/Min functions, result retention (Data Hold), active measurement indication (Signal Trigger/Laser-On), as well as a low charge indicator and automatic shutdown. The backlit LCD display ensures readability in all operating conditions, and CE and UKCA certifications confirm high quality and safety standards.

Functionality that makes everyday work easier

The UT373 is designed for quick and easy operation - automatic range selection allows for instant accurate results, and Max/Min functions help monitor extreme values during tests. The data retention function allows you to conveniently save the result on the display, which is extremely useful when analyzing measurements. The tachometer indicates laser activity and low charge status, ensuring uninterrupted operation without unnecessary interruptions.

Robust design and convenience of use

The UNI-T UT373 features a lightweight, ergonomic design and the ruggedness necessary for industrial and workshop environments. Thanks to the backlit LCD display, reading the results is possible even in dimly lit areas. Automatic shutdown of the device after a period of inactivity helps save energy and prolongs battery life. The UT373 is the ideal solution for professionals who value safety, precision and comfort every day.

Included

  • tachometer
  • batteries
  • reflective tape
  • user's manual





Manufacturer UNI-T
Model UT373
Power supply 3 × battery 1.5 V (R03)
Display 5-digit segment code; maximum value 99999
Color Red, gray
Weight 85 g (without battery)
Dimensions 183.8 × 56 × 34 mm
Speed measurement (RPM) 10.0 ~ 9999.9 RPM ( 0.1 RPM)
Speed measurement (RPM) 10000 ~ 99999 RPM ( 1 RPM)
RPM counting 0 ~ 99999 counts ( 1)
Speed ±(0.04%+2); RPM ±1
Automatic range selection Supported
Automatic shutdown Supported
Low battery indicator Built-in
Active laser indication Supported
Data hold function Supported
Maximum and minimum value recording (MAX/MIN) Supported
Switching of speed/counting function Supported
Overload signaling Supported
LCD display backlighting Built-in
Refresh rate 1 s to 7 s (for speeds >120 1 s)
Sensor type Photodiode and laser tube
Measurement distance 50 mm ~ 200 mm
Measurement angle ±30° from the perpendicular axis
Drop test 1 m
