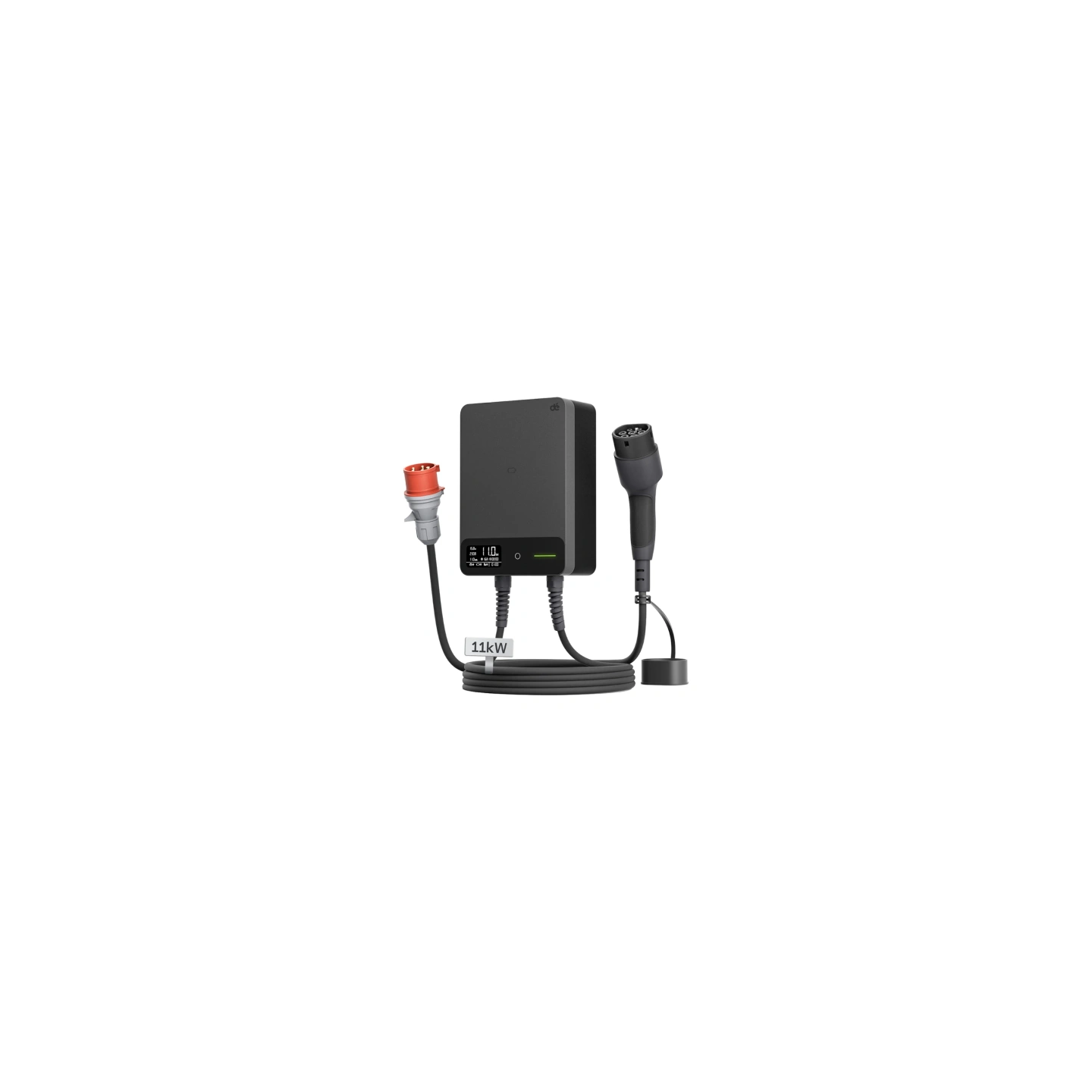

Wallbox dé 11kW 7m cable

DEPOW Wallbox Electric Car Charger

The DEPOW Wallbox electric car charger (11 kW) with a 7-meter cable is a solution designed for convenient charging of electric cars at home, in the garage, or on your property. The device offers up to 11 kW of power, adjustable charging current ranging from 6 to 16 A, and support for both single-phase and three-phase installations, allowing you to tailor its operating parameters to your electrical system’s capabilities. The Wallbox is equipped with an LCD display, Wi-Fi and Bluetooth connectivity, and mobile app features such as remote start and stop of charging, real-time monitoring, scheduling, and charging history.

Current Control and Scheduled Charging

The ability to adjust the current from 6 to 16 A allows you to tailor the load to current conditions and the system’s specifications. The scheduling feature lets you plan charging for a specific time, so your car can be recharged, for example, overnight or whenever it’s most convenient for you. You can monitor real-time information about the device’s operation on the LCD display without having to use your phone every time.

Control via Wi-Fi and Bluetooth App

Wi-Fi and Bluetooth connectivity expand the capabilities for controlling the DEPOW Wallbox via the app. Users can remotely start or stop charging, monitor the charging process in real time, and review the history of previous sessions. RFID support is also available, allowing you to control when the device is activated and restrict unauthorized use of the charger.

Charging Safety Features

The Wallbox is equipped with a 30 mA AC + 6 mA DC RCD and protection systems against, among other things, overload, overvoltage, undervoltage, leakage current, short circuits, and improper grounding. The device also monitors temperature, which helps reduce the risk of operation under unsuitable thermal conditions. The IP54 protection rating for the Wallbox housing and IP55 for the connected Type 2 connector allow the charger to be used both indoors and outdoors.

Designed for everyday use

The DEPOW device operates at 400 V AC and 50 Hz, with a maximum power consumption of 11 kW. The charger complies with the IEC 61851-1 and IEC 62196-2 standards and is CE-certified; its operating temperature range is from -25°C to 55°C. The 7-meter cable allows for easier connection of a car parked near the Wallbox, and LED indicators show power supply status, standby mode, charging status, and any device errors.
