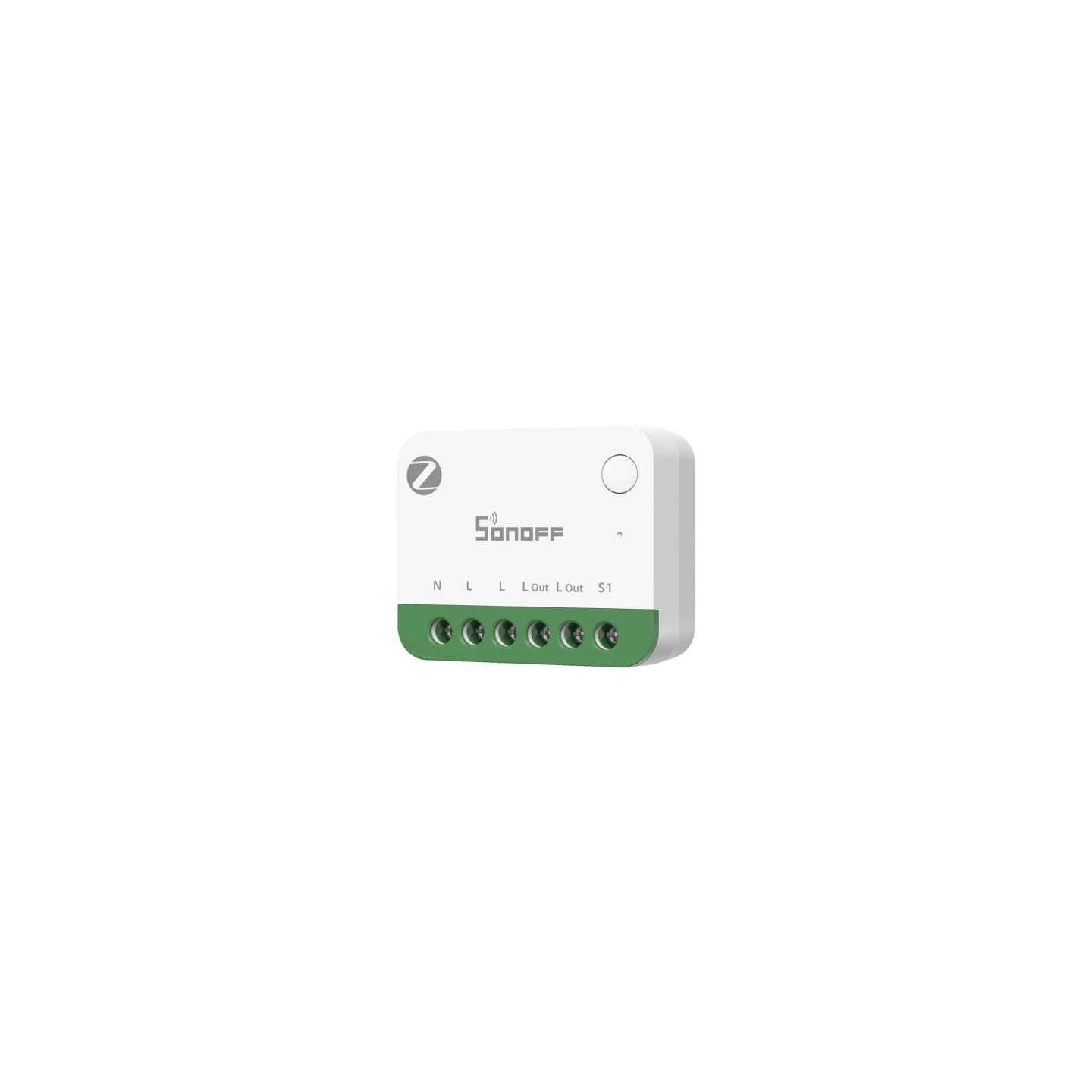

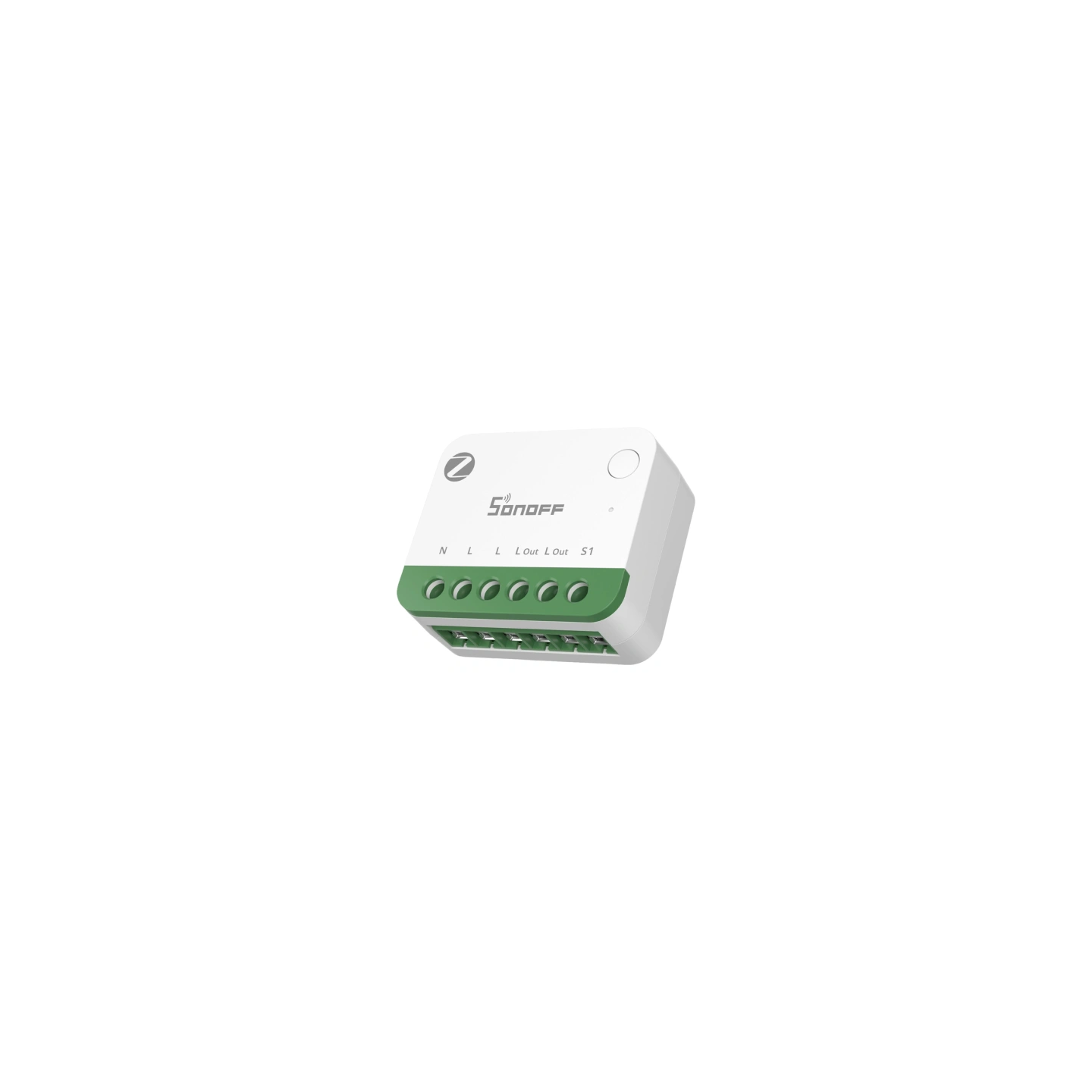

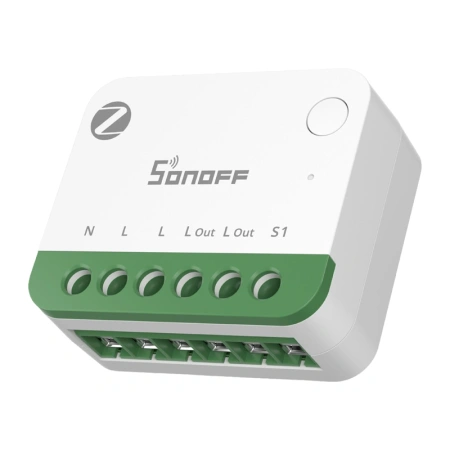

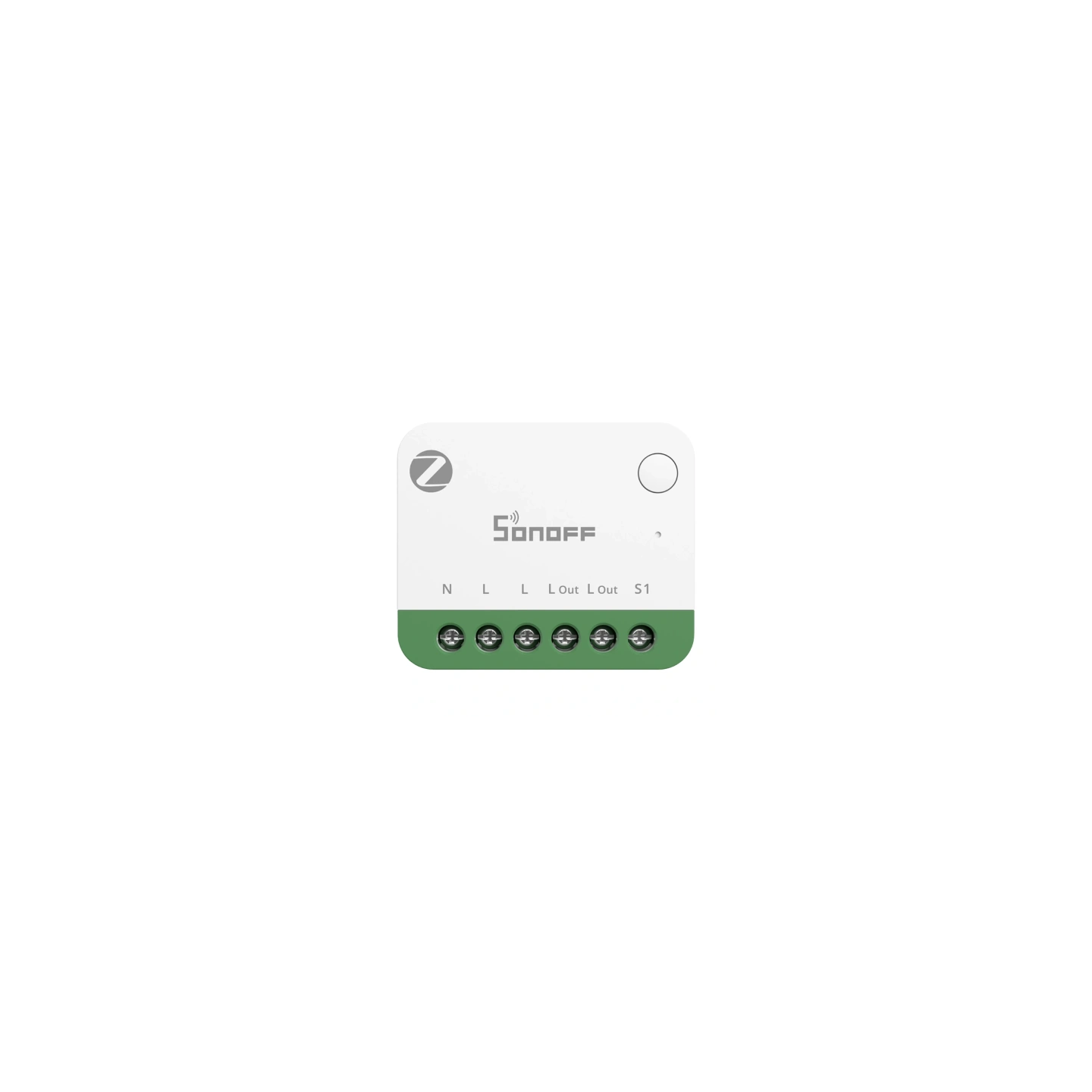

Smart switch SONOFF MINI ONE PM ZigBee

SONOFF MINI ONE PM Zigbee switch

Turn traditional electrical devices into smart home components with the SONOFF MINI ONE PM ZigBee MINI-ZB1GSP. This compact switch allows you to remotely control connected devices, monitor energy consumption, and create automations based on the Zigbee 3.0 standard. With a load capacity of up to 16 A, the device is ideal for controlling lighting, home appliances, or electric heating, and its built-in safety features ensure safe operation of the system.

Smart energy management

Built-in bidirectional energy metering enables real-time monitoring of electricity consumption and energy generated by solar systems. The app displays detailed graphs and data that can be exported, making it easier to analyze energy usage. This solution allows you to better understand the energy consumption of connected devices and manage their operation effectively.

Monitoring energy costs and rates

The SONOFF MINI ONE PM allows you to generate accurate energy consumption reports by setting your own currency and electricity rates. The device also supports time-of-use rates, allowing you to analyze costs across different time periods and more easily identify opportunities to reduce expenses related to the operation of electrical appliances.

Device operation detection and smart notifications

The switch automatically detects the actual operating status of connected devices with a load of up to 16 A, such as coffee makers, ovens, and kettles. The task completion detection feature allows you to receive a notification in the app when a device finishes operating. Additionally, a maintenance reminder feature is available to help you monitor the condition of your appliances.

Advanced electrical protection

The device is equipped with protection against overload, overcurrent, overvoltage, and undervoltage. If the set thresholds are exceeded, the switch can automatically cut off the power supply, protecting connected devices from unwanted situations. These features support the safe use of the electrical system and help extend the lifespan of connected devices.

Zigbee 3.0 and smart home expansion

Support for the Zigbee 3.0 standard ensures easy integration with smart home systems and enables the creation of automated scenes. The switch can also function as a Zigbee router, relaying the signal and helping to increase the range and stability of the entire network. This allows it to work with other Zigbee devices as part of an expanded automation system.

Wide range of applications in everyday installations

The SONOFF MINI ONE PM is ideal for many home applications. It can be used for smart lighting control, upgrading traditional outlets, monitoring the energy consumption of home appliances, and controlling electric heating. Its compact design allows for concealed indoor installation, enabling the device to be discreetly integrated into existing wiring.

Compact design tailored for installation

The small housing, measuring 39.5 × 33 × 16.8 mm, facilitates installation in confined spaces. The switch weighs just 27.3 g and is made of PC plastic. The device is designed for indoor installation, operates at temperatures ranging from -10°C to 40°C, and supports copper wires with cross-sections ranging from 0.75 mm² to 2.5 mm². The maximum load is 16 A at a voltage of 100–240 V.

Included in the set

• SONOFF MINI ONE PM switch
• User manual
