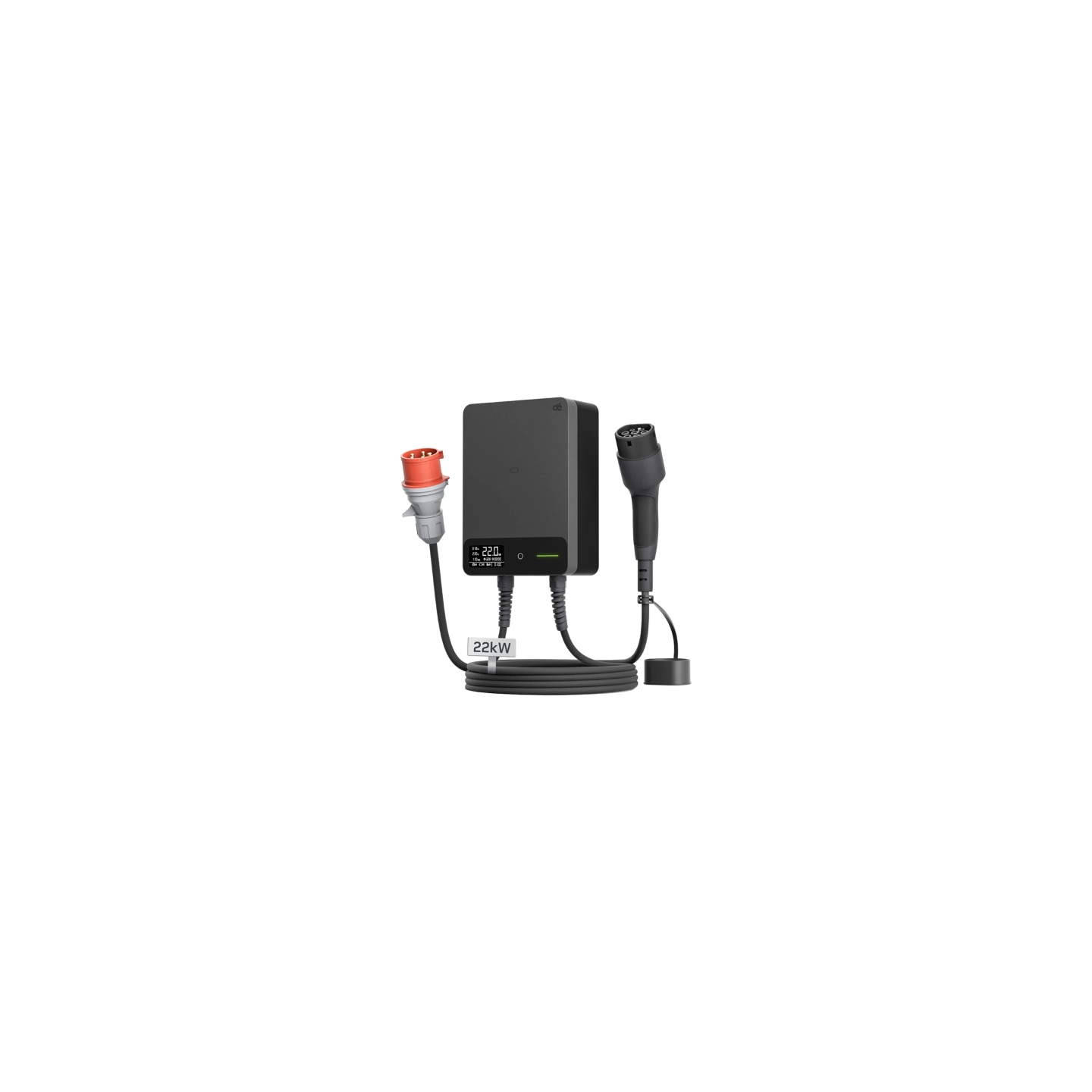

Wallbox dé 22kW with 15m cable

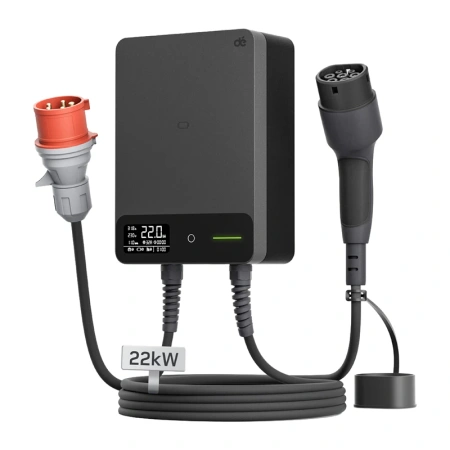

DEPOW Wallbox Electric Vehicle Charger

The DEPOW 22 kW Wallbox electric vehicle charger with a 15-meter cable is designed for charging electric vehicles equipped with a Type 2 connector. The device offers a maximum charging power of 22 kW, supports 1- and 3-phase installations, and provides a wide range of current adjustment from 6 to 32 A via the app. Wi-Fi and Bluetooth connectivity, an LCD display, and a charging schedule feature allow you to conveniently control the wallbox’s operation and tailor it to your daily car usage.

Parameter Adjustment and Charging Scheduling

The current adjustment range from 6 to 32 A allows you to tailor charging to the capacity of your electrical installation and your current needs. You can set the appropriate value using the app, which also lets you remotely start and stop charging and monitor the charging process in real time. A charging history and a daily schedule are also available, allowing you to plan the wallbox’s operation for specific hours.

Safety Features and Temperature Control

The wallbox is equipped with a Type B RCD (AC 30 mA + DC 6 mA) and a range of safety features that monitor the device’s operation during charging. Among other things, the system protects against overload, overvoltage, undervoltage, leakage current, and short circuits, and additionally monitors grounding and temperature. LED indicators signal power, standby mode, charging, and errors, allowing the user to quickly check the device’s current status.

For garages and outdoor use

The wallbox housing has an IP54 protection rating; when a Type 2 connector is attached, the declared protection rating is IP55. The device is designed to operate at temperatures ranging from -25°C to 55°C and can be used both indoors and in appropriately prepared outdoor locations. The control housing, measuring approximately 297 × 214 × 105 mm, allows for convenient wall mounting, and the 15-meter cable provides flexibility when connecting the car.
