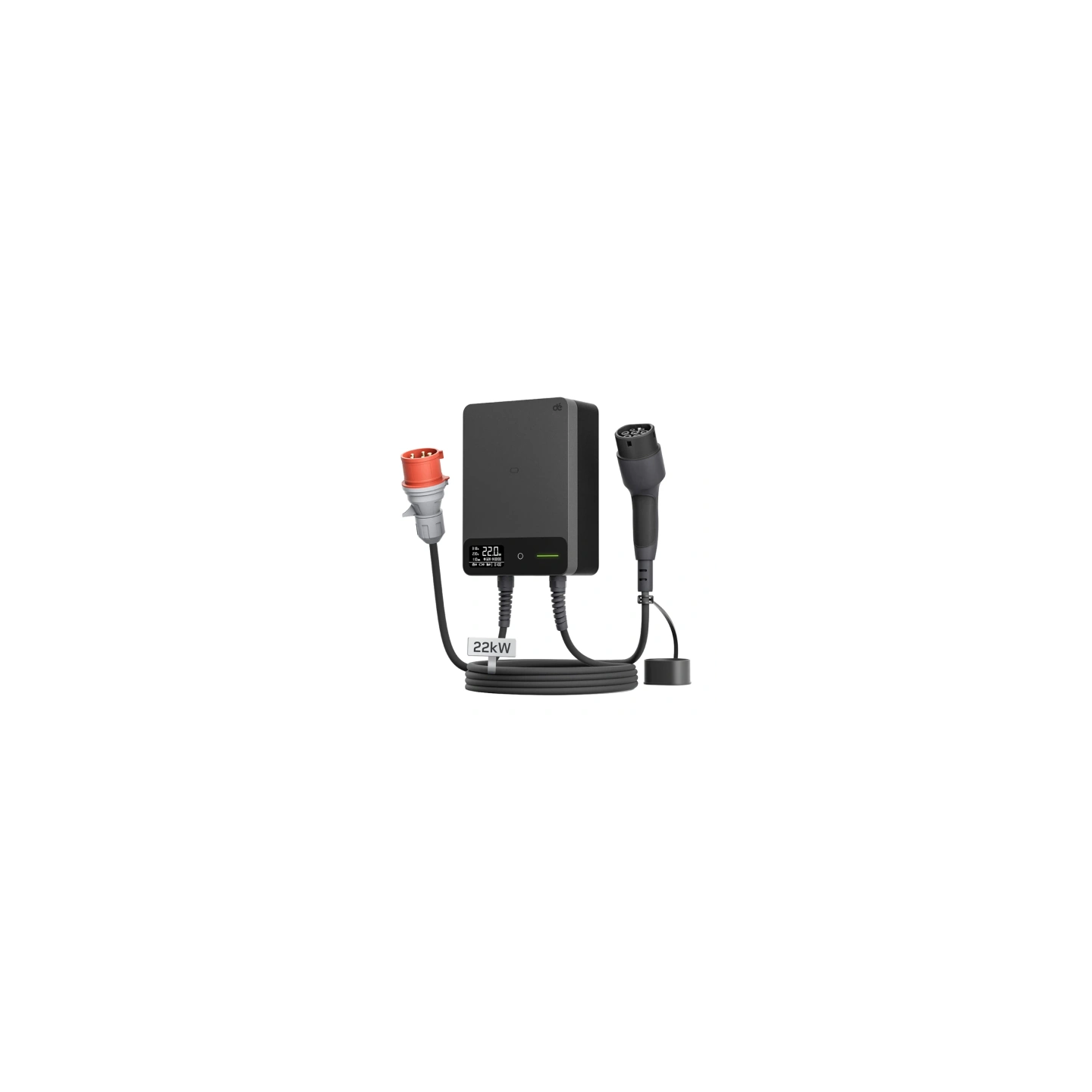

Wallbox dé 22kW with 10m cable

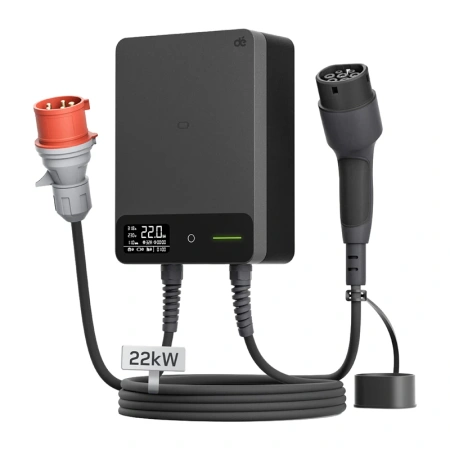

DEPOW Wallbox Wall-Mounted EV Charger

The DEPOW 22 kW Wallbox wall-mounted EV charger with a 10-meter cable is designed for charging electric vehicles equipped with a Type 2 connector. The device offers a maximum charging power of 22 kW, supports 1- and 3-phase installations, and features a wide range of current adjustment from 6 to 32 A via the app. Wi-Fi and Bluetooth connectivity, an LCD display, and a charging schedule feature allow you to conveniently control the wallbox’s operation and tailor it to your daily driving habits.

Parameter Adjustment and Charging Scheduling

The current adjustment range from 6 to 32 A allows you to tailor charging to the capabilities of your electrical installation and your current needs. You can set the appropriate value using the app, which also lets you remotely start and stop charging and monitor the charging process in real time. A charging history and a daily schedule are also available, allowing you to plan the wallbox’s operation for specific hours.

Safety Features and Temperature Control

The wallbox is equipped with a Type B RCD (AC 30 mA + DC 6 mA) and a range of safety features that monitor the device’s operation during charging. Among other things, the system protects against overloads, overvoltage and undervoltage, ground fault current, and short circuits, while also monitoring grounding and temperature. LED indicators signal power, standby mode, charging, and errors, allowing the user to quickly check the device’s current status.

For garages and outdoor use

The wallbox housing has an IP54 protection rating; when a Type 2 connector is attached, the declared protection rating is IP55. The device is designed to operate at temperatures ranging from -25°C to 55°C and can be used both indoors and in appropriately prepared outdoor locations. The control housing, measuring approximately 297 × 214 × 105 mm, allows for convenient wall mounting, and the 10-meter cable provides freedom when connecting the car.
