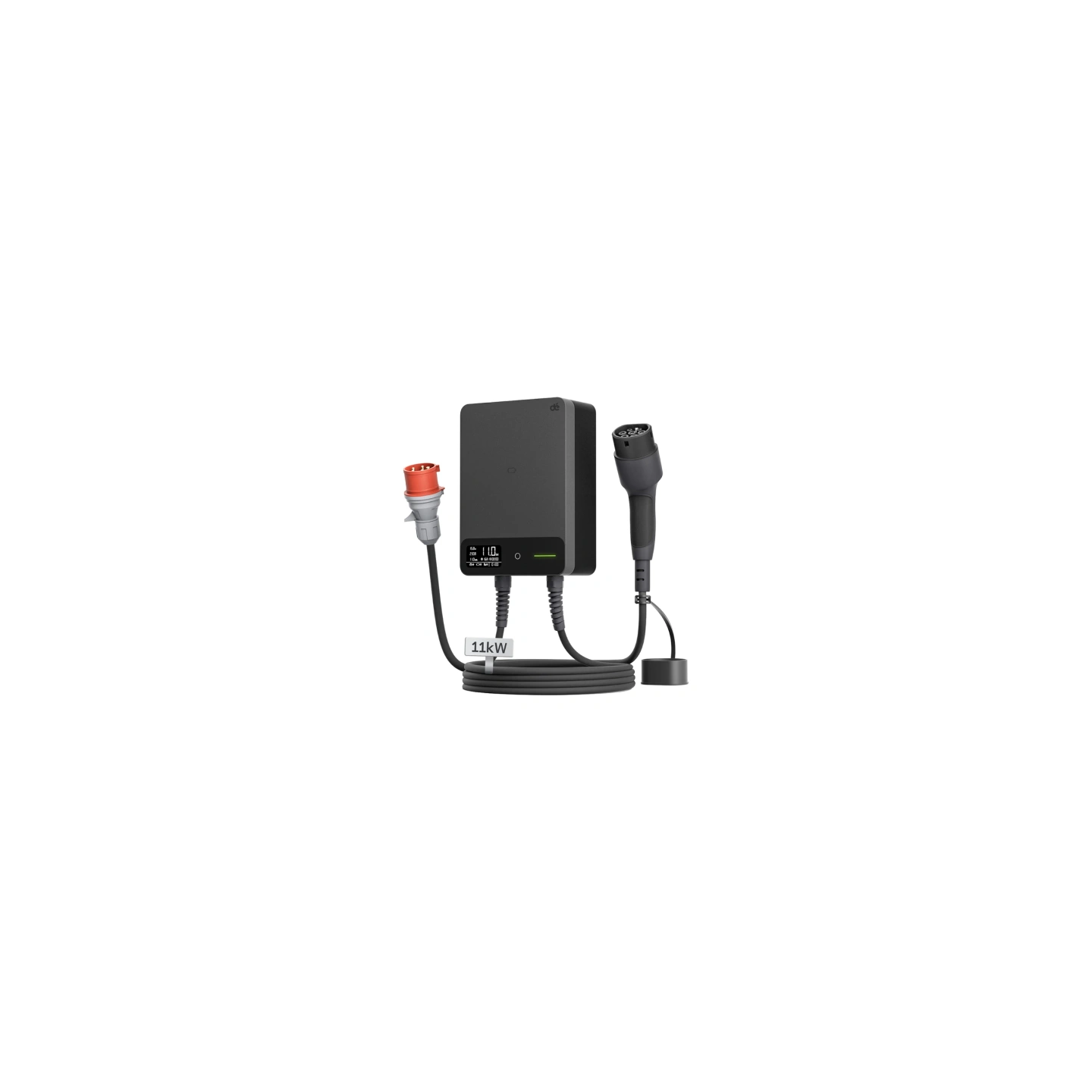

Wallbox dé 11kW with 10m cable

DEPOW Wallbox Wall-Mounted EV Charger

The DEPOW Wallbox 11 kW wall-mounted EV charger with a 10-meter cable is a solution designed for convenient charging of electric vehicles at home, in the garage, or on your property. The device offers up to 11 kW of power, adjustable charging current ranging from 6 to 16 A, and support for both single-phase and three-phase installations, allowing you to tailor its operating parameters to the capabilities of your electrical system. The Wallbox is equipped with an LCD display, Wi-Fi and Bluetooth connectivity, and mobile app features such as remote start and stop of charging, real-time monitoring, scheduling, and charging history.

Current Control and Scheduled Charging

The ability to adjust the current from 6 to 16 A allows you to tailor the load to current conditions and system parameters. The scheduling feature allows you to plan charging for a specific time, so your car can be charged, for example, overnight or whenever it’s most convenient for you. You can monitor real-time information about the device’s operation on the LCD display, without having to use your phone every time.

Control via Wi-Fi and Bluetooth App

Wi-Fi and Bluetooth connectivity expand the possibilities for controlling the DEPOW Wallbox using the app. Users can remotely start or stop charging, monitor the charging process in real time, and review the history of previous sessions. RFID support is also available, allowing you to control when the device starts and restrict access to the charger by unauthorized users.

Charging Safety Features

The Wallbox is equipped with an RCD (residual current device) rated at 30 mA AC + 6 mA DC, as well as protection systems against, among other things, overloads, overvoltage, undervoltage, leakage current, short circuits, and improper grounding. The device also monitors temperature, which helps reduce the risk of operation under unsuitable thermal conditions. The IP54 protection rating for the Wallbox housing and IP55 for the connected Type 2 connector allow the charger to be used both indoors and outdoors.

Designed for everyday use

The DEPOW device operates at 400 V AC and 50 Hz, with a maximum power consumption of 11 kW. The charger complies with the IEC 61851-1 and IEC 62196-2 standards and is CE-certified, with an operating temperature range of -25°C to 55°C. The 10-meter cable allows for easier connection of a car parked near the Wallbox, and LED indicators show power supply status, standby mode, charging status, and any device errors.
