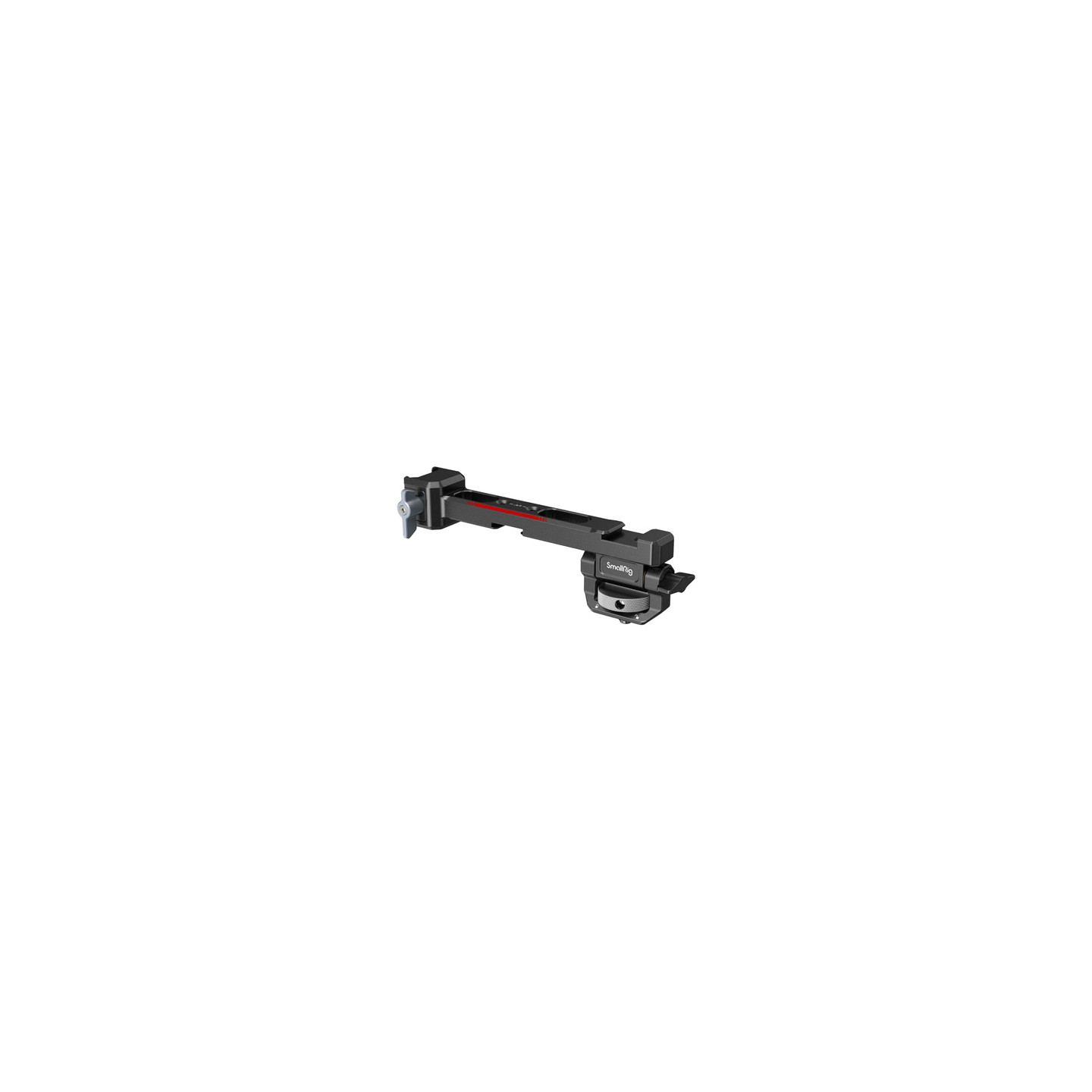

SMALLRIG 3026B Monitor Mount

SMALLRIG 3026B Monitor Mount

The SMALLRIG 3026B is a monitor mount designed for the DJI RS 2, RSC 2, RS 3, RS 3 Pro, RS 3 Mini, RS 4, RS 4 Pro, RS 4 Mini, and RS 5 gimbals. It is compatible with 5- and 7-inch monitors, and its maximum load capacity is 1.5 kg. A NATO quick-release mount with a safety button to prevent accidental release allows you to quickly attach the mount to the gimbal, while a knob lets you adjust the monitor’s angle up to 170°. Additional 1/4"-20 threaded holes and cold shoe mounts also allow you to attach an action camera, audio receiver, microphone, LED light, or video transmitter.

Quick Monitor Angle Adjustment

The built-in thumb knob allows you to conveniently adjust the monitor’s tilt angle without using any additional tools. The adjustment range of up to 170° makes it easy to adjust the screen’s position to match the gimbal’s movement and the camera’s current position. This ensures that the frame preview remains clearly visible whether shooting from a low angle or during standard camera operation.

NATO Mount and Anti-Rotation Lock

The SMALLRIG 3026B attaches to the side of a compatible gimbal using a NATO quick-release mount, allowing you to quickly mount or remove the entire mount. An anti-drop button reduces the risk of the mount accidentally sliding off the rail, increasing the safety of the mounted equipment. An additional anti-rotation pin helps maintain the correct screen orientation, ensuring the monitor remains stable even during dynamic gimbal movements.

Additional Mounting Points

The mount features two 1/4"-20 threaded holes that can be used to attach an additional arm, an action camera, or a video transmitter. There are also cold shoe mounts on the top and bottom of the mount, designed for use with, among other things, an audio receiver, a microphone, or a small LED light. This solution allows you to expand the setup with additional accessories and tailor the gimbal’s configuration to the nature of the shoot.

Compact Design

The mount is made of aluminum, stainless steel, brass, and silicone, which ensures a sturdy construction while weighing approximately 125 g. Its dimensions are 152.6 × 54.8 × 38 mm, so it doesn’t take up much space in a camera operator’s kit.

Included

• SMALLRIG 3026B Monitor Mount
• Allen wrench
