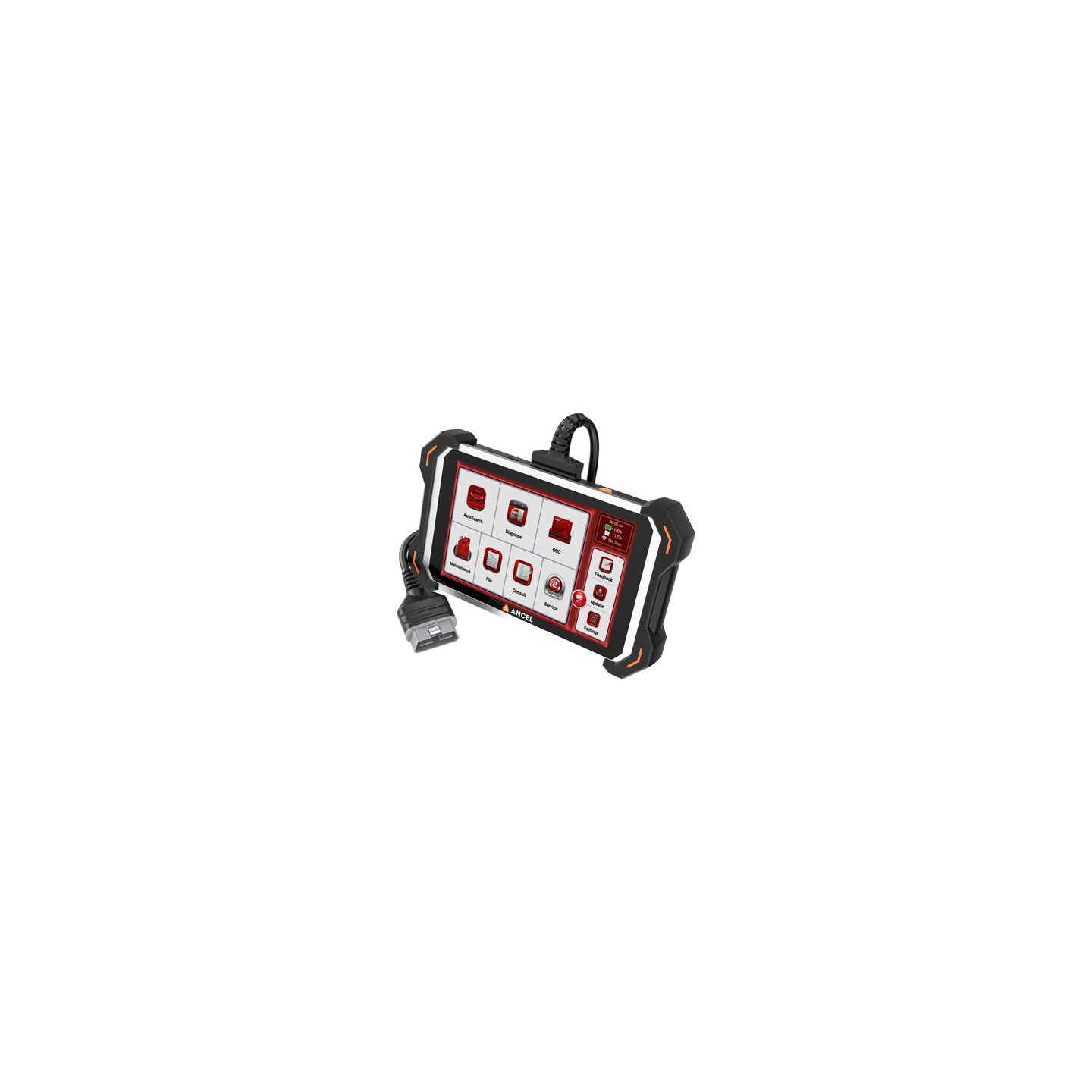

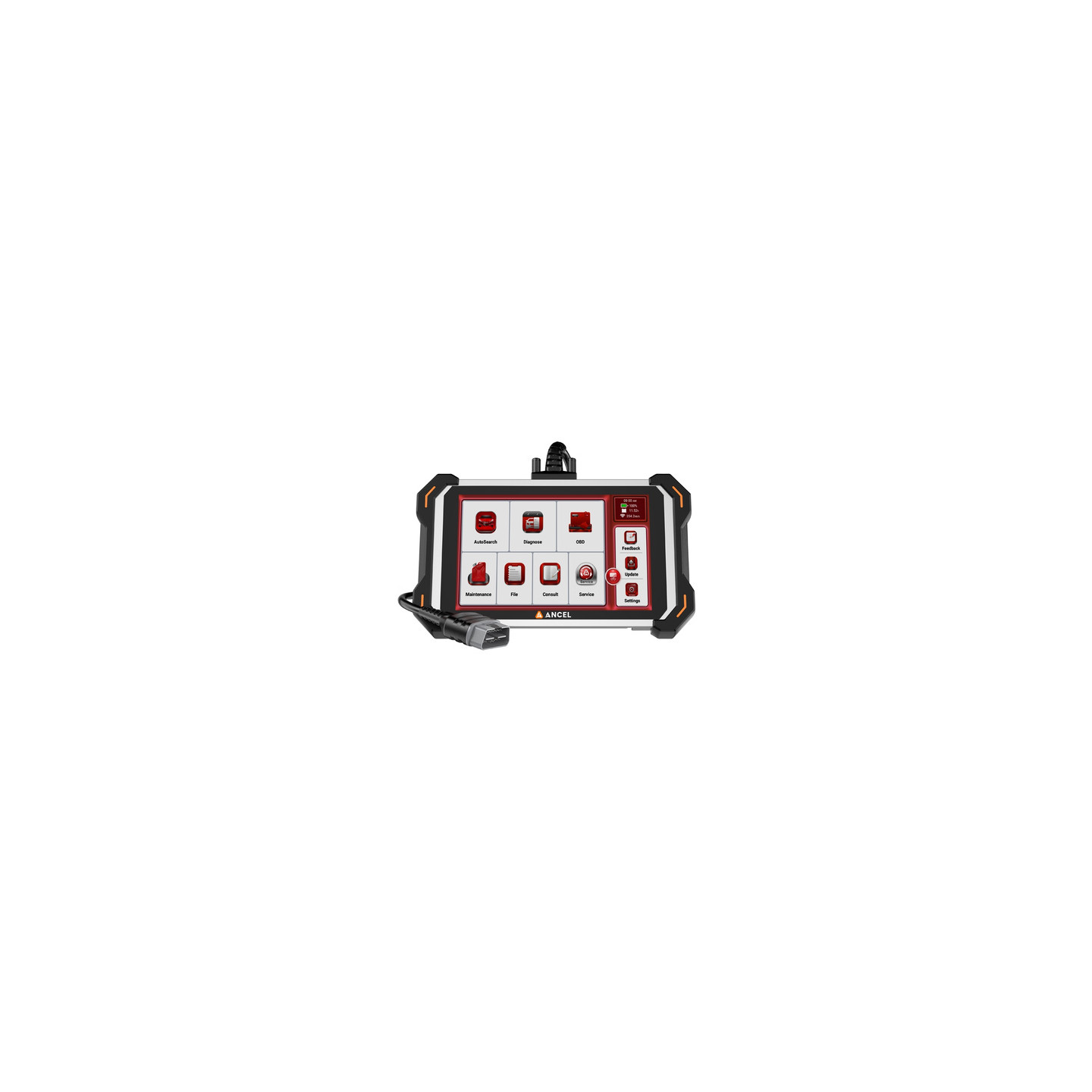

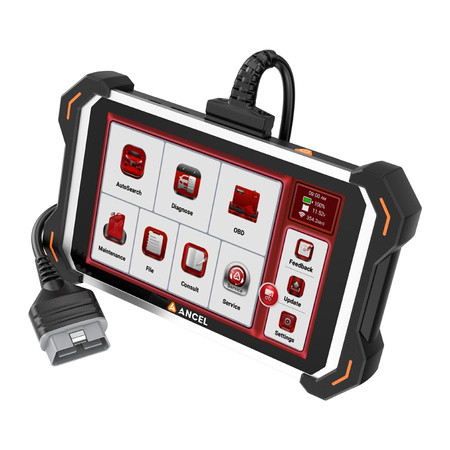

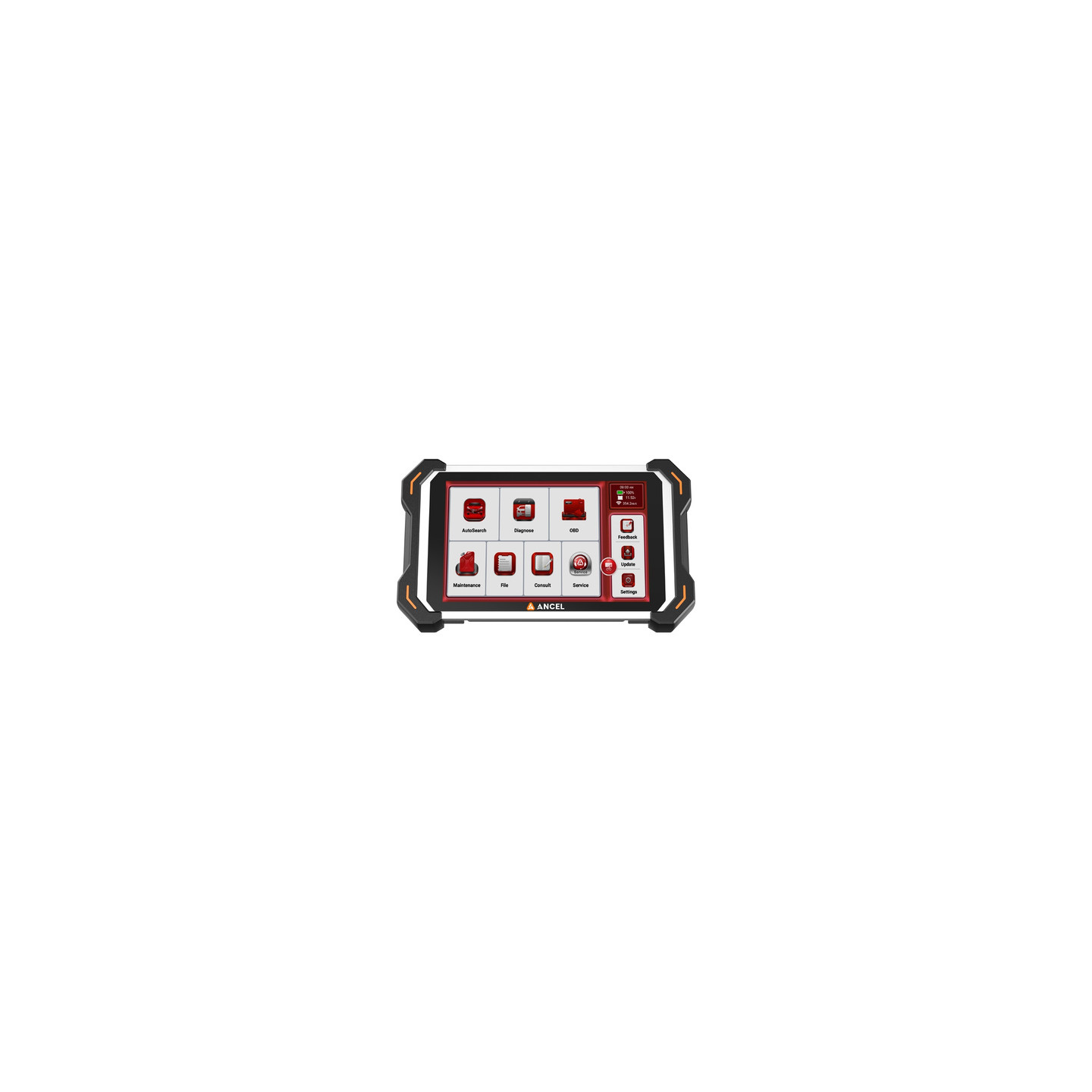

ANCEL DS600 BT Professional OBD2 Diagnostic Scanner

ANCEL DS600 BT Professional OBD2 Diagnostic Scanner

The ANCEL DS600 BT is an advanced OBD2 diagnostic scanner equipped with an 8-inch touchscreen, Android 10.0, and a wireless Bluetooth VCI module. It offers comprehensive vehicle system diagnostics, DTC reading and clearing, real-time parameter monitoring, actuator tests, and coding and reset functions. What’s more, with 4 GB of RAM and 64 GB of ROM, it ensures smooth app performance and fast processing of diagnostic data.

AutoSearch – Automatic Vehicle Recognition

The AutoSearch feature automatically reads the vehicle’s VIN and identifies its make, model, and model year. This allows you to quickly access diagnostic functions directly—without having to manually enter vehicle data. If automatic reading is not possible, the device also allows you to enter the information manually and continue with diagnostics.

OBD Diagnostics and Real-Time Data

The ANCEL DS600 BT supports OBD functionality, which allows you to monitor the operation of various vehicle components and analyze parameters in real time. The device displays information regarding, among other things, engine operation, fuel efficiency, emission levels, and sensor readings. The system also detects and displays trouble codes, allowing for faster problem identification and streamlining the diagnostic process.

Saving Reports and Service Information Database

The File function allows you to save diagnostic data, reports, data streams, and images for later analysis and archiving. This is a convenient solution for workshop operations, especially when comparing previous diagnostic results. The Consult feature, on the other hand, provides access to the Repair Info database, which includes DTC libraries, lists of compatible vehicles, and instructions.

Wireless Bluetooth Communication for Greater Convenience

The DS600 BT model communicates with the vehicle via a Bluetooth VCI adapter, allowing the user to move freely around the car while working. The lack of a cable enhances user comfort and makes it easier to use the scanner in the workshop or in the field. Stable connectivity is ensured by Bluetooth 5.0 and support for 2.4 GHz and 5.0 GHz Wi-Fi networks.

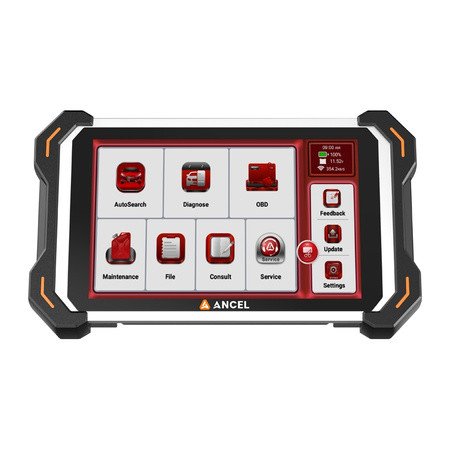

Large screen and powerful components

The 8-inch color touchscreen ensures comfortable operation and a clear view of diagnostic data. The Android 10.0 system guarantees smooth interface operation, and the powerful hardware configuration with 4 GB of RAM and 64 GB of ROM enables comfortable operation even during more demanding diagnostics. Also noteworthy is the high-capacity 4150 mAh battery, which allows for extended use of the device.

Wide compatibility with modern protocols

The ANCEL DS600 BT supports many popular diagnostic protocols used in modern vehicles. As a result, it can work with a wide range of car models. The device supports, among others, SAE J1850 PWM, SAE J1850 VPW, ISO 9141-2, ISO 14230-4 KWP, ISO 15765-4 CAN, CAN-FD, and DOIP. Such broad compatibility expands the device’s range of applications, both in professional workshops and during everyday diagnostics of various vehicle brands.
