Reference 60016-uniw Category Pond filters Brand Sunsun
EAN13 6955974902215

SUNSUN CPF-15000 18W UV Pressure Filter for Ponds

New
€184.25
Tax included
In stock

Product Parameters

Download the manualhttps://files.innpro.pl/Sunsun/6955974902215
Quantity per carton2 pcs.
Gross weight10130
Net weight9500
Box length73,50
Box width40,00
Box height38,00
HS Code8421210000
PPWRhttps://ppwr.innpro.pl/sunsun

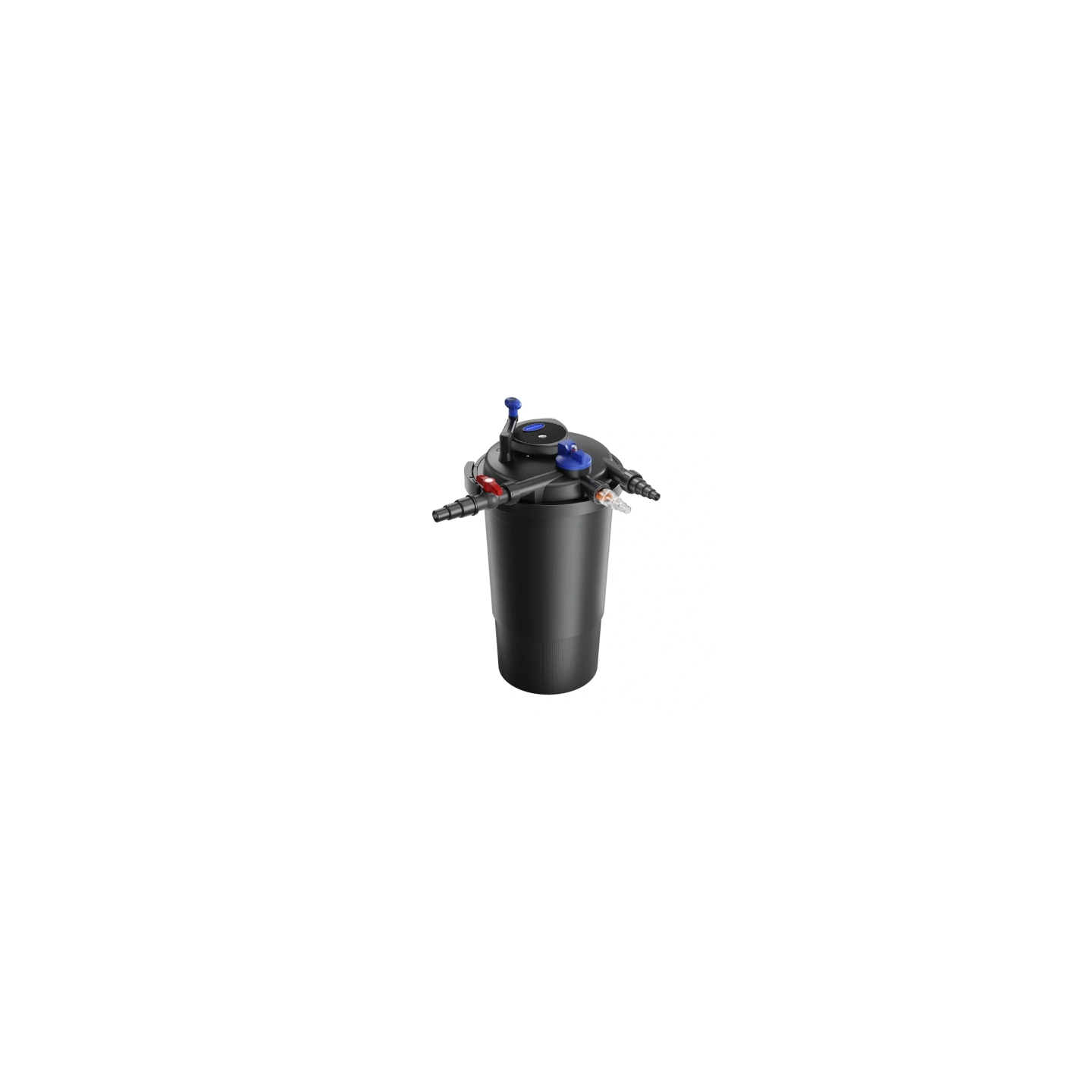

SUNSUN CPF-15000 18W UV Pressure Filter for Ponds

The SUNSUN CPF-15000 is a pressure filter designed for ponds, garden ponds, and fish tanks where it is important to maintain clean and clear water throughout the season. The model is equipped with an 18W UV-C lamp, which helps reduce the growth of algae responsible for green water. The filter is compatible with pumps with a flow rate of 4,000 to 10,000 l/h, and its maximum flow rate is 10,000 l/h. The unit is designed for fish ponds with a capacity of up to 15 m³ and decorative ponds without fish with a capacity of up to 30 m³, providing effective mechanical and biological filtration along with UV-C technology support.

External pond filter placed at the edge of a fish pond

Filtration supporting the biological balance of the pond

Inside the filter is a spacious 38-liter chamber that holds the filter media responsible for water purification. Mechanical filtration traps solid contaminants such as plant debris, sediment, and fine suspended particles. At the same time, the filter media create a suitable environment for beneficial bacteria that support natural biological water purification processes. This makes it easier to maintain stable conditions in the pond and limit the accumulation of substances that degrade water quality.

Cross-section diagram of the filter showing water flow through the filter layers and UV lamp

Algae-reducing lamp

The built-in 18 W UV-C sterilizer supports the operation of the entire filtration system by limiting the growth of algae floating in the water. UV-C radiation causes them to clump into larger clusters, which can then be trapped by the filter cartridges. This improves water clarity and makes the pond look more aesthetically pleasing. The combination of mechanical and biological filtration with the UV-C lamp allows for more effective water quality management than when using individual purification methods.

Close-up of the filter cartridge trapping debris as water flows through

Convenient operation and easy maintenance

The filter is equipped with a practical filter cartridge cleaning system and a contamination level indicator, which facilitates monitoring of the unit’s operation. Thanks to its pressure-resistant design, the filter can be partially buried or concealed along the edge of the pond, maintaining the aesthetic appearance of the entire installation. The purified water can be pumped to higher-level system elements, such as cascades, streams, or waterfalls. The sturdy housing is made of durable materials resistant to outdoor conditions, allowing for year-round use.

UV lamp for the water filter shown on a blue background



ManufacturerSUNSUN
ModelCPF-15000
UV-C lamp power18 W
Power supply voltage220–240 V / 50 Hz
Maximum flow rate10,000 l/h
Maximum fish pond size15 m³
Maximum ornamental pond size30 m³
Filter capacity38 l
Hose connections20 / 25 / 32 / 38 mm
Dimensions382 × 382 × 769 mm
