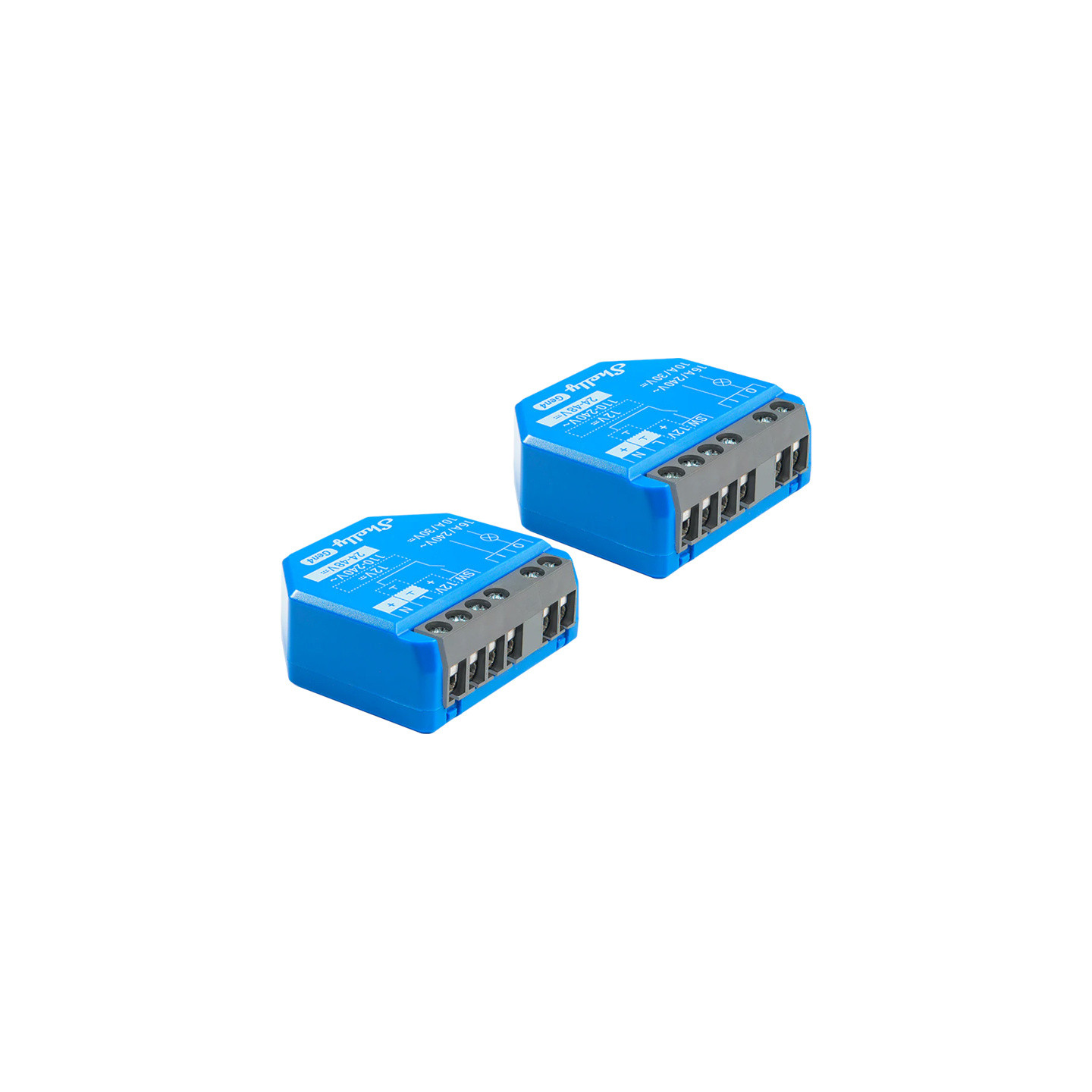

Set of 2 Shelly 1 Gen4 Zigbee/Matter Controllers

Name: Set of 2 Shelly 1 Gen4 Zigbee/Matter Controllers
Brand: Shelly
SKU: 59920-uniw
Price: 54.3 EUR
Availability: InStock

New

€54.30

Tax included

In stock

Product Parameters

Connectivity	Wi-Fi
Category	Switches
App	Amazon Alexa, Apple HomeKit, Google Home, SmartThings
Quantity per carton	414 pcs.
Gross weight	70
Net weight	56
Box length	10,00
Box width	5,00
Box height	2,50

Set of 2 Shelly 1 Gen4 Zigbee/Matter Controllers

The Shelly 1 Gen4 Zigbee/Matter is a compact flush-mounted controller with potential-free contacts that allows for remote control of various electrical devices—both via a local network and the internet. The device supports multiple communication protocols (Wi-Fi, Bluetooth, Zigbee, Matter), making it easy to integrate with your preferred home automation system. It can be integrated with popular platforms such as Google Home, Alexa, and SmartThings. The controller is ideal for residential, office, hotel, and other facilities. The set includes two controllers.

Integration with any system

The Shelly 1 Gen4 controller supports four main wireless communication Zigbee (802.15.4), Wi-Fi (802.11 b/g/n), Bluetooth 4.2, and Matter. This allows you to choose which medium to use based on your installation’s capabilities and smart home ecosystem. The product also functions as a Zigbee repeater, which extends the network range. In the event of a weak Wi-Fi signal, it can act as a Wi-Fi booster, increasing connection stability.

Remote access and schedules

The device can operate both on a local Wi-Fi network and over the internet, enabling remote access regardless of the user’s location. The built-in web interface allows for configuration and control without the need to install additional apps. The advanced scheduling system lets you define detailed scenarios based on the day of the week, hour, and even the second, which works well for automating lighting, ventilation, or garden watering, among other things.

Compatibility with apps and systems

The Shelly 1 Gen4 model works with many home automation systems. It supports HTTP API, MQTT(S), Webhooks, the UDP protocol, and virtual components. Additionally, it offers compatibility with the KNX net/IP system. Thanks to support for scripts in the ShellyScript language, it is possible to create custom rules and operational logic.

Included

Shelly x2 controller
user manual

General

Manufacturer	Shelly
Model	1Gen4

Physical specifications

Dimensions	37 x 42 x 16 mm / 1.46 x 1.65 x 0.63 inches
Weight	26 g / 0.92 oz
Maximum tightening torque for screw terminals	0.4 Nm / 3.5 lbin
Wire cross-section	0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and sleeved wires)
Stripped wire length	6 to 7 mm / 0.24 to 0.28 inches
Mounting	Wall mount
Housing material	Plastic
Housing color	Blue
Terminal color	Gray

Environmental conditions

Operating temperature	-20°C to 40°C / -5°F to 105°F
Operating humidity	30% to 70% RH
Maximum altitude	2000 m / 6562 ft

Electrical specifications

Power supply	110–240 V~ ; 24–48 V= ; 12 V=
Power consumption	< 1 W
Neutral wire required	No
External protection	Overcurrent circuit breaker compliant with EN60898-1 (tripping characteristic B or C, rated current max. 16 A, minimum breaking capacity 6 kA, energy limitation class 3)

Output circuit parameters

Maximum switching voltage	240 V~ ; 30 V=
Maximum switching current	16 A / 240 V~ ; 10 A / 30 V=

Sensors and measurements

Built-in temperature sensor	Yes

Wi-Fi

Protocol	802.11 b/g/n
RF band	2412 – 2472 MHz
Maximum RF transmit power	< 20 dBm
Range	Up to 30 m indoors / 100 feet and up to 50 m outdoors / 160 feet (depending on local conditions)

Bluetooth

Protocol	4.2
RF Band	2402 – 2480 MHz
Maximum RF Transmit Power	< 4 dBm
Range	Up to 10 m indoors / 33 feet and up to 30 m outdoors / 100 feet (depending on local conditions)

Zigbee

Protocol	802.15.4
Zigbee repeater function	Yes
RF band	2400 – 2483.5 MHz
Maximum RF transmit power	< 20 dBm
Range	Up to 100 m indoors / 328 ft and up to 300 m outdoors / 984 ft (depending on local conditions)
