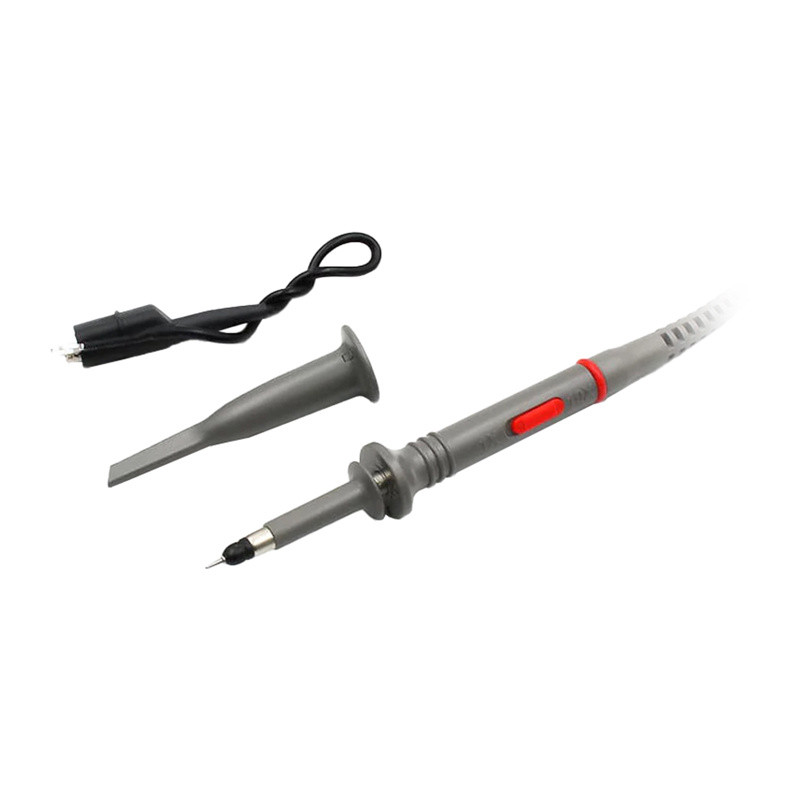

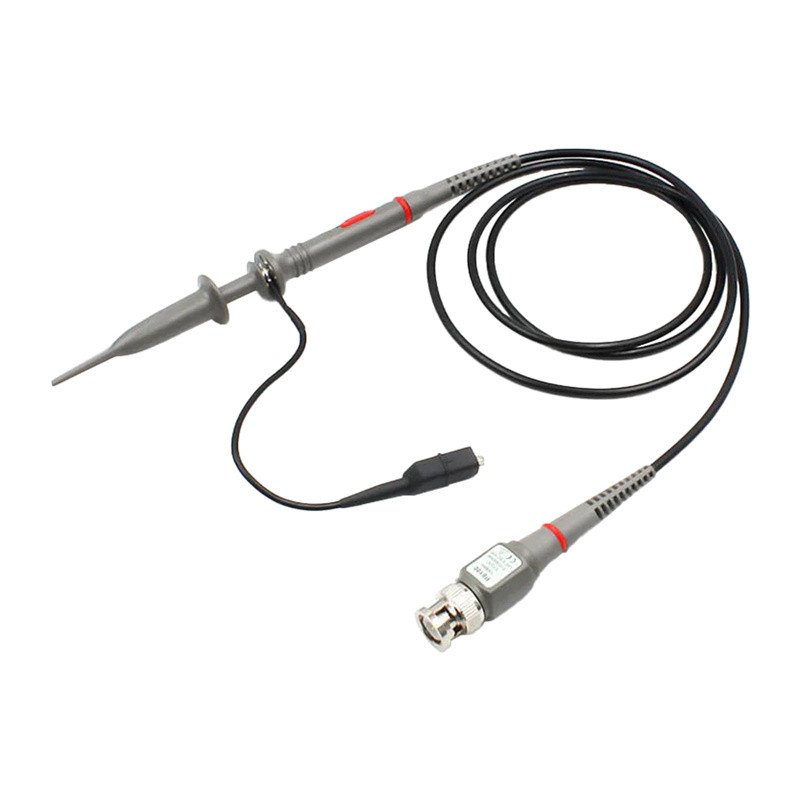

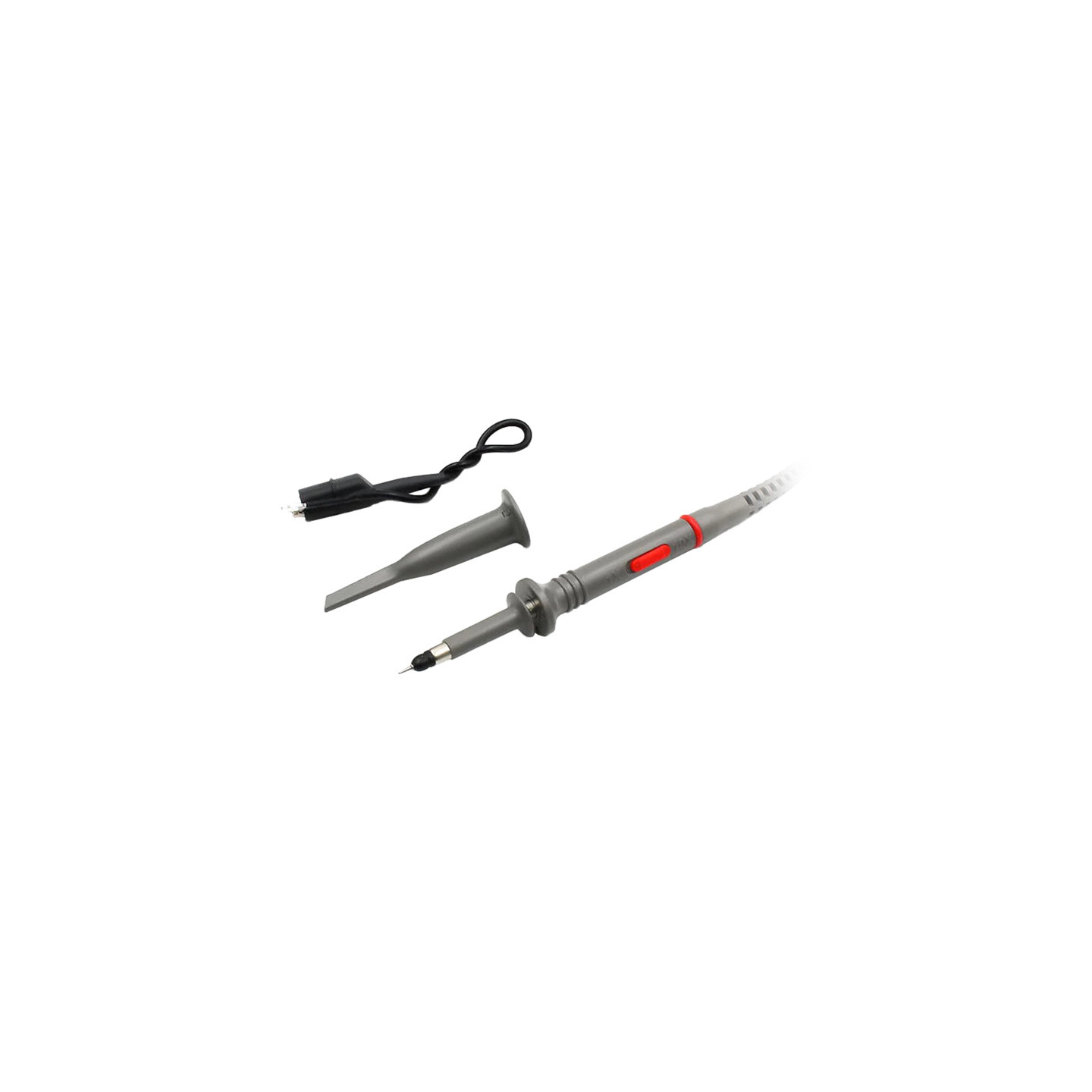

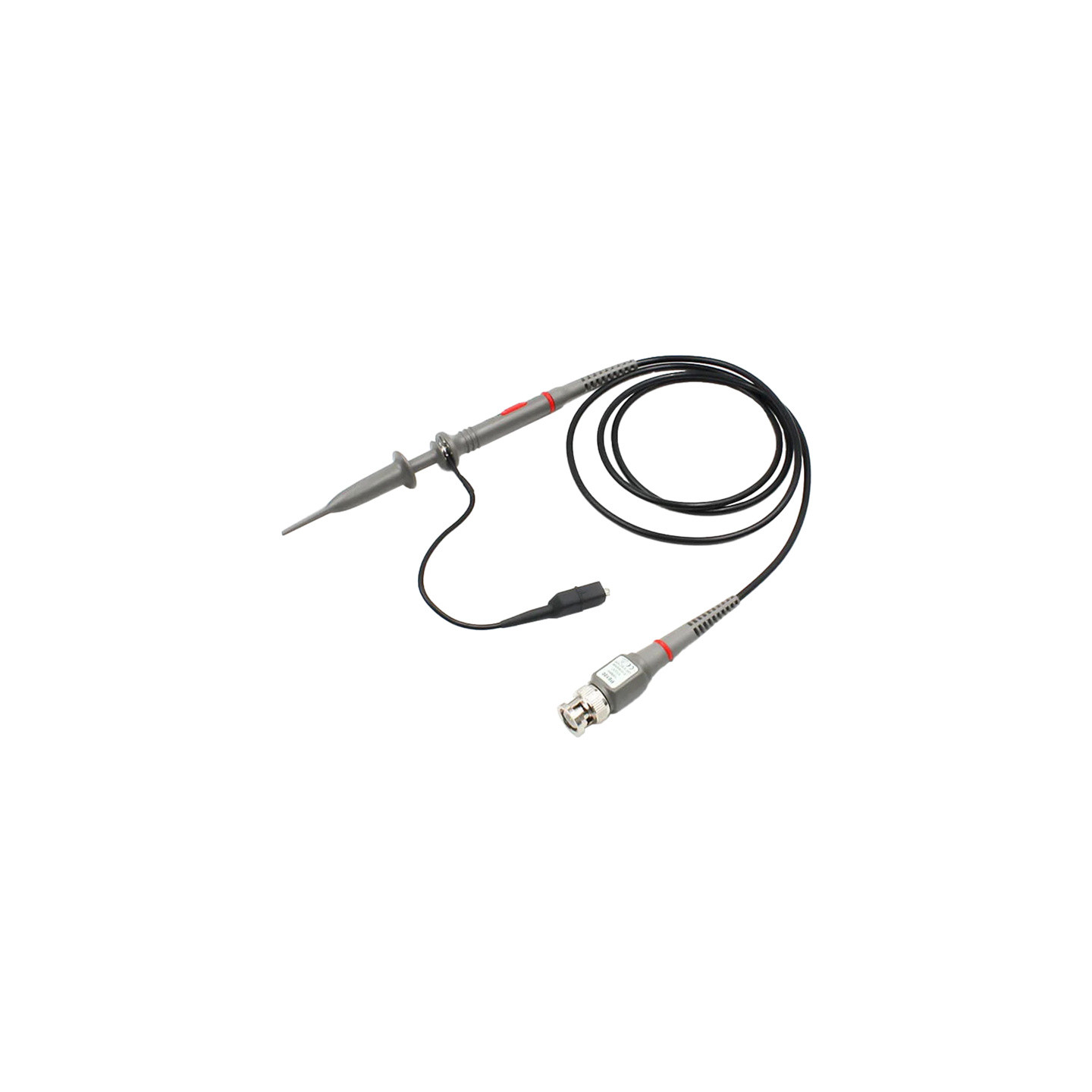

Fnirsi P6100 oscilloscope probe

Name: Fnirsi P6100 oscilloscope probe
Brand: FNIRSI
SKU: 58536-uniw
Price: 6.55 EUR
Availability: InStock

6,55 €

AR PVN

Ir Noliktavā

Product Parameters

Gross weight	80
HS Code	9030900000
Net weight	56
Quantity per carton	100 pcs.
Box length	20,50
Box width	15,50
Box height	1,00

The Fnirsi P6100 is an oscilloscope probe designed for precise signal measurements in everyday work with electronics. It offers a wide bandwidth, two attenuation modes, and solid electrical parameters, making it suitable for both service and hobbyist workshops.

Safe operation with higher voltages

In 1X mode, the probe supports voltages up to 200 V DC + AC Peak, and in 10X mode up to 600 V DC + AC. These parameters allow for comfortable work with many popular electronic devices and power modules. The appropriate voltage range increases safety and expands the range of applications.

Convenient cable length

The 120 cm long cable provides freedom of movement at the measuring station. This allows you to conveniently connect the probe even in less accessible places without excessive cable tension. The whole thing weighs about 80 g, so the probe does not burden the connector and fits well in your hand.

Fnirsi P6100 oscilloscope probe

Manufacturer	Fnirsi
Model	P6100
Frequency response	DC–6 MHz (1X mode), DC–100 MHz (10X mode)
Attenuation ratio	10
Input	85 pF–120 pF, 18.5 pF–22.5 pF
Compensation range	10 pF–30 pF
Rise time	< 3.5 ns
Operating voltage	< 200 V DC + AC (peak), < 600 V DC + AC
Cable length	120 cm
Operating temperature range	-10°C to +50°C
Storage temperature range	-20°C to +75°C
Humidity	≤ 5% (relative humidity)
Weight	80 g
Color	gray-black
