Uni-T UT501B Insulation Resistance Tester

Name: Uni-T UT501B Insulation Resistance Tester
Brand: UNI-T
SKU: 58045-uniw
Price: 89.48 EUR
Availability: InStock

89,48 €

AR PVN

Ir Noliktavā

Product Parameters

Gross weight	880
Net weight	500
HS Code	9030332090
Quantity per carton	20 pcs.
Box length	17,50
Box width	14,50

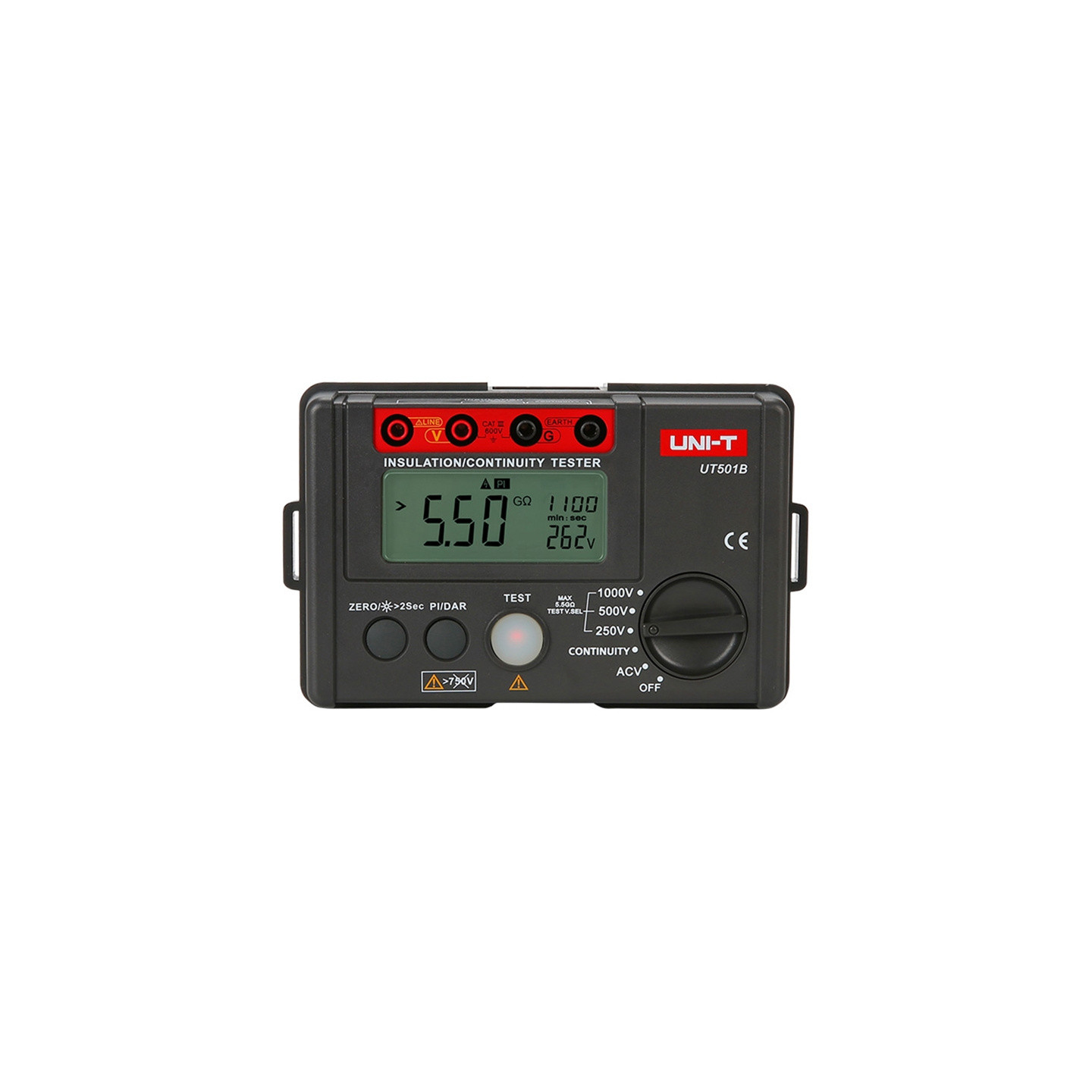

Uni-T UT501B Insulation Resistance Tester

The Uni-T UT501B Insulation Resistance Tester is a versatile and precise measuring device from the UT500 series, designed to measure insulation resistance, AC voltage, and low resistance in electrical installations and equipment. The model offers test voltages of 250V/500V/1000V, measurement accuracy of ±(3%+5), as well as advanced PI and DAR diagnostic functions. Equipped with a clear 2000-count LCD display, automatic range selection, continuous measurement function, and an alert system (buzzer and LED), it ensures convenience and safety when testing transformers, motors, cables, and high-voltage installations. The UT501B stands out for its intuitive operation and compact, rugged design (weight 500 g), making it an ideal tool for electricians and service technicians. The model is CE and UKCA certified.

Included

Uni-T UT501B Insulation Resistance Tester
Test leads
Alligator clips
Batteries
Carrying strap

Manufacturer	Uni-T
Model	UT501B
Test voltage range	250V / 500V / 1000V
Insulation resistance measurement	up to 5GΩ
AC voltage measurement	30V–600V
Short-circuit current	<2mA
Additional features	PI and DAR functions, auto-discharge, auto-range selection, continuous resistance measurement, 2000-count backlit LCD display
Power supply	6 × 1.5V (LR6)
Dimensions	150 × 100 × 71 mm
Weight	500 g
