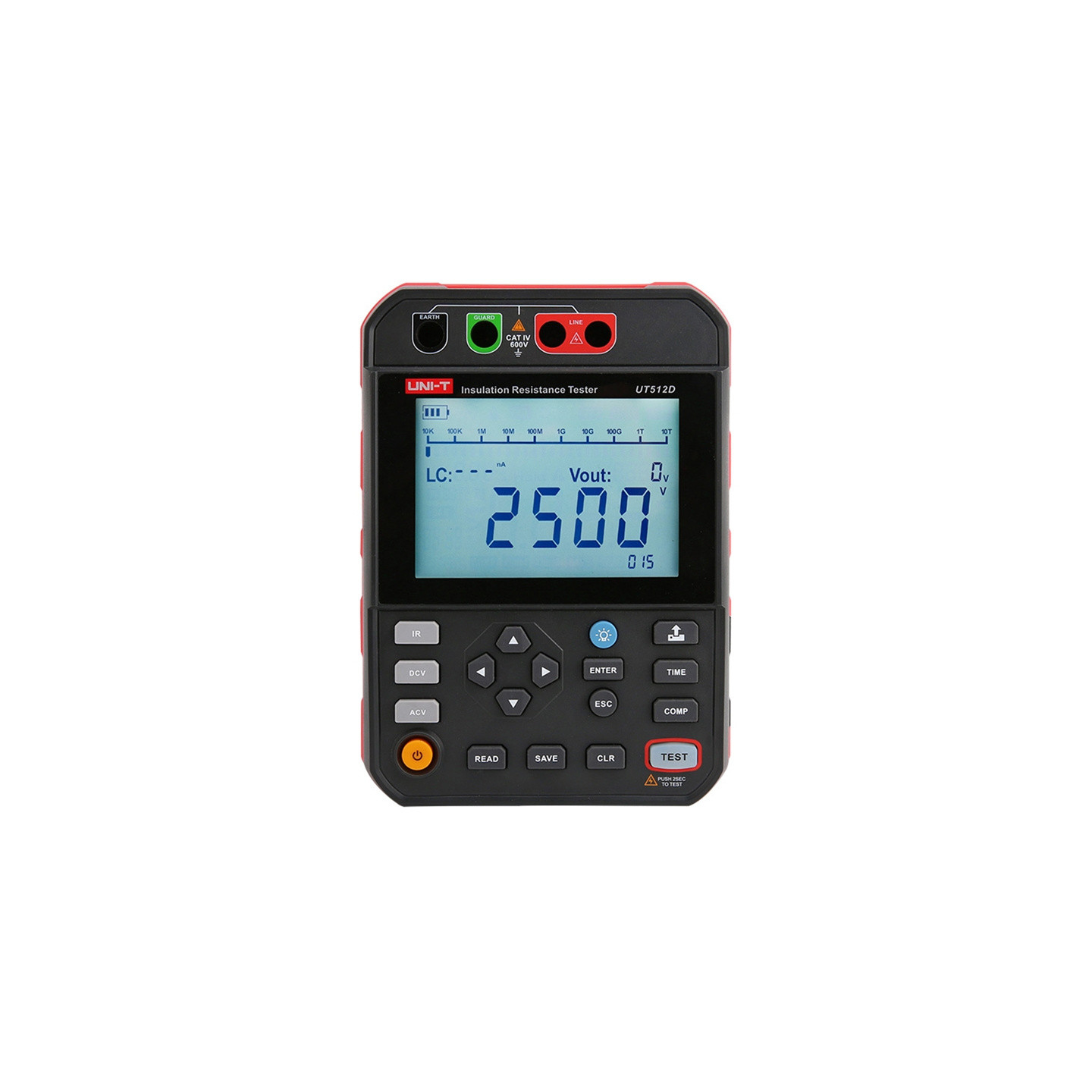

Uni-T UT512D High-Voltage Insulation Resistance Tester

Name: Uni-T UT512D High-Voltage Insulation Resistance Tester
Brand: UNI-T
SKU: 57984-uniw
Price: 285.96 EUR
Availability: InStock

285,96 €

AR PVN

Ir Noliktavā

Product Parameters

Gross weight	5060
Net weight	1800
HS Code	9030332090
Quantity per carton	1 pcs.
Box length	45,00
Box width	36,50
Box height	18,00

Uni-T UT512D High-Voltage Insulation Resistance Tester

The Uni-T UT512D High Voltage Insulation Resistance Tester is an advanced digital measuring device designed for use in demanding environments such as power generation, telecommunications, and industry. It supports test voltages up to 2500V (250V / 500V / 1000V / 2500V), enables PI and DAR measurements, and offers automatic discharge, high-voltage alarm, and data logging functions. Thanks to its wide measurement range and USB communication, it is ideal for both the installation and maintenance of electrical equipment.

Included

Uni-T UT512D Insulation Resistance Tester
Test leads (3 pcs.: red, black, green)
USB cable
User manual
Carrying strap
LR14 alkaline batteries (8 pcs.)

Manufacturer	Uni-T
Model	UT512D
Test voltages	250V / 500V / 1000V / 2500V
Maximum output voltage	up to 2.5 kV
Insulation resistance measurement	up to 249 GΩ (accurate) and up to 1.00 TΩ (indicative)
Short-circuit current measurement	approx. 3.5 mA
Data memory	up to 999 measurements
PC communication	via USB
Voltage category	CAT IV 600V
Power supply	8 × LR14 alkaline batteries
Dimensions	238 × 166 × 90.5 mm
Weight	approx. 1800 g (with batteries)
Certifications	CE, UKCA
