Uni-T UT661D Pipeline Blockage Detector

Uni-T UT661D Pipe Blockage Detector

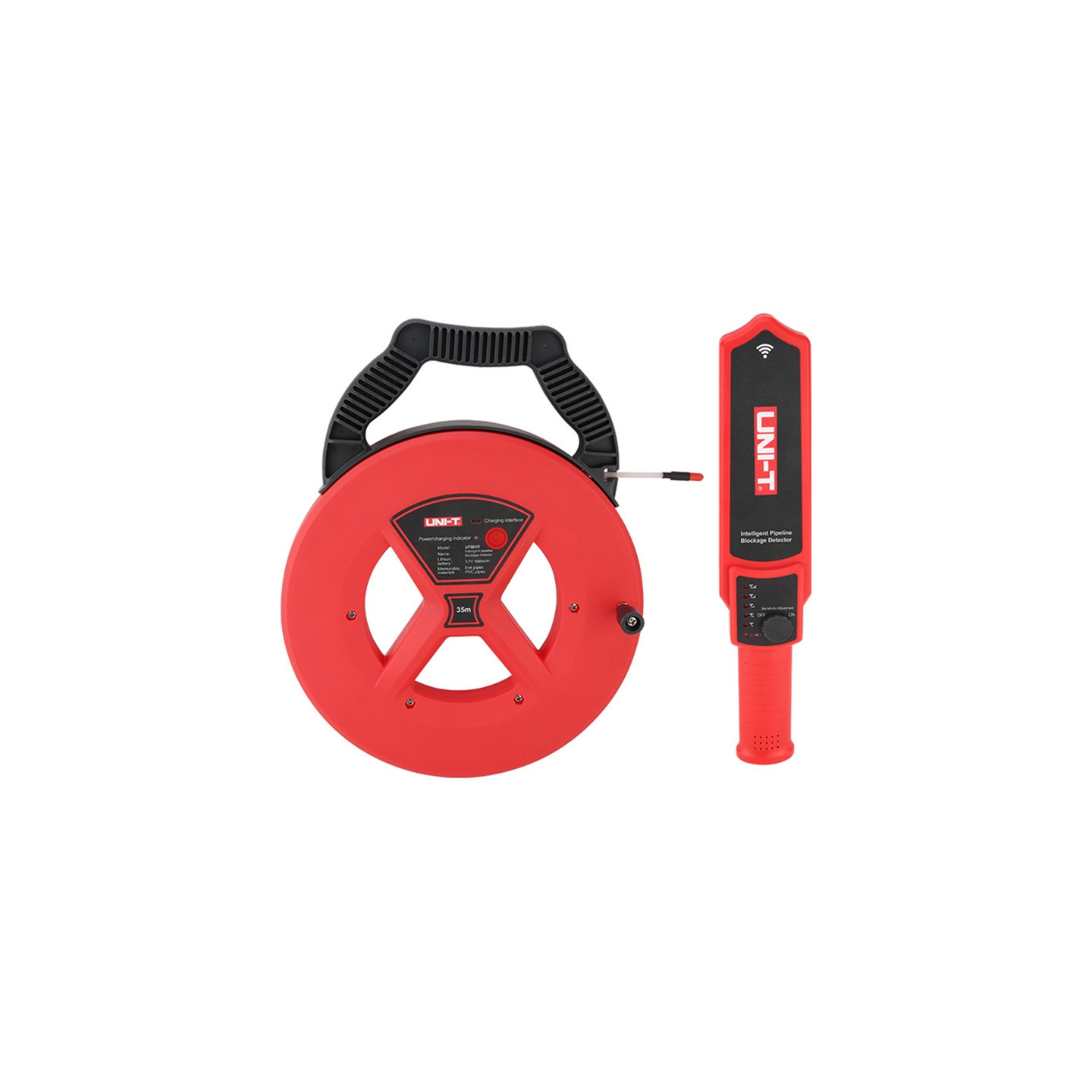

The Uni-T UT661D is a pipe blockage detector designed for quickly locating blockages in pipes without the need to dismantle the system. The device works with both plastic and metal pipes, and the 35-meter signal cable allows for inspection of longer sections. A maximum detection depth of up to 50 cm allows for effective blockage detection even in hard-to-reach areas. The kit consists of a transmitter and receiver that help precisely pinpoint the location of the problem, while audible and visual alerts facilitate quick identification of the blockage.

Designed for use in various conditions

The device is equipped with an IP67-rated probe, which increases its durability and safety when operating in demanding environments. A low-battery indicator and a loud audible signal improve user comfort during diagnostics. The transmitter and receiver use built-in 3.7 V lithium-ion batteries with a capacity of 1800 mAh, providing up to 10 hours of operation on a single charge. With an operating temperature range of -20°C to 60°C, plus the included charging cable and probe kit, the UT661D is ready for use both in the field and during daily maintenance tasks.

Included

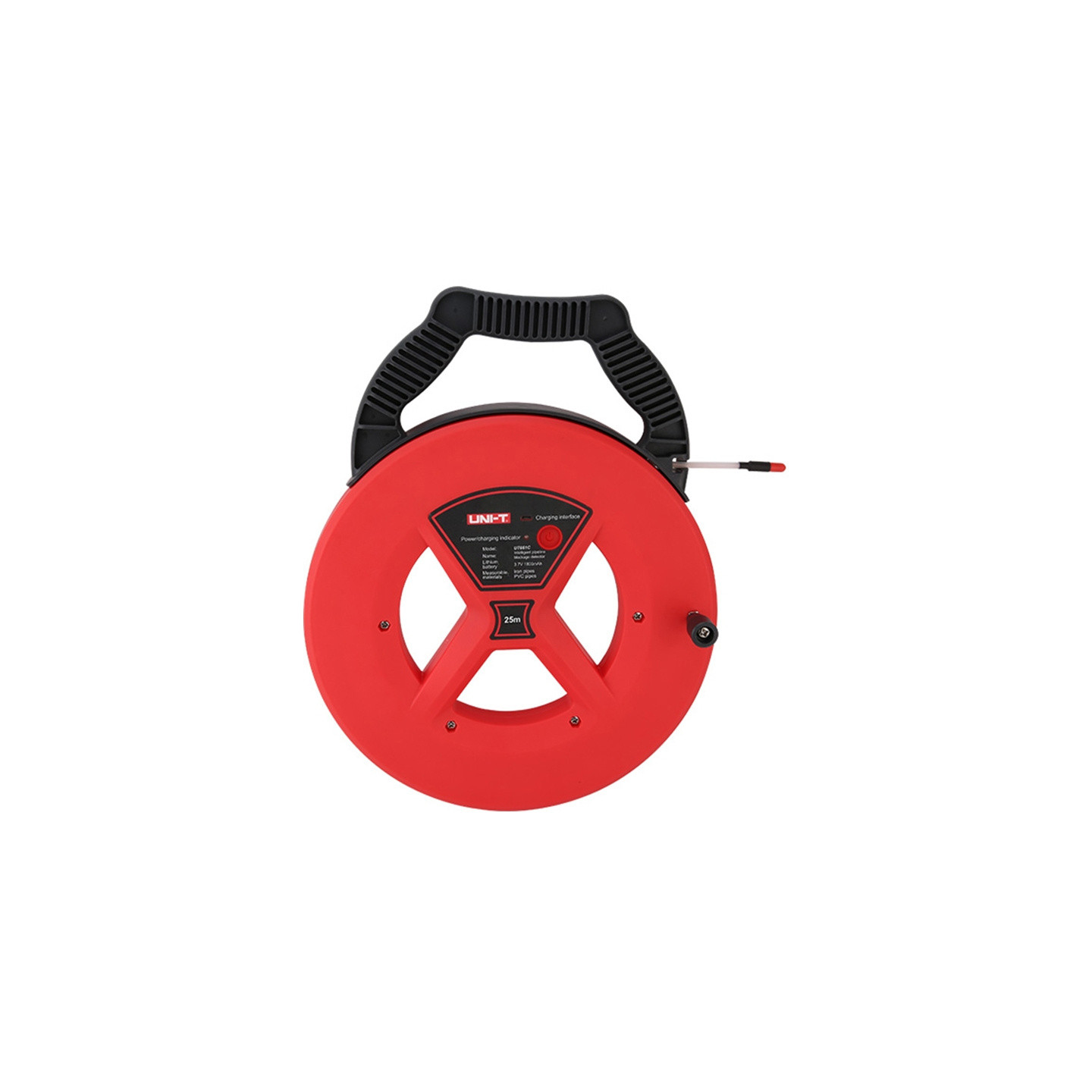

• Transmitter

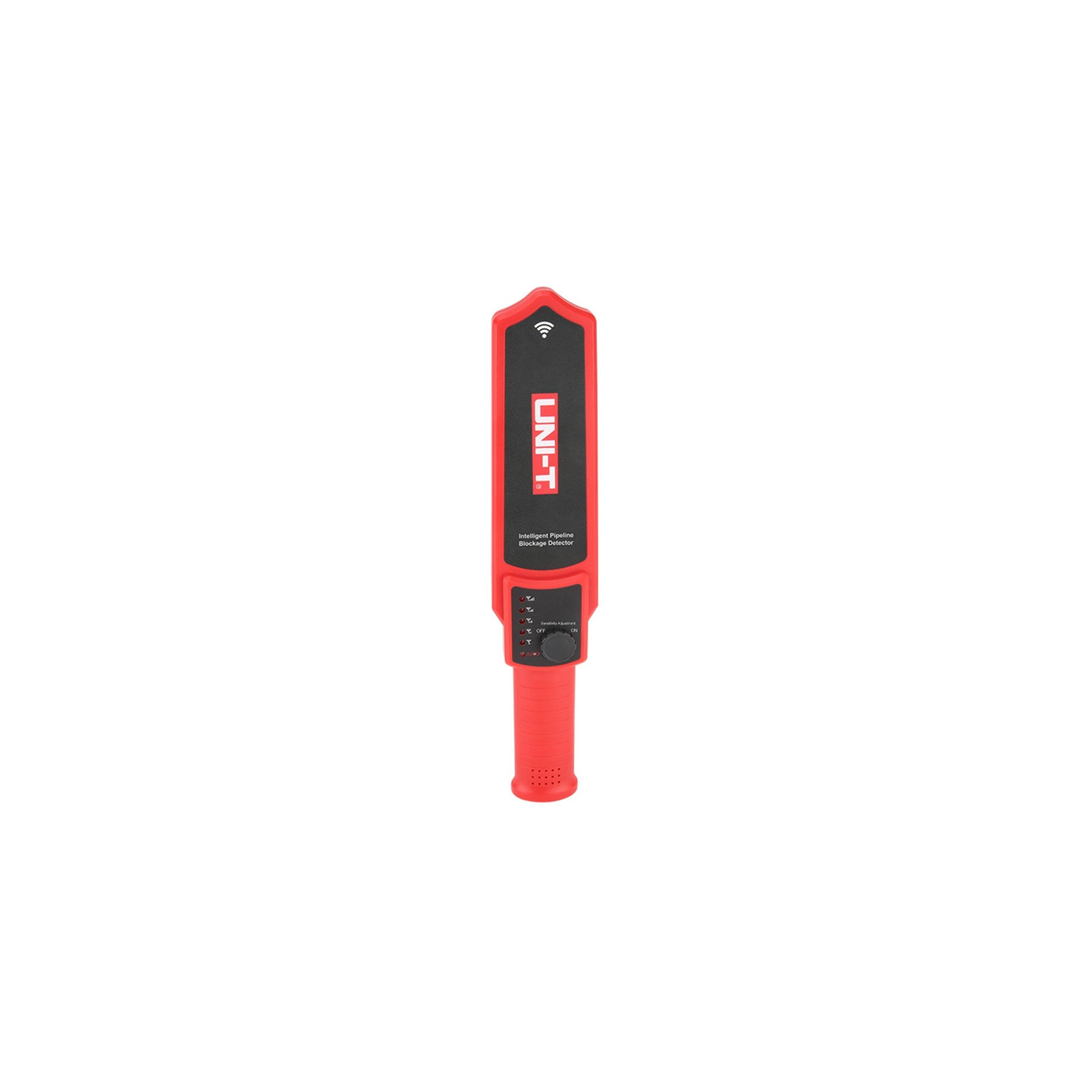

• Receiver
• Charging cable
• Probe kit
• User manual
• Warranty card
