Uni-T UT675A Battery Tester

Name: Uni-T UT675A Battery Tester
Brand: UNI-T
SKU: 57963-uniw
Price: 96.14 EUR
Availability: InStock

96,14 €

AR PVN

Ir Noliktavā

Product Parameters

Gross weight	960
Net weight	413
HS Code	9030337000
Quantity per carton	10 pcs.
Box length	27,50
Box width	23,00
Box height	9,00

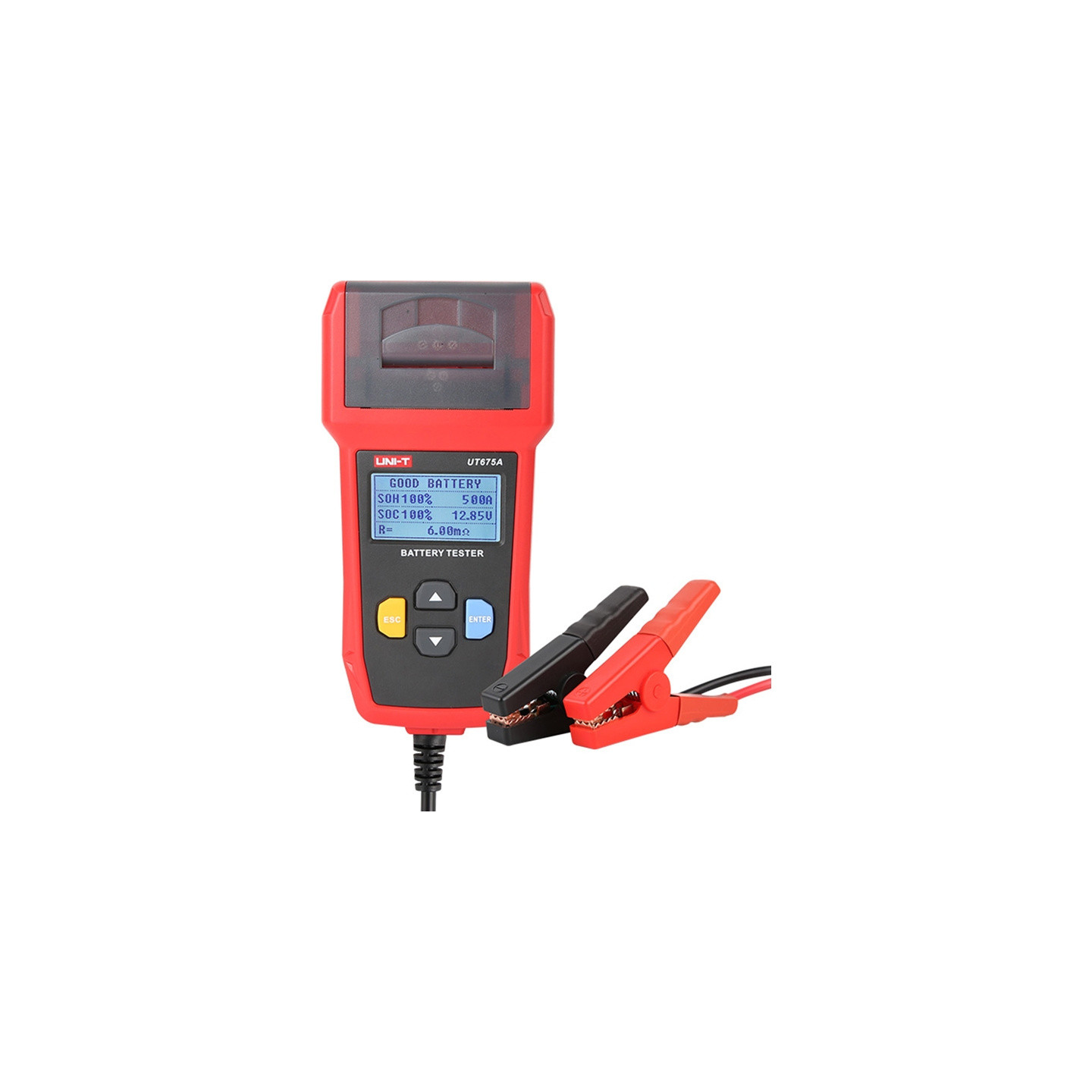

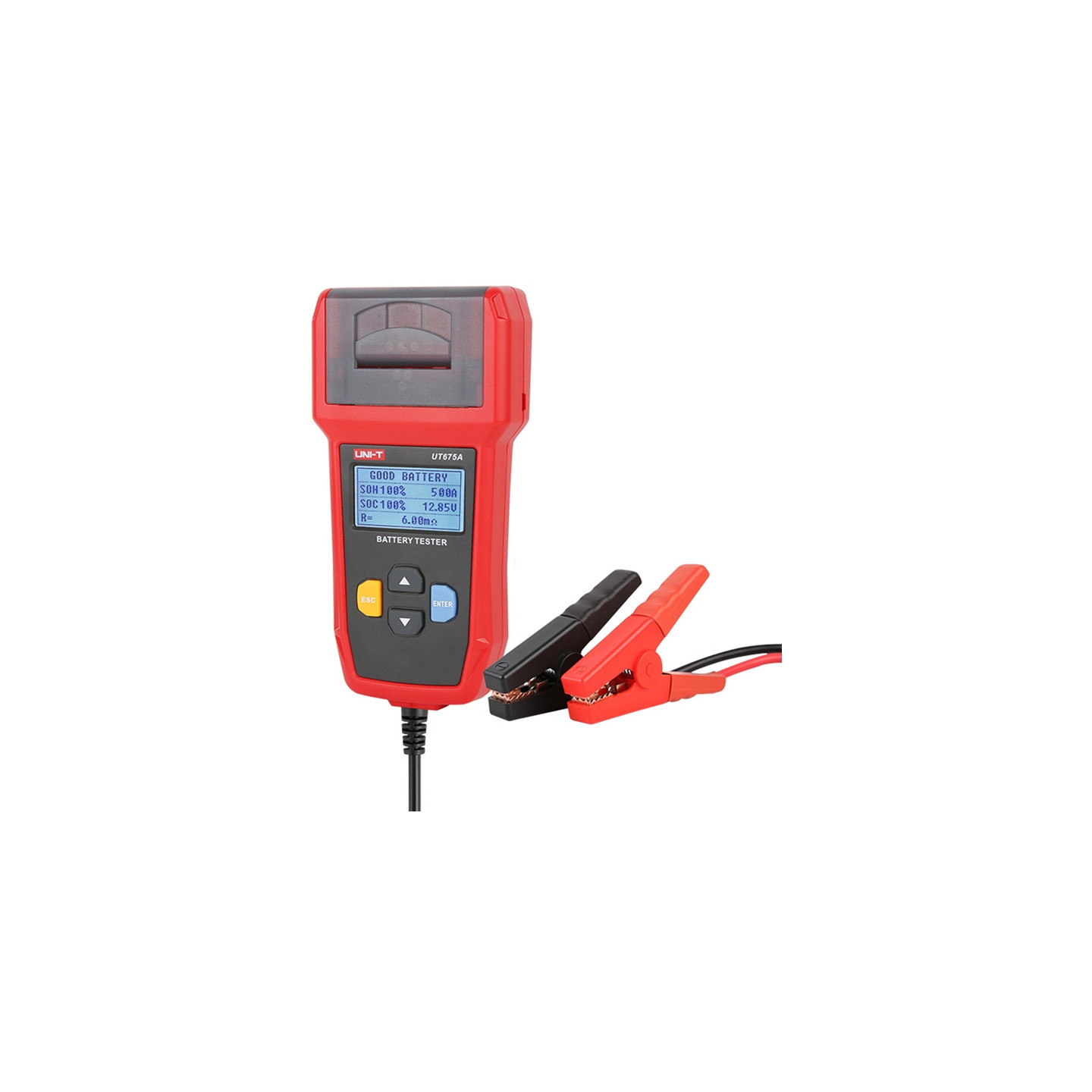

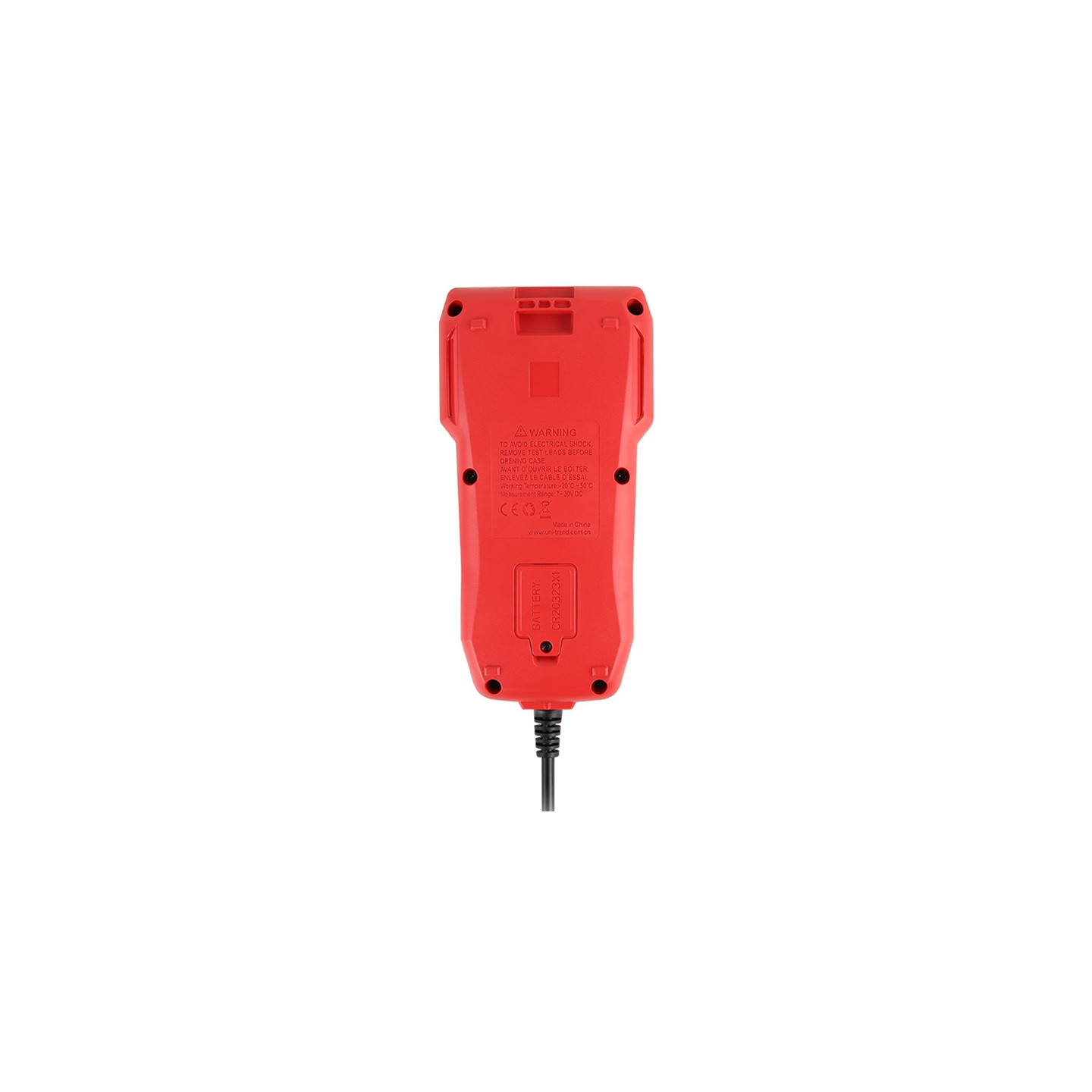

Uni-T UT675A battery tester

The Uni-T UT675A is a tester designed for the rapid diagnosis of automotive batteries and vehicle electrical systems without the need to remove the battery. The device supports lead-acid batteries with capacities ranging from 3 Ah to 250 Ah, including AGM, GEL, and EFB models, making it suitable for use in many types of vehicles. It enables the measurement of voltage and internal resistance, as well as the assessment of battery capacity and condition, allowing for the quick detection of potential issues. Additionally, the tester performs starting and charging system tests for 12 V and 24 V systems, expanding the diagnostic capabilities. The built-in printer and USB connectivity allow for the creation and archiving of measurement reports, which facilitates the documentation of results and daily work in a workshop or service center.

Included

Battery tester
USB cable
Thermal paper roll (for printer)
User manual

Specifications

Manufacturer	Uni-T
Model	UT675A
Product type	Battery tester with built-in printer
Battery voltage testing range	7–16 V DC
Starting system test	12 V / 24 V
Charging system test	12 V / 24 V
Supported battery types	Lead-acid, AGM, GEL, EFB
Battery capacity range	3–250 Ah
Test standards	CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, AH
Measured parameters	Voltage, resistance, capacity, cycle life
Connectivity	USB
Built-in printer	Yes
Display type	128 × 64 LCD display
Power supply	From the tested vehicle battery
Dimensions	95 × 47 × 183 mm
Weight	413 g
Certifications	CE, UKCA, FCC
