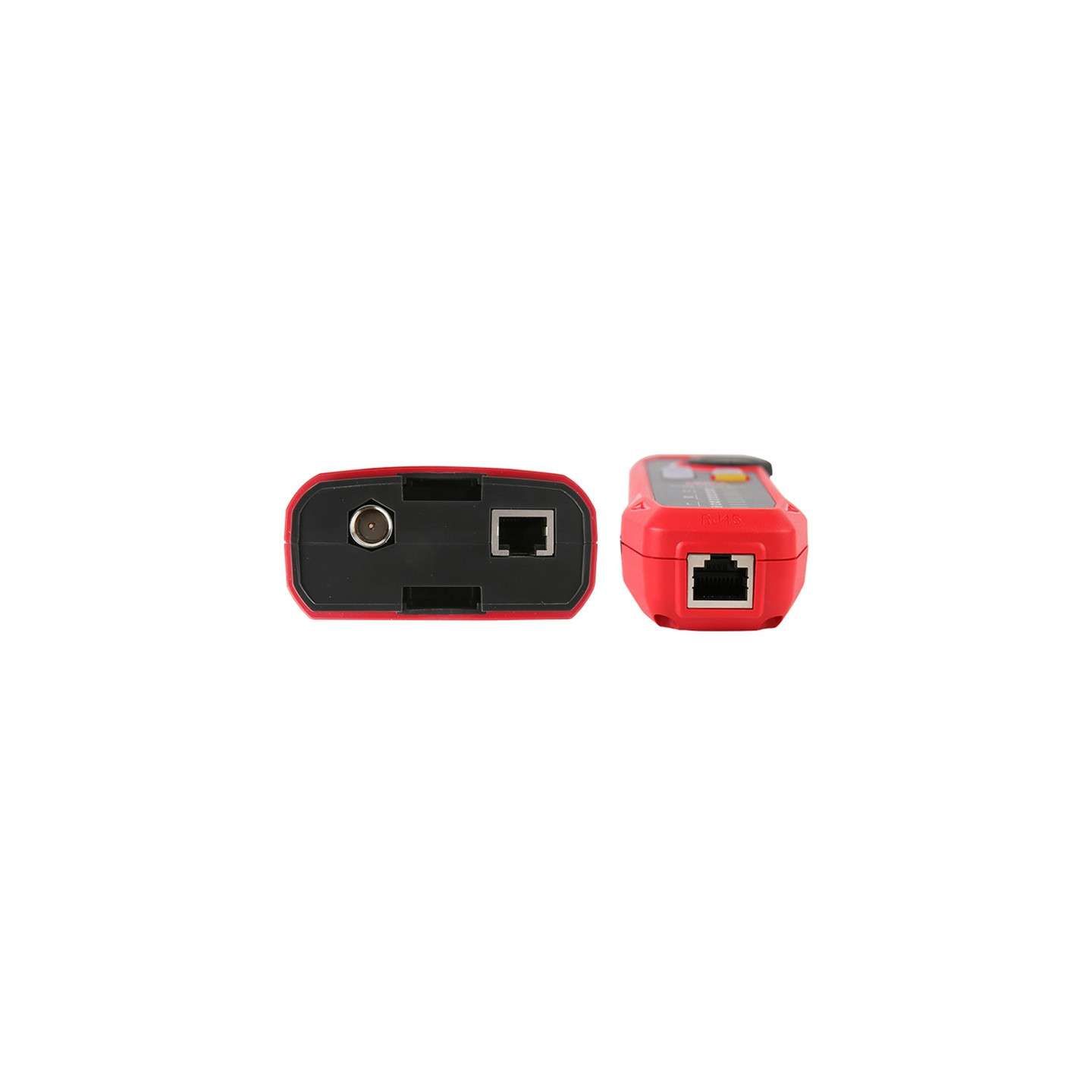

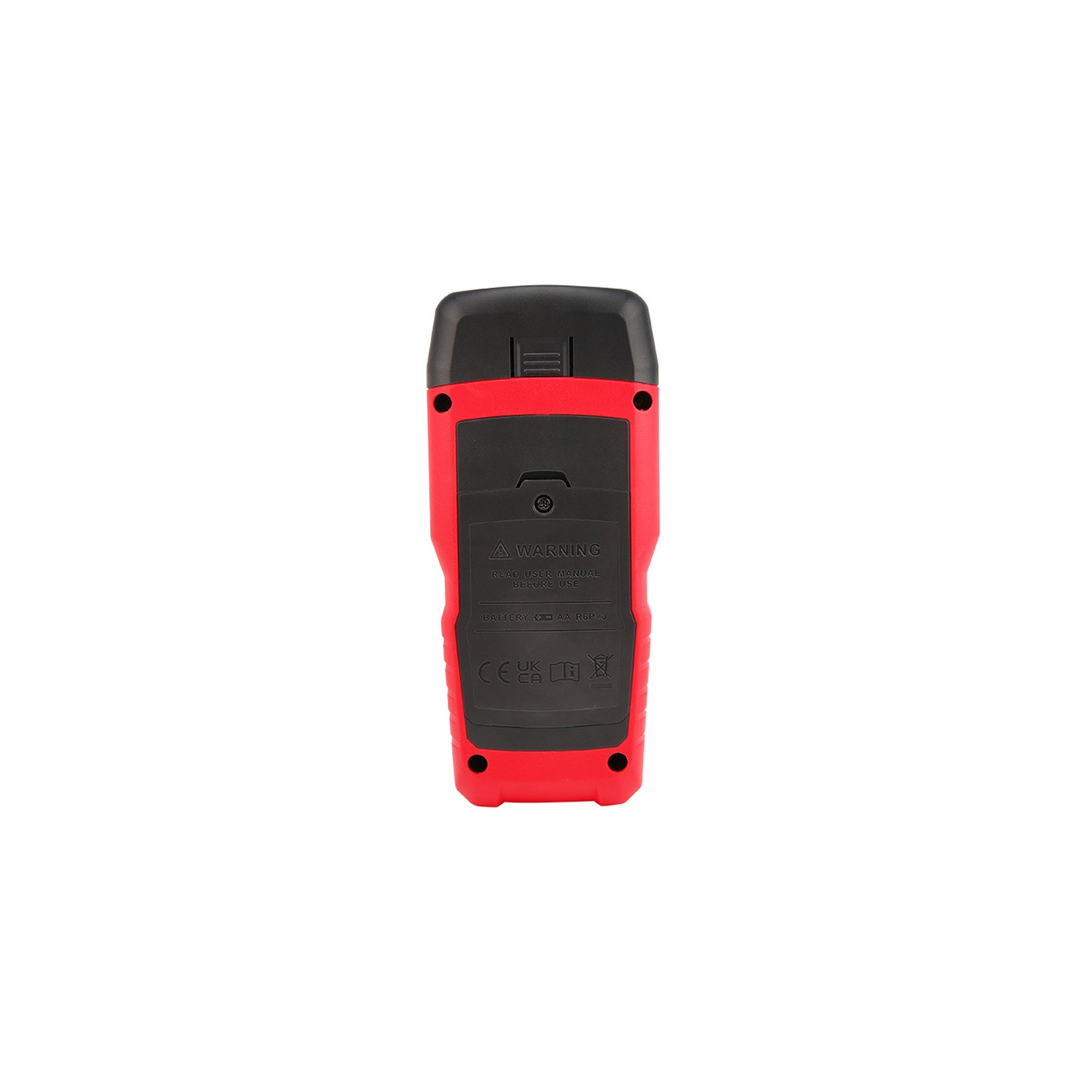

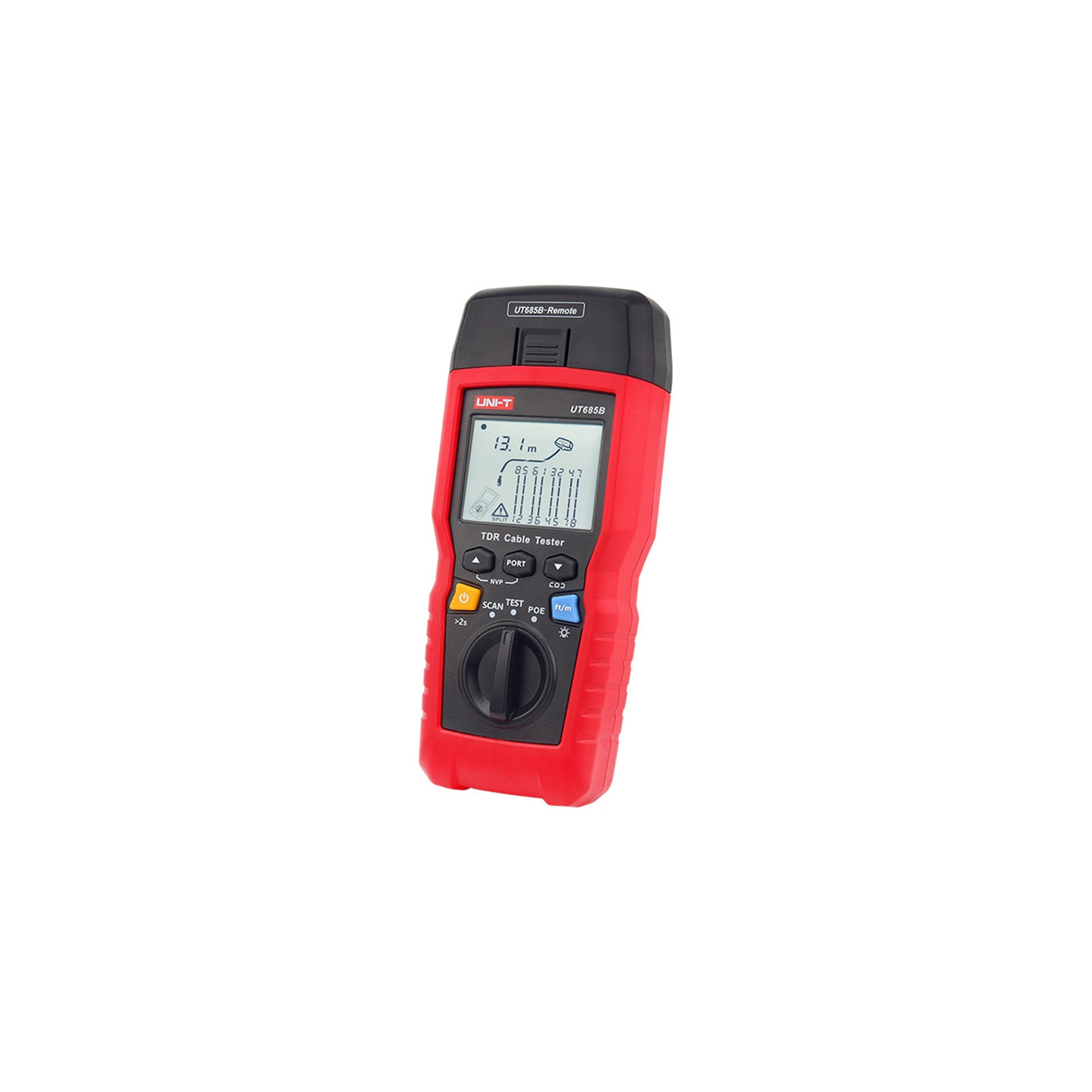

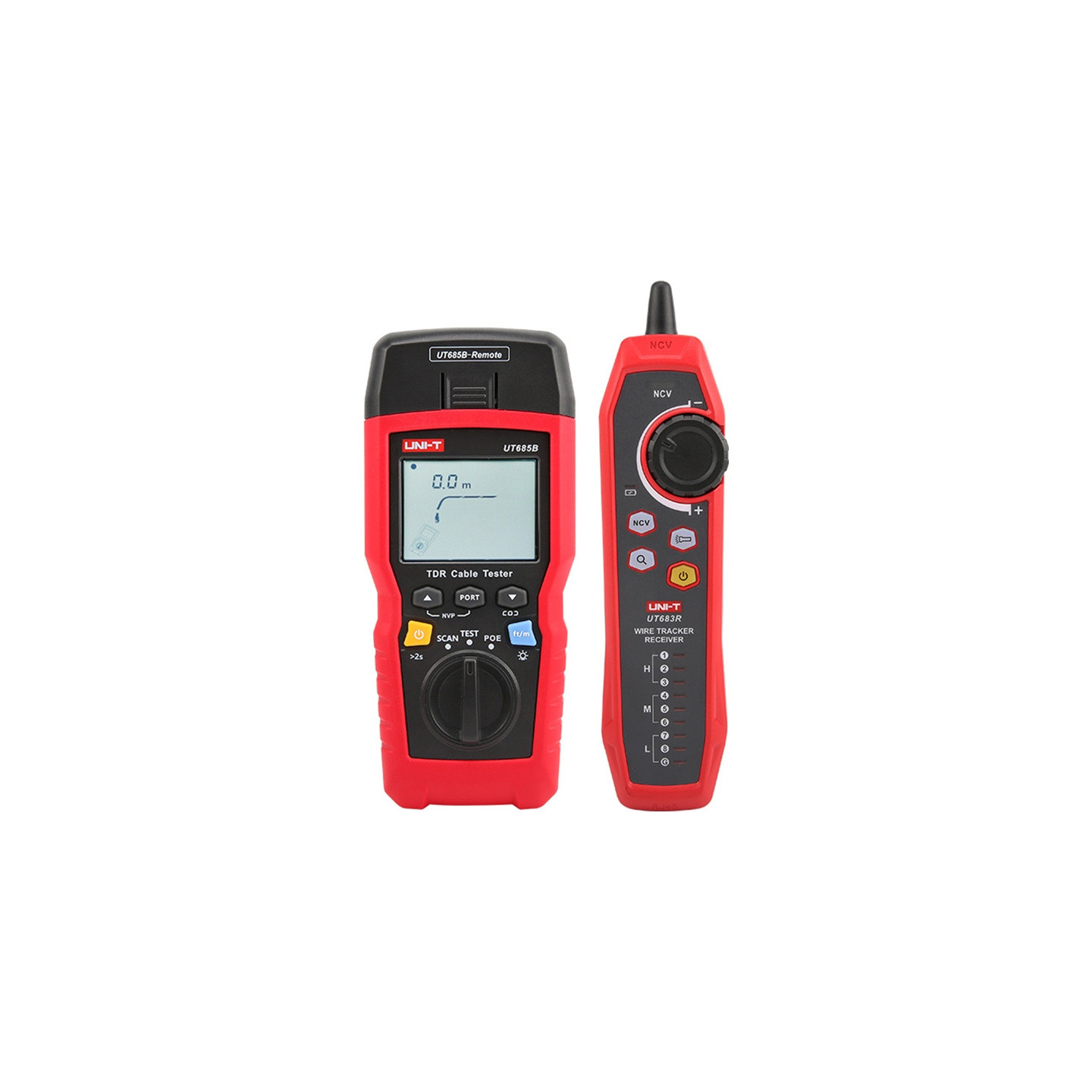

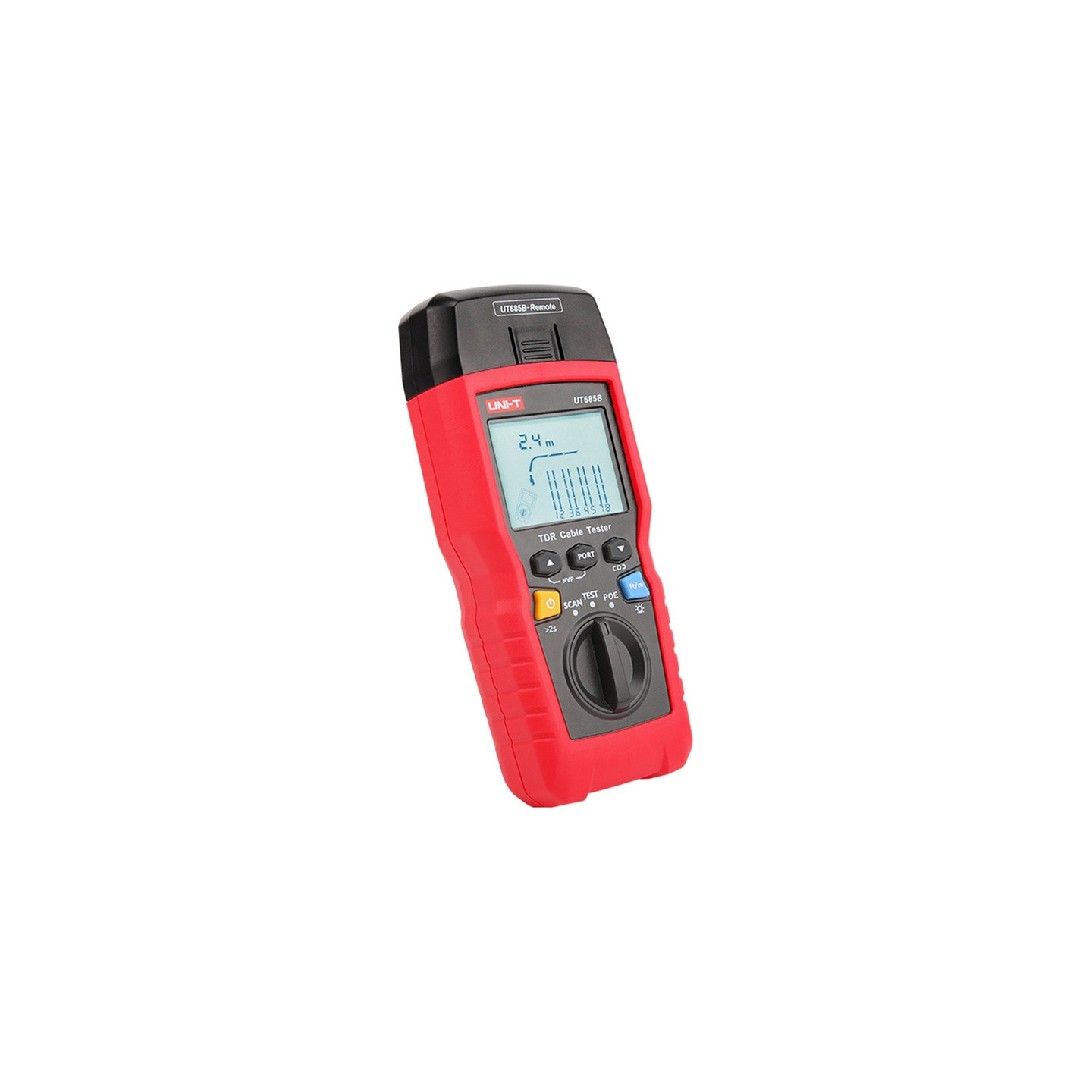

Uni-T UT685B Cable Tester Kit

Name: Uni-T UT685B Cable Tester Kit
Brand: UNI-T
SKU: 57962-uniw
Price: 166.64 EUR
Availability: BackOrder

166,64 €

AR PVN

Pieejams Pasūtīšanai

Product Parameters

Gross weight	840
Net weight	487
HS Code	9030390000
Quantity per carton	10 pcs.
Box length	20,50
Box width	15,00
Box height	8,00

Uni-T UT685B KIT cable tester

The Uni-T UT685B KIT is a multifunctional tester designed for the diagnosis, installation, and maintenance of low-voltage networks. It supports UTP, FTP, and SSTP twisted-pair cables, coaxial cables, and telephone lines, and thanks to its built-in RJ11 and RJ45 connectors and coaxial cable ports, it does not require additional adapters. The device allows for measuring cable length, locating faults, and mapping cabling to detect connection errors. The tester also offers cable location, Ethernet port testing, connection identification in 10M, 100M, and 1000M networks via the port blinking function, and PoE power detection compliant with 802.3AF/AT/BT standards. A clear 2.8" LCD screen, NCV function, input protection up to 70 V DC, automatic shutdown after approximately 10 minutes, and power supply via four AAA batteries enhance the convenience and safety of daily work.

Included

Cable tester
Receiver probe
RJ45 adapter cable
RJ11 adapter cable
RJ11 adapter cable with alligator clips
F-connector to F-connector coupler
4 AAA batteries
User manual

Specifications

Manufacturer	Uni-T
Model	UT685B KIT
Product type	TDR cable tester kit
Supported cable types	UTP, FTP, SSTP, coaxial (50 Ω / 75 Ω / 93 Ω)
Length measurement range	2.5–500 m
Measurement accuracy	±4% or 0.6 m
Resolution	0.3 m
PoE voltage detection range	DC 5–60 V (802.3af/at/bt)
Ethernet port test	Yes
Cable tracing location	Yes
Port flash function	Yes
NCV function	Yes
Input protection voltage	70 V DC
Display type	2.8" LCD display
Power supply	4 × 1.5 V AAA batteries
Auto-off timer	Approx. 10 min
Certifications	CE, UKCA, RoHS
