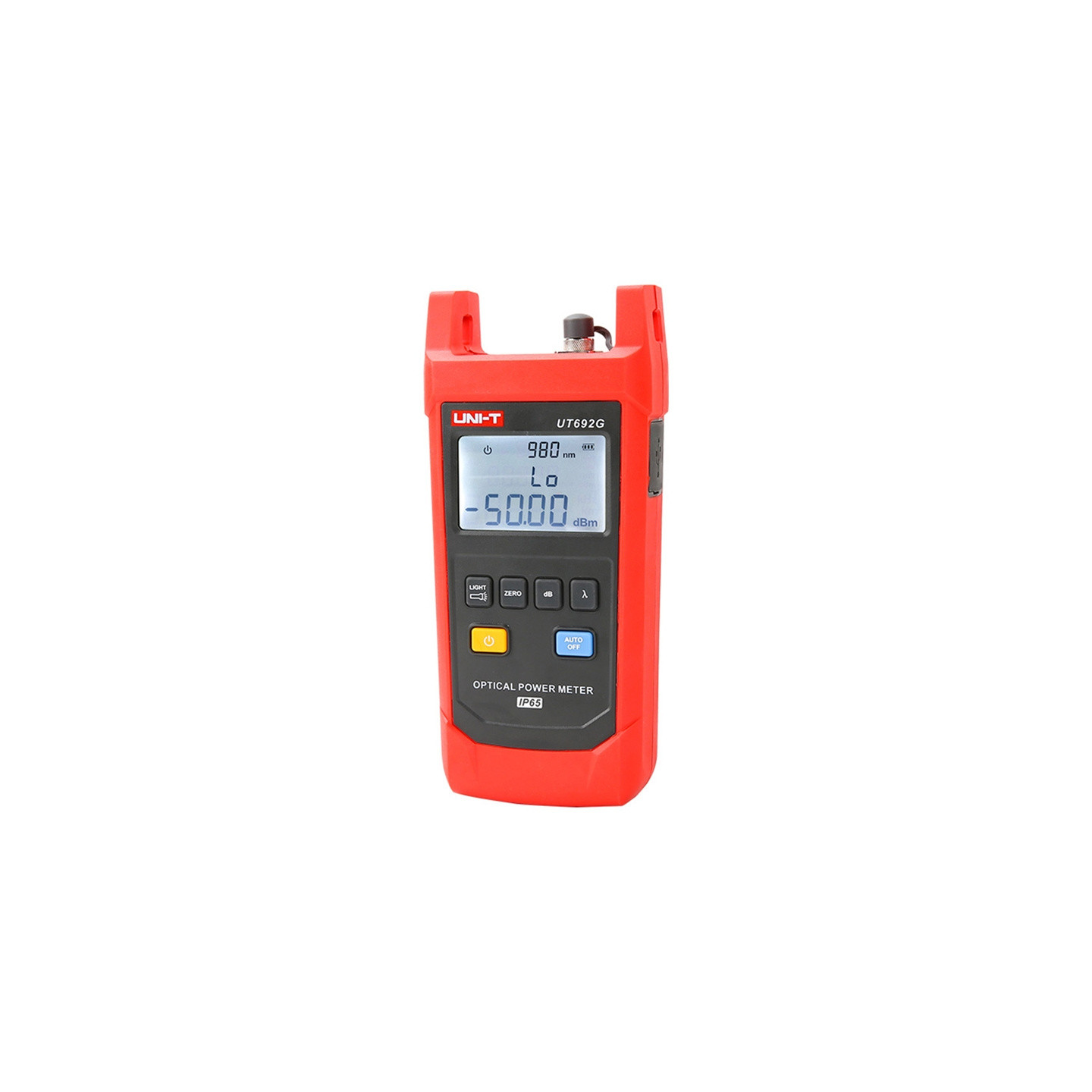

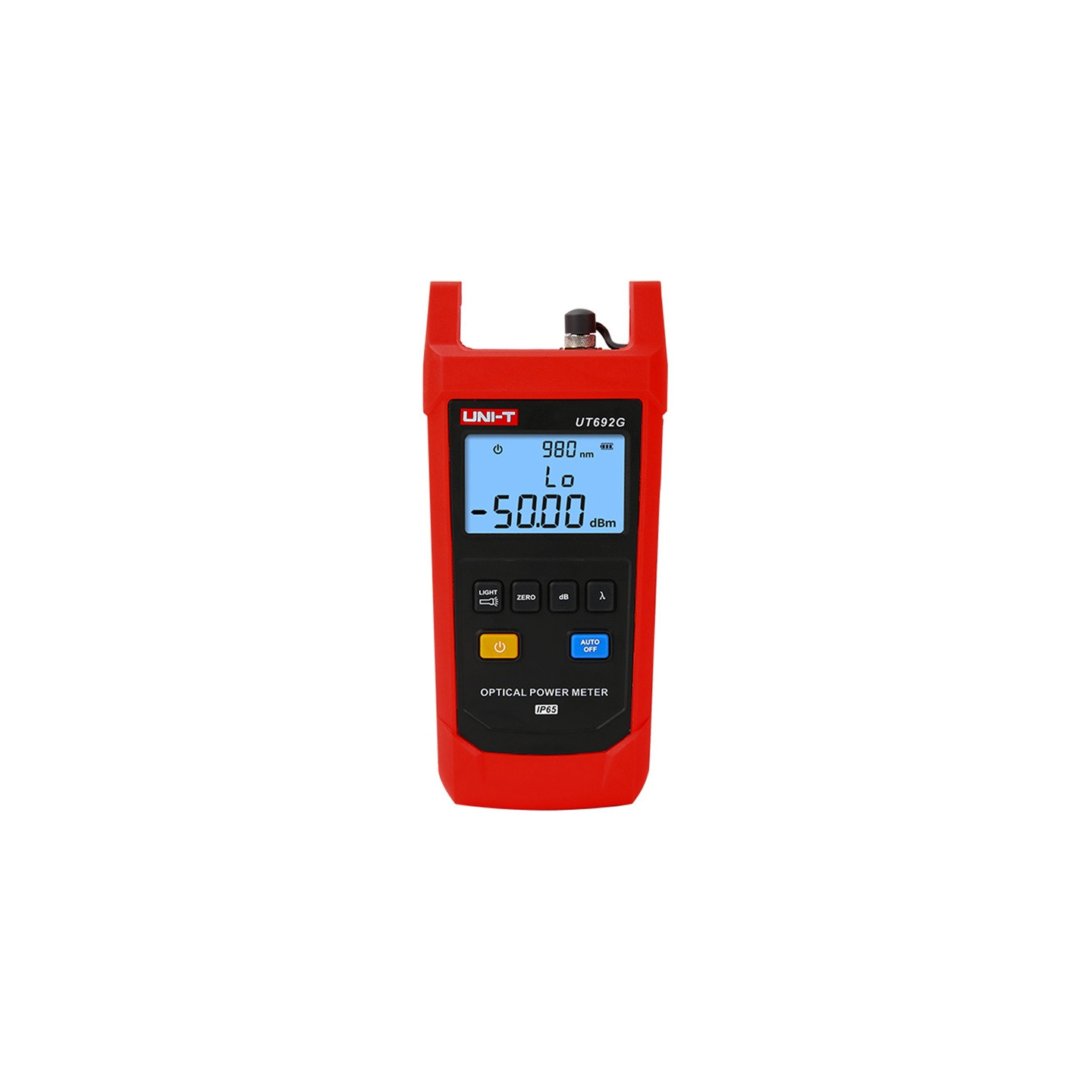

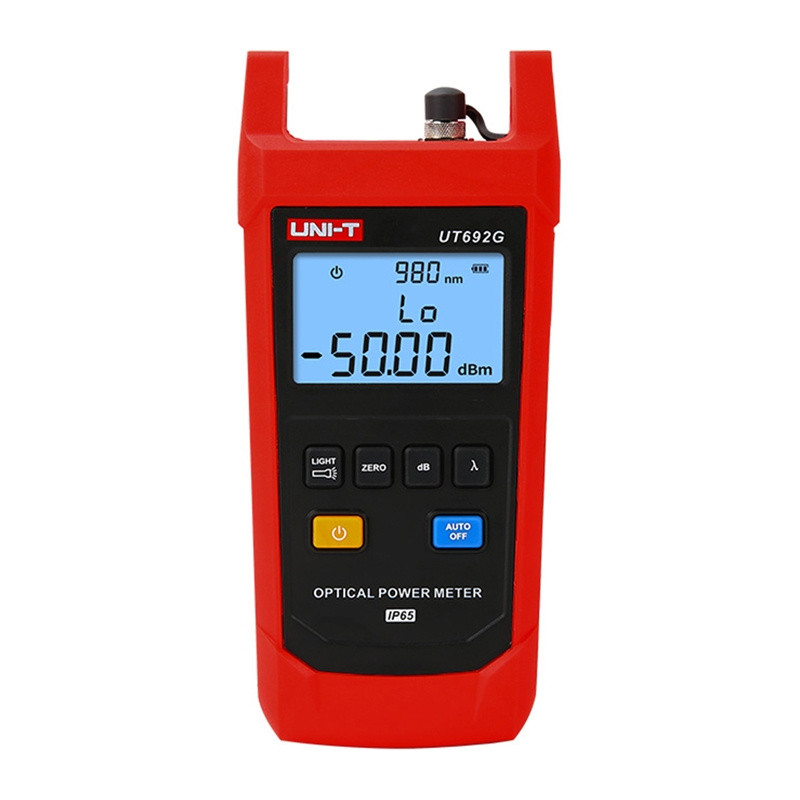

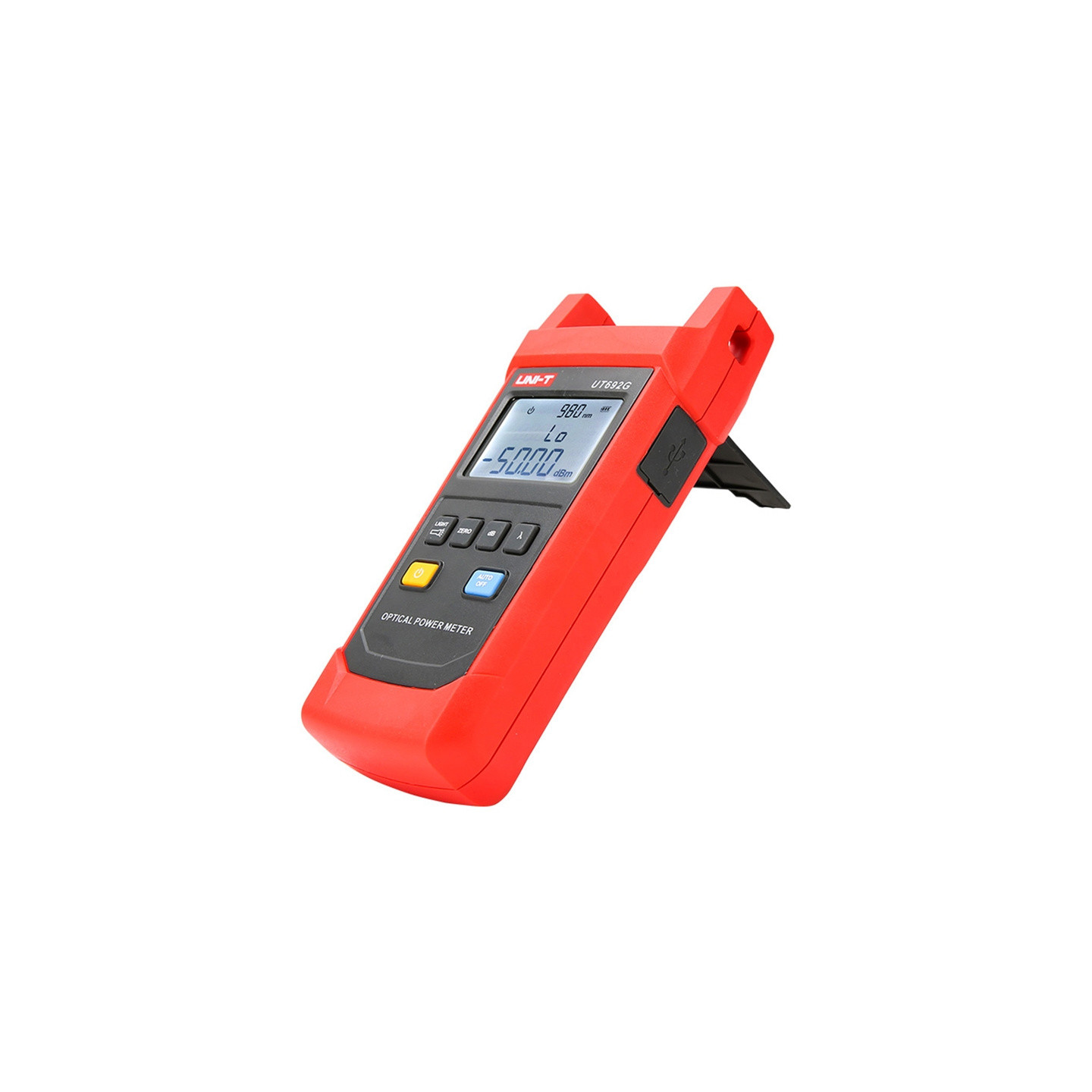

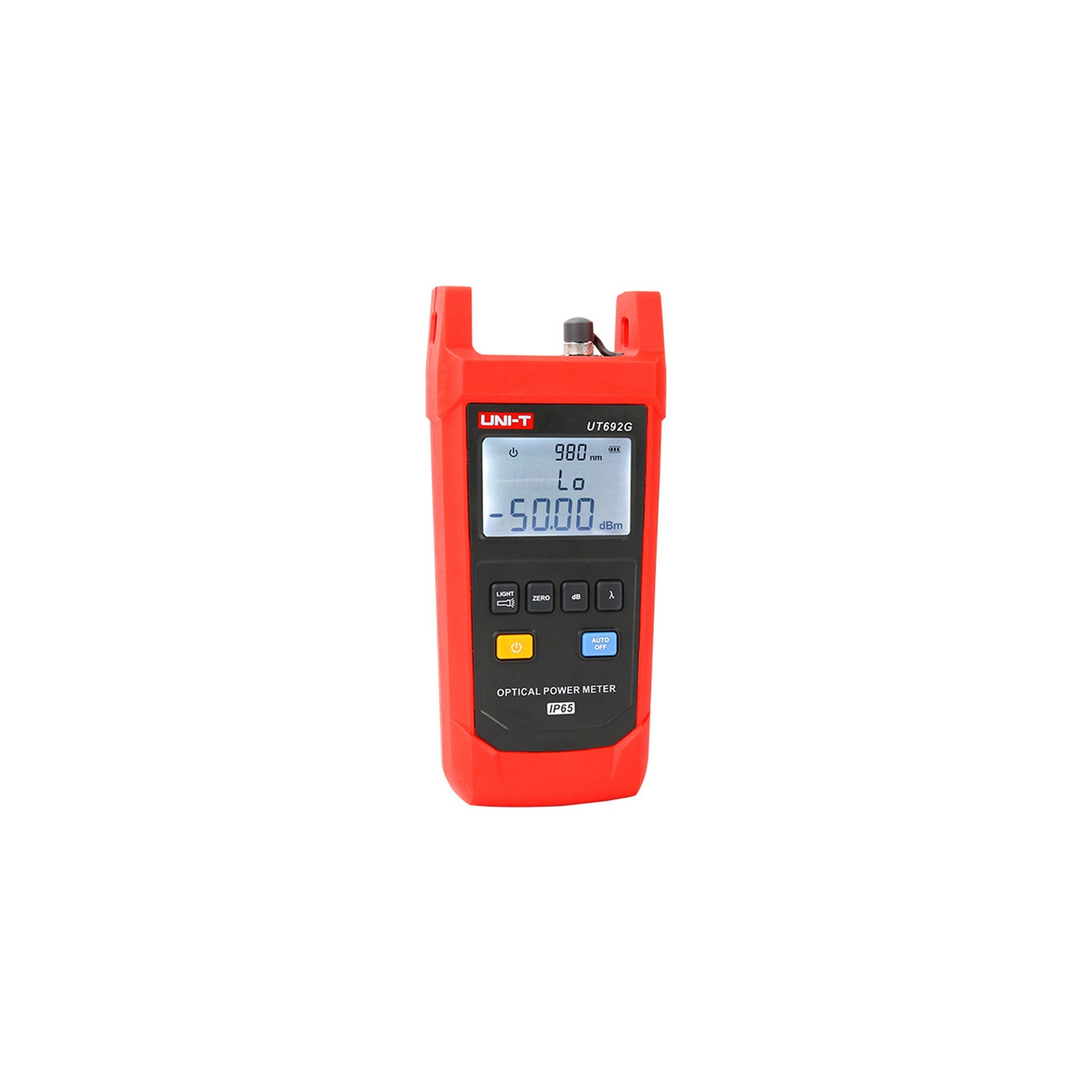

Uni-T UT692G fiber optic tester

The Uni-T UT692G is a fiber optic tester designed to measure optical power and signal loss in fiber optic networks. The model offers an extended measurement range from -50 to +26 dBm, making it ideal for working with higher-power signals. Support for wavelengths from 800 to 1700 nm, stored reference values, and an InGaAs sensor allow for quick device configuration and stable, repeatable measurement results.

Features for easier field work

The device is equipped with a backlit LCD display, data memory, and a user calibration function, which streamlines daily network diagnostics. The built-in flashlight improves working comfort in dimly lit areas, and the auto-off feature helps reduce power consumption. The IP65-rated housing protects against dust and splashes, and the device’s ability to withstand drops from up to 2 meters makes it well-suited for mobile use.

Included

Fiber optic tester
3 AA batteries
Carrying case
User manual

Specifications

Manufacturer	Uni-T
Model	UT692G
Product type	Optical power meter
Power measurement range	-50...26 dBm
Wavelength range	800–1700 nm
Calibrated wavelengths	850 nm / 980 nm / 1300 nm / 1310 nm / 1490 nm / 1550 nm / 1625 nm / 1650 nm
Measurement accuracy	±5%
Sensor type	InGaAs
Linear resolution	0.1%
Logarithmic resolution	0.01 dB
Data logging memory	60 data sets
Display type	Backlit LCD
Connector types	FC / SC / ST (2.5 mm adapter)
Power supply	3 × 1.5 V AA batteries
Operating time	≥60 hours
Protection and durability	IP65, 2 m drop resistance
Dimensions	189 × 87 × 45 mm
Weight	286 g
Certifications	CE, UKCA
