Uni-T LM320E Protractor

Name: Uni-T LM320E Protractor
Brand: UNI-T
SKU: 57930-uniw
Price: 31.38 EUR
Availability: BackOrder

31,38 €

AR PVN

Pieejams Pasūtīšanai

Product Parameters

Gross weight	300
Net weight	180
HS Code	9031802000
Quantity per carton	10 pcs.
Box length	11,50
Box width	10,50
Box height	3,50

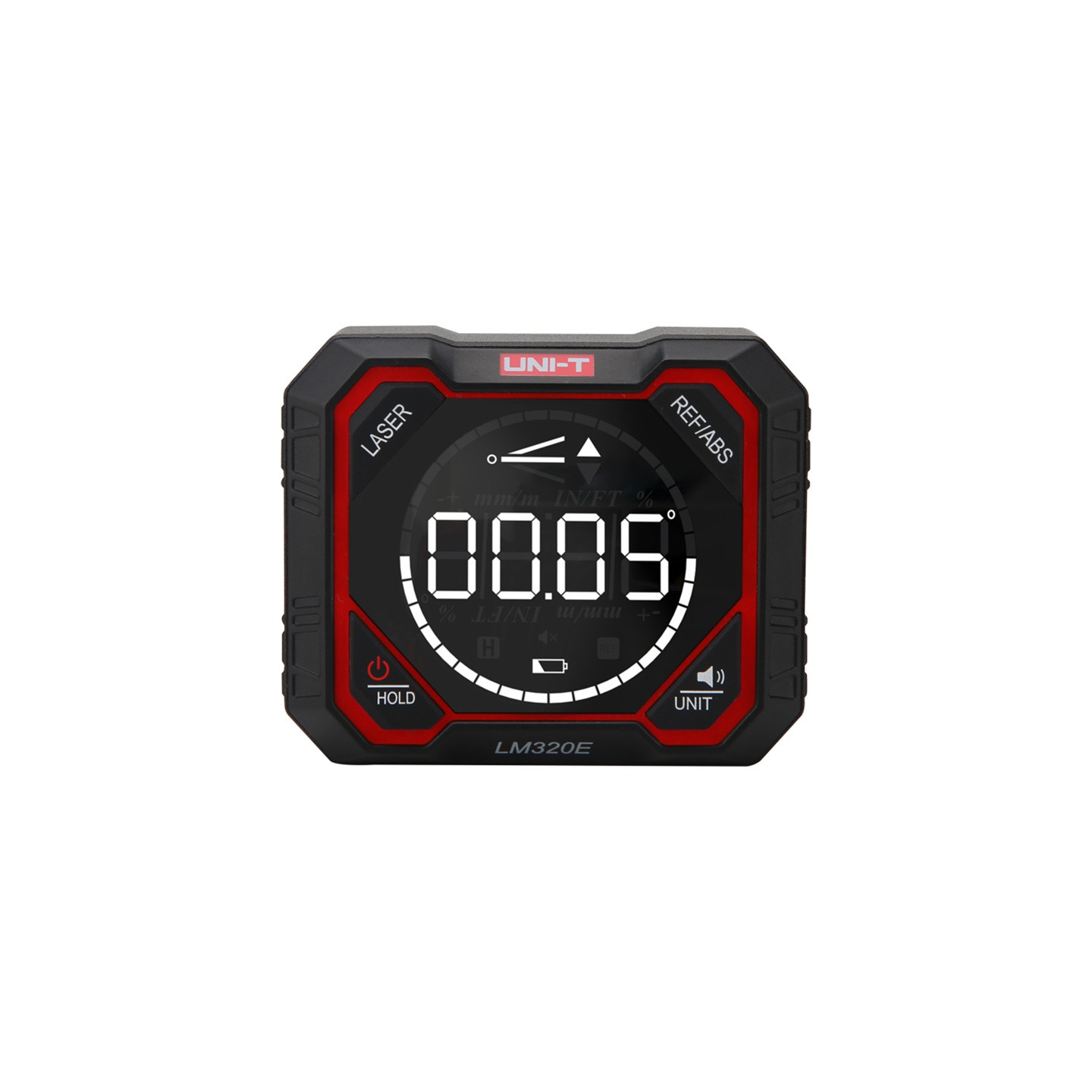

Uni-T LM320E Angle Measurer

The Uni-T LM320E Angle Measurer is an advanced angle measurement device equipped with a laser function that facilitates the establishment of reference lines. It offers measurement within a 4×90° range and features two laser lines, allowing for more precise spatial alignment of components. Support for various units and measurement modes increases its versatility, and the magnetic base ensures stable mounting. The backlit screen with auto-rotation makes it easy to read results, and the compact design makes the device well-suited for everyday use.

Included

Angle finder
USB-C cable
User manual

Specifications

Manufacturer	Uni-T
Model	LM320E
Type	Angle finder with laser
Measurement range	4 × 90°
Resolution	±0.05°
Accuracy	±0.2°
Repeatability	±0.2°
Units	°, %, mm/m, in/ft
Laser lines	2
Laser accuracy	±3 mm / 5 m
Operating time	Up to 8 h
Functions	Relative and absolute measurement, Data Hold, automatic screen rotation, backlight
Base	Double-sided magnetic
Power supply	1000 mAh rechargeable battery
Dimensions	83.5 x 70 x 35.5 mm
Weight	180 g
Certifications	CE, RoHS
