Uni-T UT336P Wireless Pressure Gauge Kit

Name: Uni-T UT336P Wireless Pressure Gauge Kit
Brand: UNI-T
SKU: 57926-uniw
Price: 121.33 EUR
Availability: BackOrder

121,33 €

AR PVN

Pieejams Pasūtīšanai

Product Parameters

Gross weight	2270
Net weight	370
HS Code	9030310090
Quantity per carton	1 pcs.
Box length	37,50
Box width	30,50
Box height	14,50

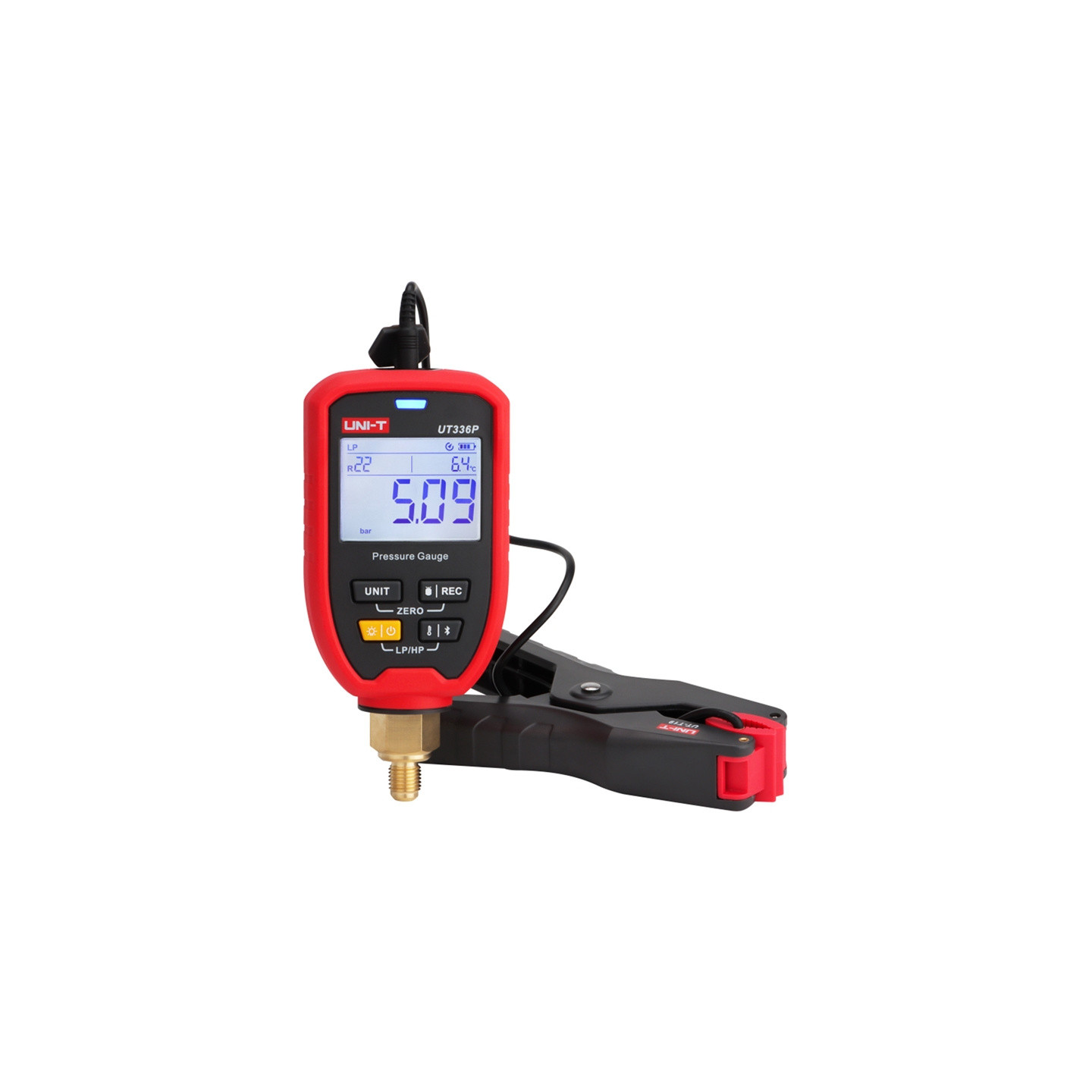

Uni-T UT336P Wireless Pressure Gauge Kit

The Uni-T UT336P Kit is a complete solution for working with refrigeration systems and heat pumps. It combines a wireless pressure gauge with a temperature probe, enabling simultaneous measurement of pressure and temperature and more accurate system diagnostics.

System Parameter Measurement and Analysis

The UT336P Kit offers a wide pressure measurement range in multiple units and temperature measurement from -50°C to 150°C. Connecting to the mobile app via Bluetooth allows for real-time data monitoring and analysis of parameters such as superheat and subcooling.

Features that make work easier

The device allows you to store up to 8,000 measurements and set a logging interval, which is useful for long-term monitoring. High and low pressure alarms, a backlit screen, and the ability to work offline enhance user convenience.

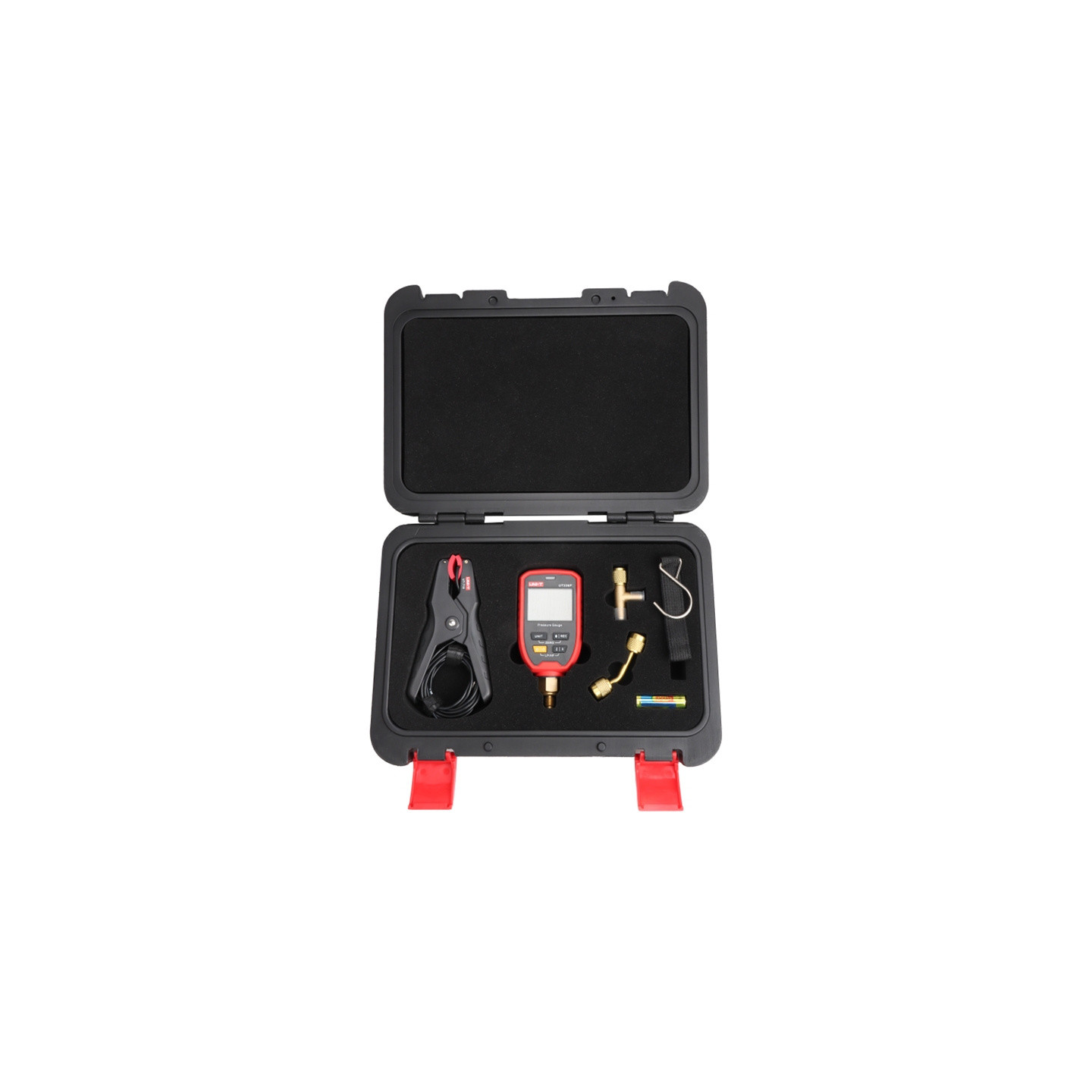

Included in the set

Wireless pressure gauge
Temperature probe
3 AA batteries
Wrist strap
Wrist strap
Tool kit
1/4" SAE tee
1/4" SAE elbow
User manual
Download guide

Specifications

Manufacturer	Uni-T
Model	UT336P Kit
Type	Wireless pressure gauge with temperature probe
Pressure range	-1 ~ 60 bar ±0.5% FS
Temperature range	-50°C ~ 150°C ±(0.5°C / 1°C)
Pressure Units	bar, kg/cm², cmHg, psi, inHg, kPa, MPa
Temperature Units	°C / °F
Data Log	8,000 measurements
Logging Interval	1 s ~ 1 h
Connectivity	Bluetooth
Supported Media	10 in the device / 90+ in the app
Features	Data Hold, data logging, high and low pressure alarms, LCD backlight, pressure zeroing, auto power off
Temperature port	3.5 mm
Connection	1/4" SAE
Protection rating	IP54
Power supply	3x AA batteries
Dimensions	145 x 68 x 39 mm
Weight	250 g
Certifications	CE, RoHS
