Uni-T UT336P Wireless Pressure Gauge

Name: Uni-T UT336P Wireless Pressure Gauge
Brand: UNI-T
SKU: 57924-uniw
Price: 78.99 EUR
Availability: BackOrder

78,99 €

AR PVN

Pieejams Pasūtīšanai

Product Parameters

Gross weight	580
Net weight	250
HS Code	9030310090
Quantity per carton	5 pcs.
Box length	18,50
Box width	13,50
Box height	9,00

Uni-T UT336P wireless pressure gauge

The Uni-T UT336P wireless pressure gauge is a tool designed for use with refrigeration systems and heat pumps. It enables accurate pressure measurement and long-term monitoring of system operating parameters, facilitating the diagnosis and servicing of HVAC systems.

Real-time system monitoring

The UT336P model allows for pressure measurement in multiple units and supports a wide range of refrigerants. Thanks to Bluetooth connectivity and a mobile app, you can analyze data in real time and check parameters such as superheat and subcooling (using a temperature probe). The ability to store up to 8,000 measurements and the option to operate offline are ideal for long-term monitoring.

Features to facilitate service work

The device offers high and low pressure alarms, an adjustable data logging interval, and a backlit screen, which improves user comfort. Built-in LED indicators show the operating status, and the rugged design with an IP54 rating allows the device to be used in various conditions.

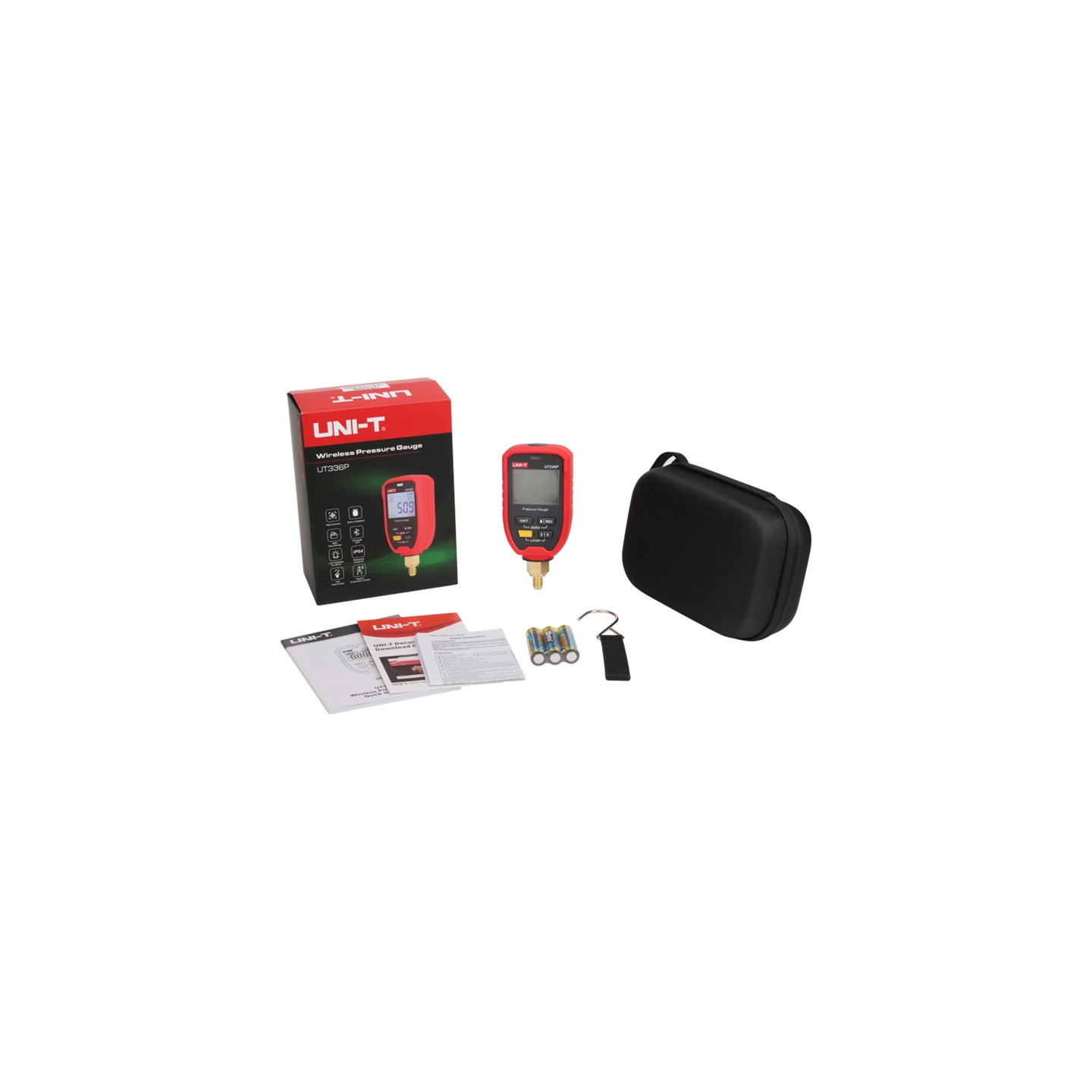

Included

Wireless pressure gauge
3 AA batteries
Carrying case
Wrist strap
User manual

Specifications

Manufacturer	Uni-T
Model	UT336P
Product type	Wireless pressure gauge
Pressure measurement range	-1 – 60 bar ±0.5% FS
Pressure units	bar, kg/cm², cmHg, psi, inHg, kPa, MPa
Temperature units	°C, °F
Data logging memory	8000 measurements
Logging interval range	1 s – 1 h
Connectivity	Bluetooth (mobile app)
Supported media types	10 on the device, 90+ via app
Functions	Data Hold, data logging, high and low pressure alarms, LCD backlight, pressure zeroing, auto-off, firmware update
Temperature probe port	3.5 mm (compatible with UT-T19)
Connector thread	1/4" SAE
Protection rating	IP54
Power supply	3 × AA batteries
Dimensions	145 × 68 × 39 mm
Weight	250 g
Certifications	CE, RoHS
