Uni-T UT261A Motor Phase and Rotation Direction Tester

Name: Uni-T UT261A Motor Phase and Rotation Direction Tester
Brand: UNI-T
SKU: 57920-uniw
Price: 81.51 EUR
Availability: BackOrder

81,51 €

AR PVN

Pieejams Pasūtīšanai

Product Parameters

Gross weight	440
Net weight	160
HS Code	9030310090
Quantity per carton	20 pcs.
Box length	21,50
Box width	15,00
Box height	5,50

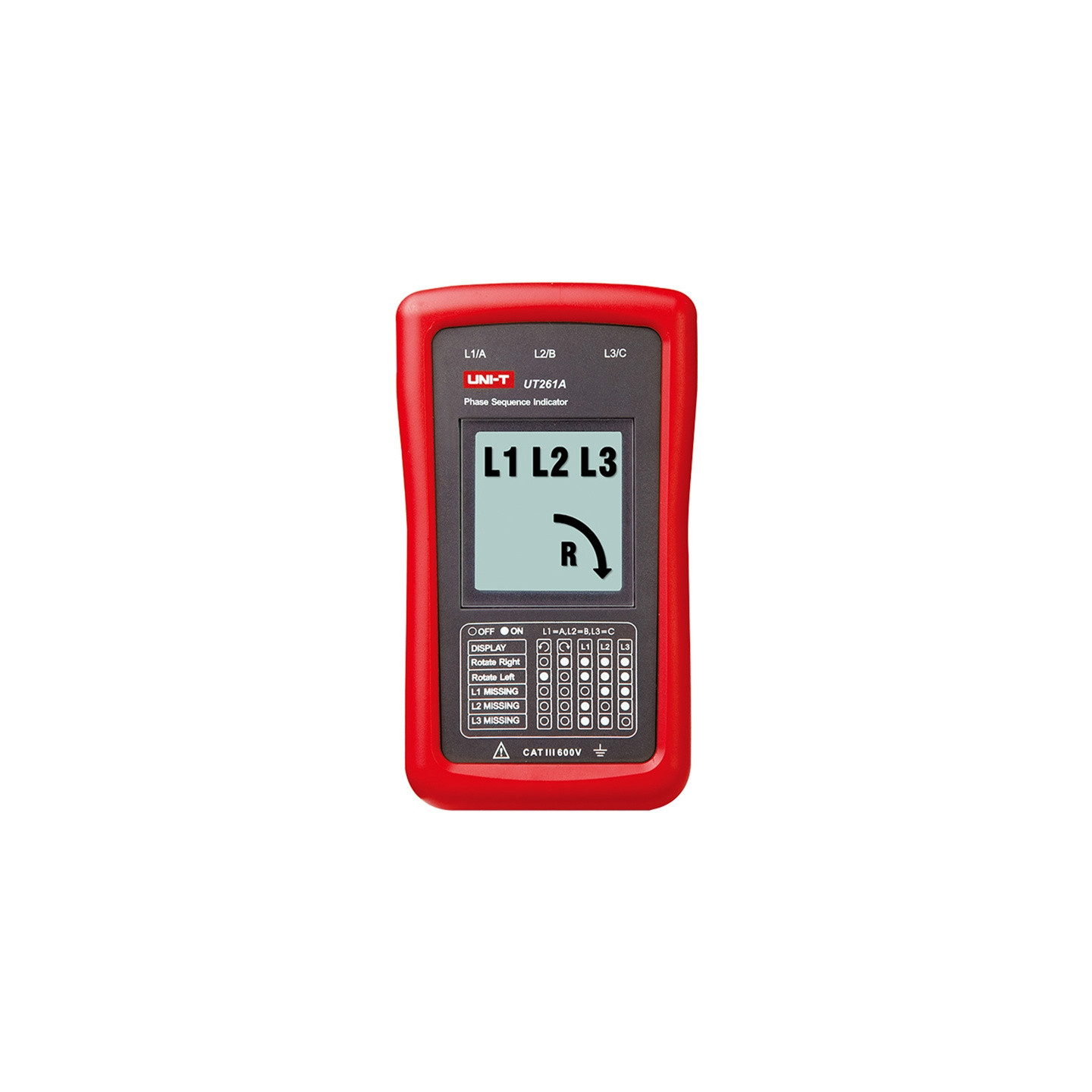

Uni-T UT261A Phase Sequence and Motor Rotation Tester

The Uni-T UT261A is a compact phase sequence tester designed for quick inspection of three-phase installations. The device measures AC voltage in the range of 40–690 V at frequencies of 15–400 Hz, determines phase sequence, and detects missing phases, with results displayed on an easy-to-read LCD screen. Powered directly from the circuit under test, it requires no batteries and is ready for use at any time. Its compact dimensions of 123 × 71 × 29 mm, weight of 160 g, and included test leads with alligator clips facilitate transport, quick connection, and convenient use during daily electrical installation diagnostics.

Included

Phase sequence indicator
Test leads with alligator clips x3
Carrying case
User manual

Specifications

Manufacturer	Uni-T
Model	UT261A
Type	Phase sequence indicator
AC Voltage	40V ~ 690V
Frequency	15Hz ~ 400Hz
Operating current	< 1mA
Functions	Phase sequence indicator, phase loss indicator
Power supply	From the circuit under test
Dimensions	123 x 71 x 29 mm
Weight	160 g
Color	Red and gray
Certifications	CE, UKCA, cETLus
