Uni-T UT161E Digital Multimeter

Name: Uni-T UT161E Digital Multimeter
Brand: UNI-T
SKU: 57842-uniw
Price: 131.33 EUR
Availability: InStock

131,33 €

AR PVN

Ir Noliktavā

Product Parameters

Gross weight	840
Net weight	400
HS Code	9030310090
Quantity per carton	20 pcs.
Box length	22,00
Box width	16,00
Box height	7,00

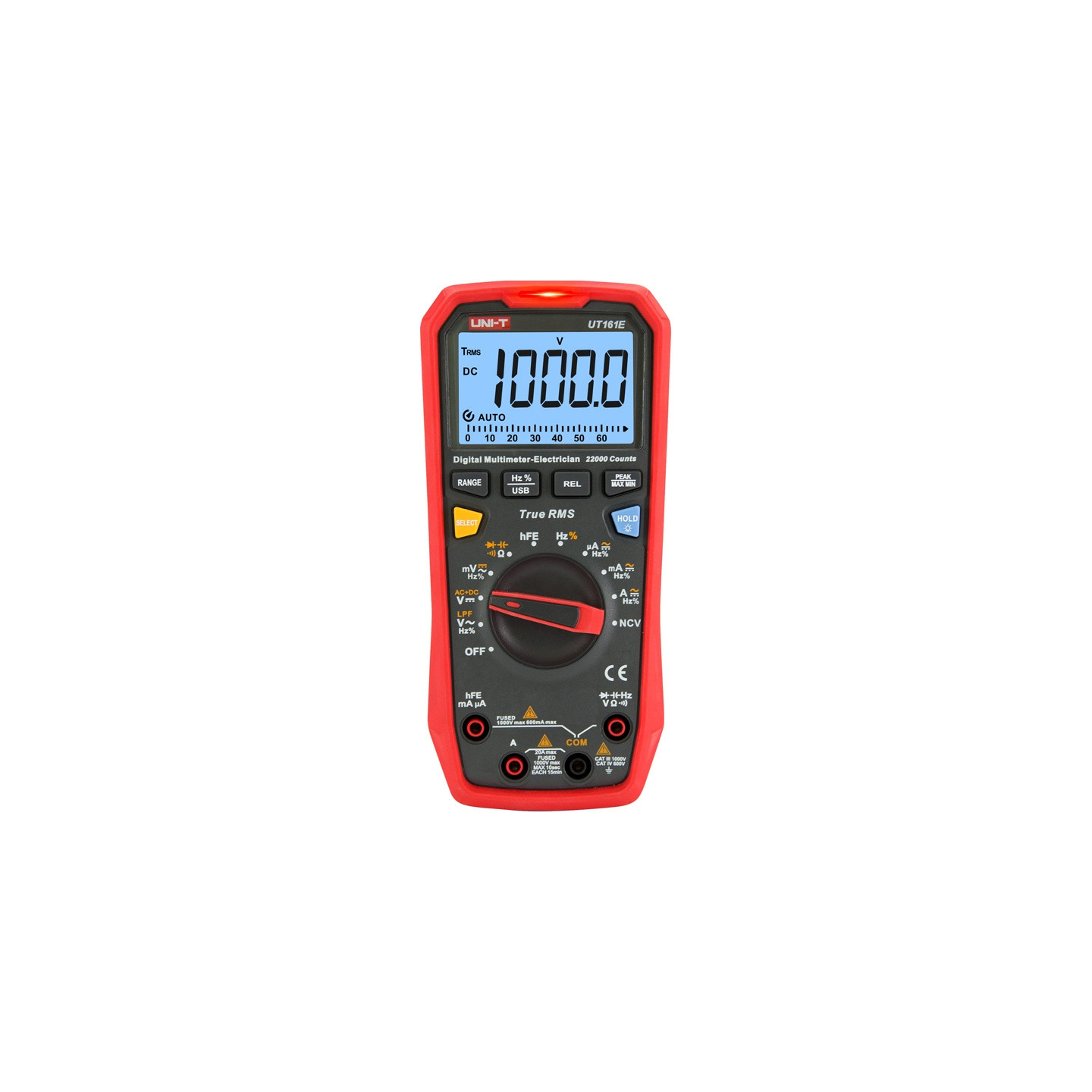

Uni-T UT161E digital multimeter

The Uni-T UT161E is the most advanced model in the UT161 series, designed for professional applications requiring high accuracy and a wide range of measurements. The device can measure voltages up to 1000 V and currents up to 20 A, and offers extended ranges for resistance, capacitance, and frequency, making it ideal for working with more demanding electrical and electronic systems. The True RMS function and LPF (low-pass filter) help ensure stable and accurate results even with more complex signals.

Precise readings and convenient data analysis

The UT161E is equipped with Max/Min, Peak Hold, and Relative Mode functions, which facilitate real-time parameter analysis. The high-resolution 22,000-count display, along with an extensive bar graph, ensures excellent readability of results and greater reading precision. An additional advantage is USB communication, which allows for data storage and analysis on a computer, enhancing convenience during service and diagnostic work.

Included

Digital multimeter
Test leads (1 pair)
USB cable
Multifunction adapter
4 AAA batteries
User manual

Specifications

Manufacturer	Uni-T
Model	UT161E
Product type	True RMS digital multimeter
DC voltage range	1000 V ±(0.05% + 5)
AC voltage range	1000 V ±(0.8% + 10)
DC current range	20 A ±(0.5% + 10)
AC current range	20 A ±(0.8% + 10)
Resistance measurement range	220 MΩ ±(0.5% + 10)
Capacitance measurement range	220 mF ±(3.0% + 5)
Frequency range	220 MHz ±(0.01% + 5)
Duty cycle range	0.1% – 99.9% ±(2.0% + 5)
Maximum display reading	22000
AC bandwidth	40 Hz – 10 kHz
Functions	True RMS, LPF filter, diode test, continuity test, Data Hold, Relative mode, Max/Min, Peak Hold, backlight, bar graph, USB communication
Measurement category	CAT III 1000V / CAT IV 600V
Power supply	4 × 1.5 V AAA batteries
Dimensions	190 × 90 × 50 mm
Weight	350 g
Certifications	CE, UKCA, cETLus
