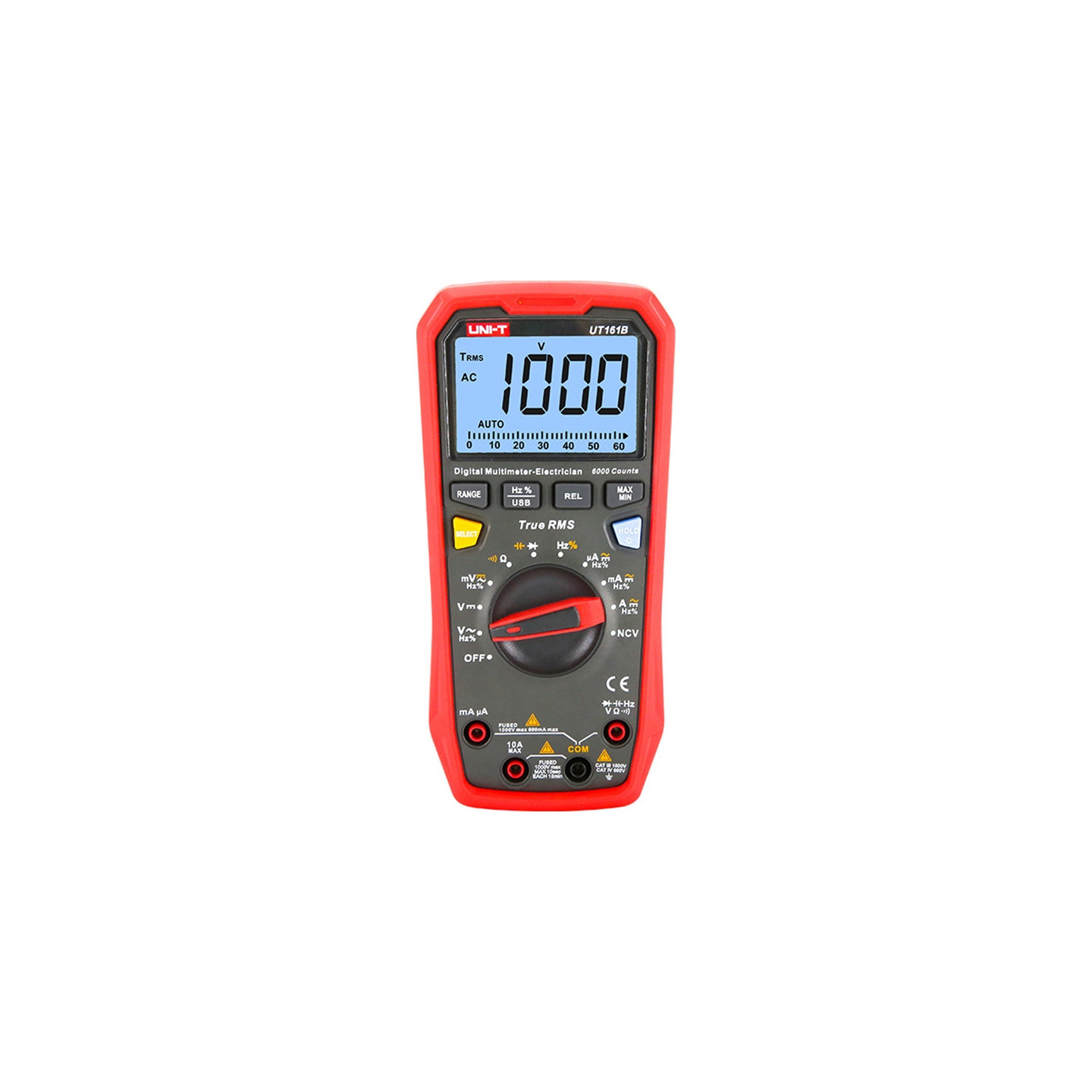

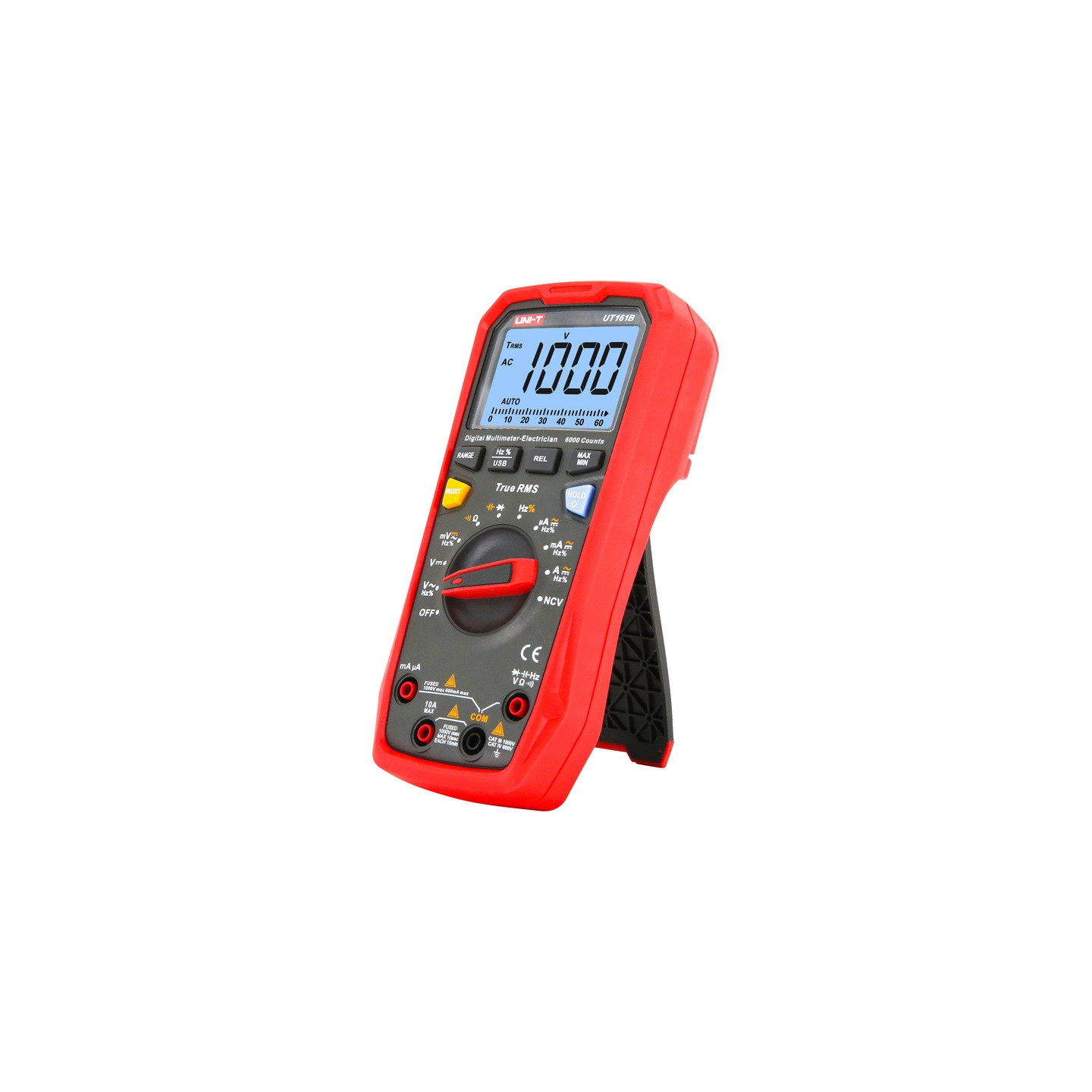

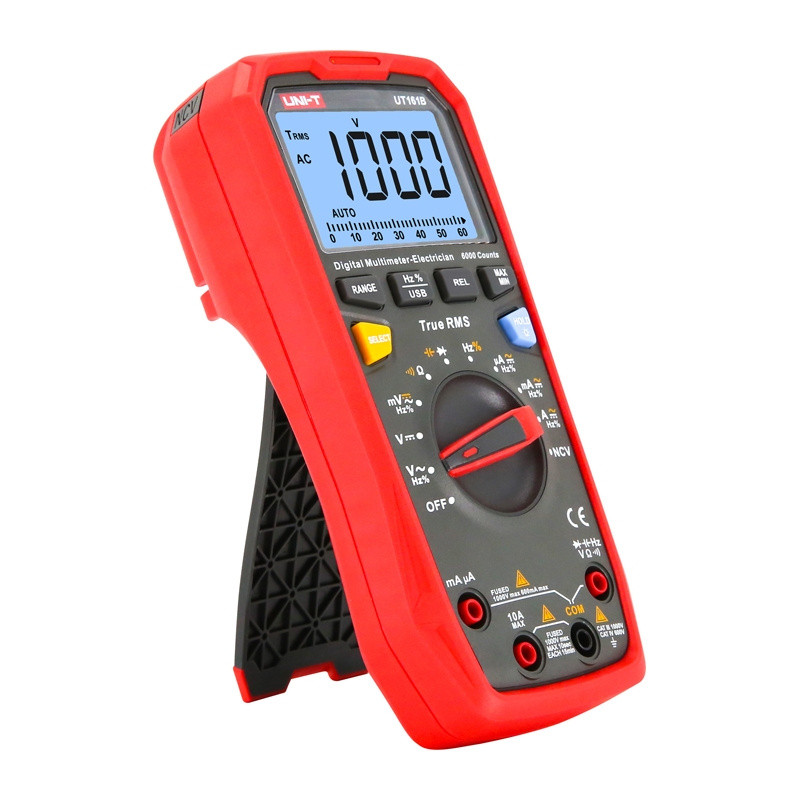

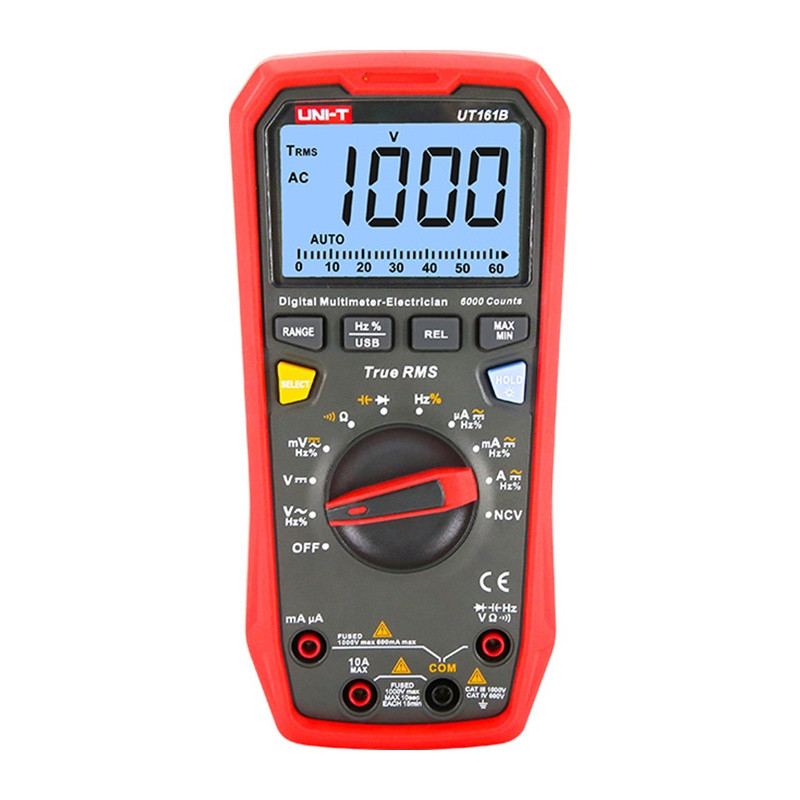

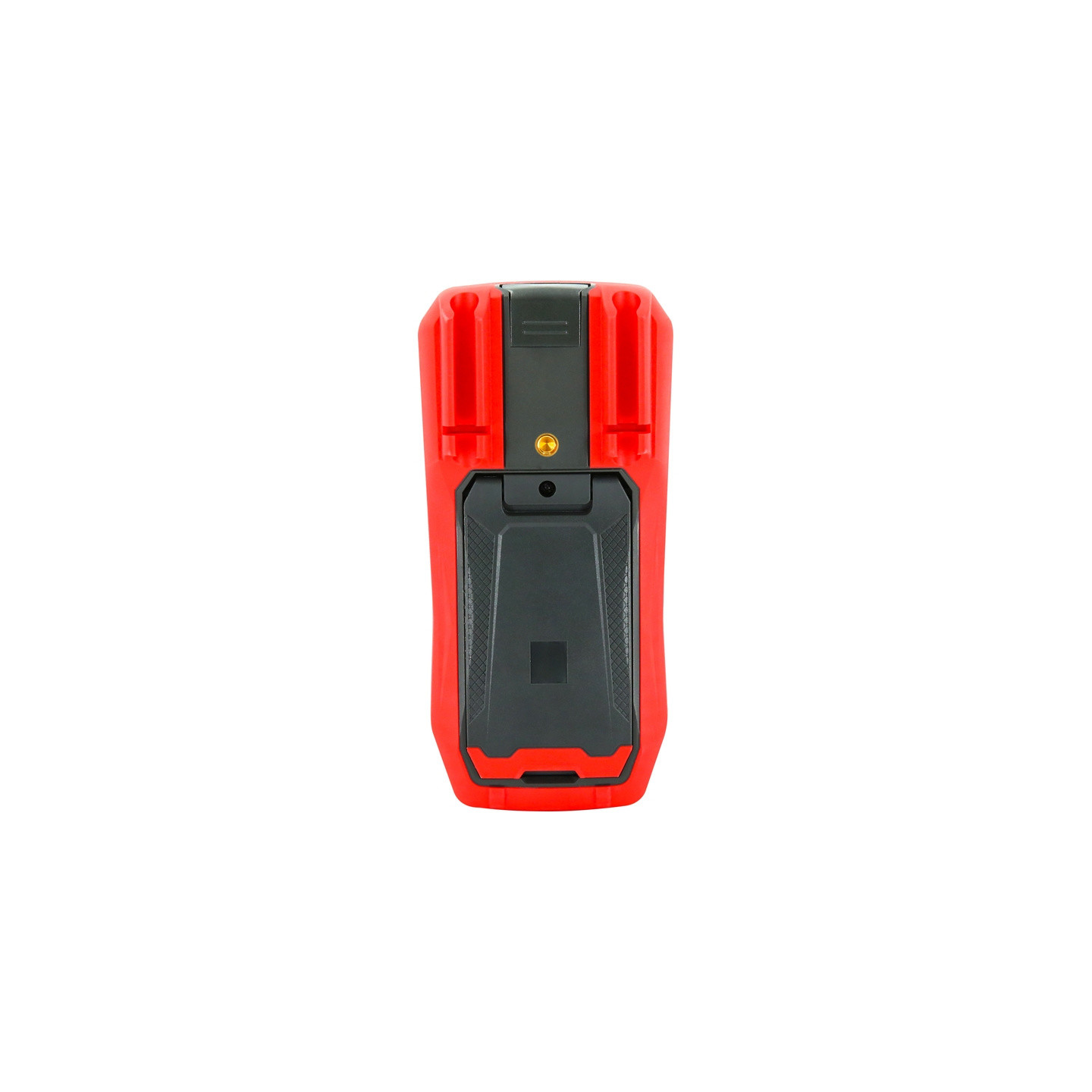

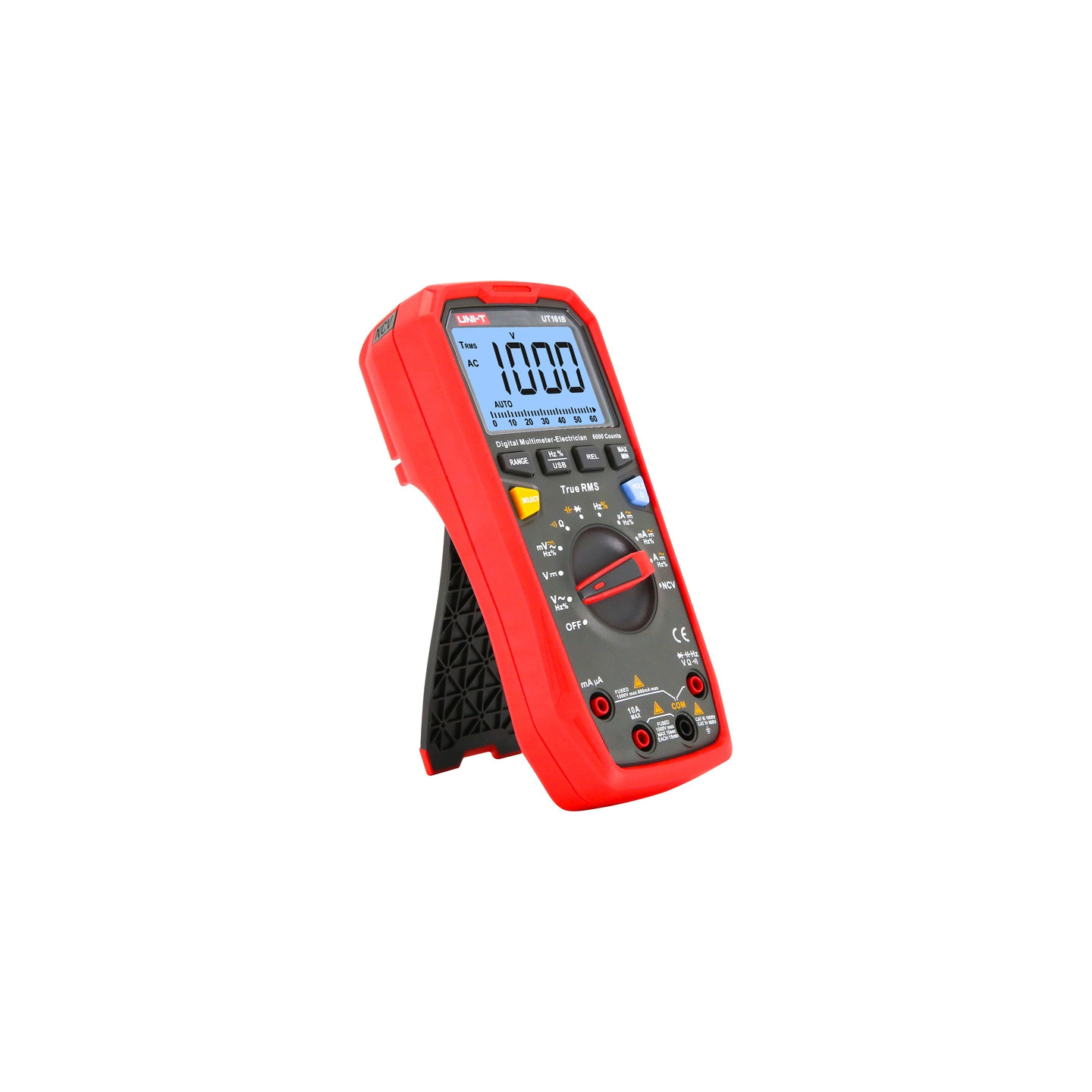

Uni-T UT161B Digital Multimeter

Name: Uni-T UT161B Digital Multimeter
Brand: UNI-T
SKU: 57840-uniw
Price: 72.89 EUR
Availability: InStock

72,89 €

AR PVN

Ir Noliktavā

Product Parameters

Gross weight	770
Net weight	350
HS Code	9030310090
Quantity per carton	20 pcs.
Box length	22,00
Box width	16,00
Box height	7,50

Uni-T UT161B universal digital multimeter

The Uni-T UT151A is a practical digital multimeter designed for basic maintenance work, system inspections, and the diagnosis of electrical and electronic devices. The device measures AC/DC voltage up to 600 V, current up to 10 A, and resistance up to 200 MΩ, making it suitable for both simple home repairs and more demanding workshop tasks. The easy-to-read display with a maximum reading of 2000 facilitates quick reading of results, and the compact housing fits comfortably in the hand.

Features for ease of use and safety

The UT151A model is equipped with manual range selection, a Data Hold function, a continuity test, a diode test, and an hFE transistor test. An additional capacitance measurement jack streamlines work with capacitors, while auto-off and a low-battery indicator enhance the convenience of daily use. Compliance with safety categories CAT II 600V and CAT III 300V allows for safe performance of typical electrical measurements.

Included

Digital multimeter
4 AAA batteries
Test leads
USB cable
User manual

Specifications

Manufacturer	Uni-T
Model	UT161B
Type	True RMS digital multimeter
DC voltage	1000V ±(0.5%+3)
AC Voltage	1000V ±(1.0%+3)
DC Current	10A ±(1.0%+2)
AC Current	10A ±(1.2%+5)
Resistance	60MΩ ±(1.0%+2)
Capacitance	60mF ±(3.0%+5)
Frequency	10 MHz ±(0.1%+4)
Duty cycle	0.1% ~ 99.9% ±(2.0%+5)
Maximum reading	6000
AC bandwidth	40 Hz ~ 500 Hz
Functions	True RMS, NCV, diode test, continuity test, Data Hold, Relative mode, Max/Min, backlight, bar graph, USB communication
Power supply	4x 1.5V AAA batteries
Dimensions	190 × 90 × 50 mm
Weight	350 g
Safety	CAT III 1000V / CAT IV 600V
Certifications	CE, UKCA, cETLus
