Uni-T UT139A True RMS Digital Multimeter

Name: Uni-T UT139A True RMS Digital Multimeter
Brand: UNI-T
SKU: 57835-uniw
Price: 41.37 EUR
Availability: InStock

41,37 €

AR PVN

Ir Noliktavā

Product Parameters

Gross weight	540
Net weight	354
HS Code	9030310090
Quantity per carton	20 pcs.
Box length	21,50
Box width	16,00
Box height	5,50

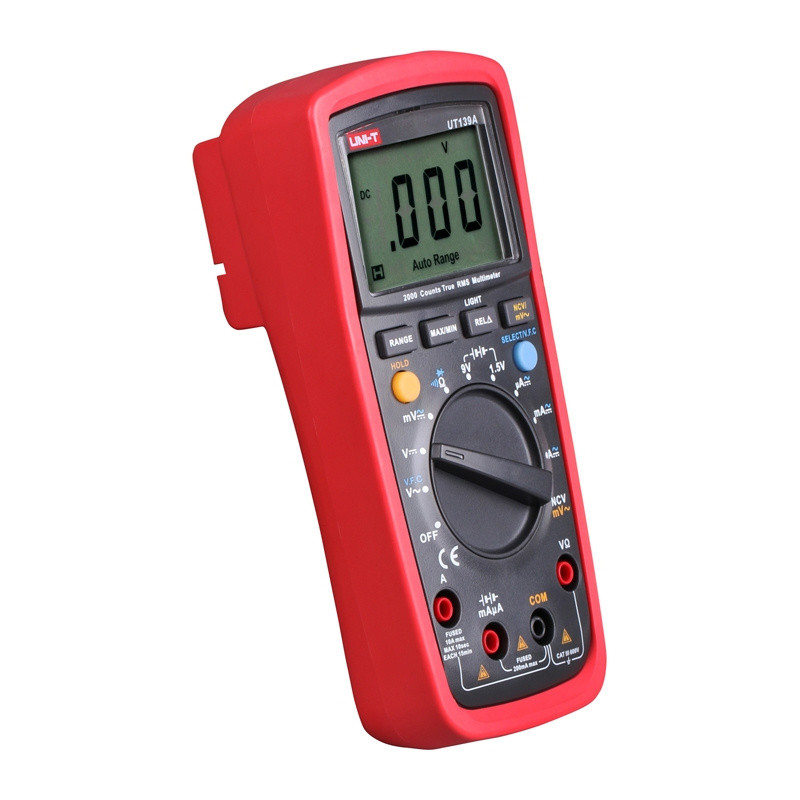

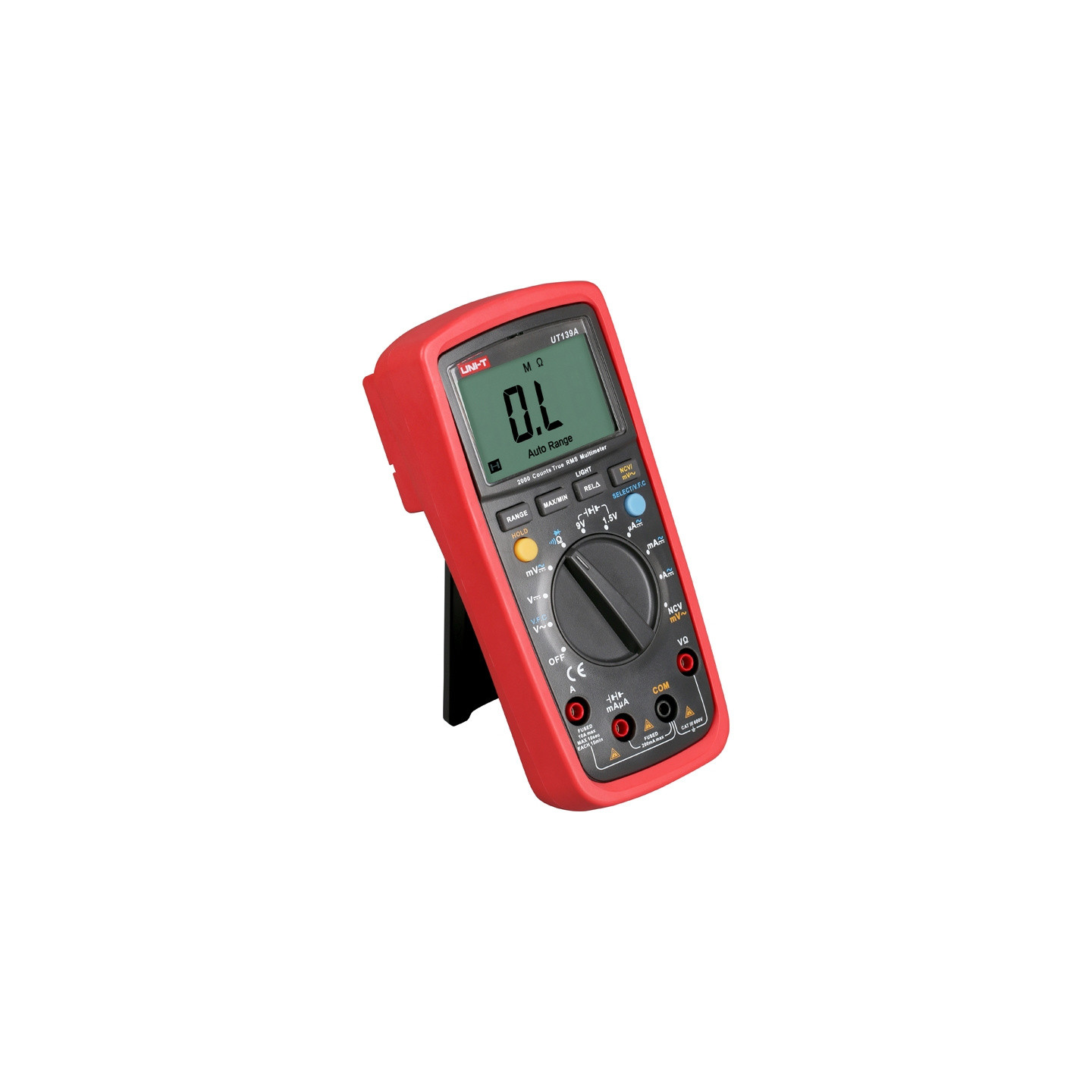

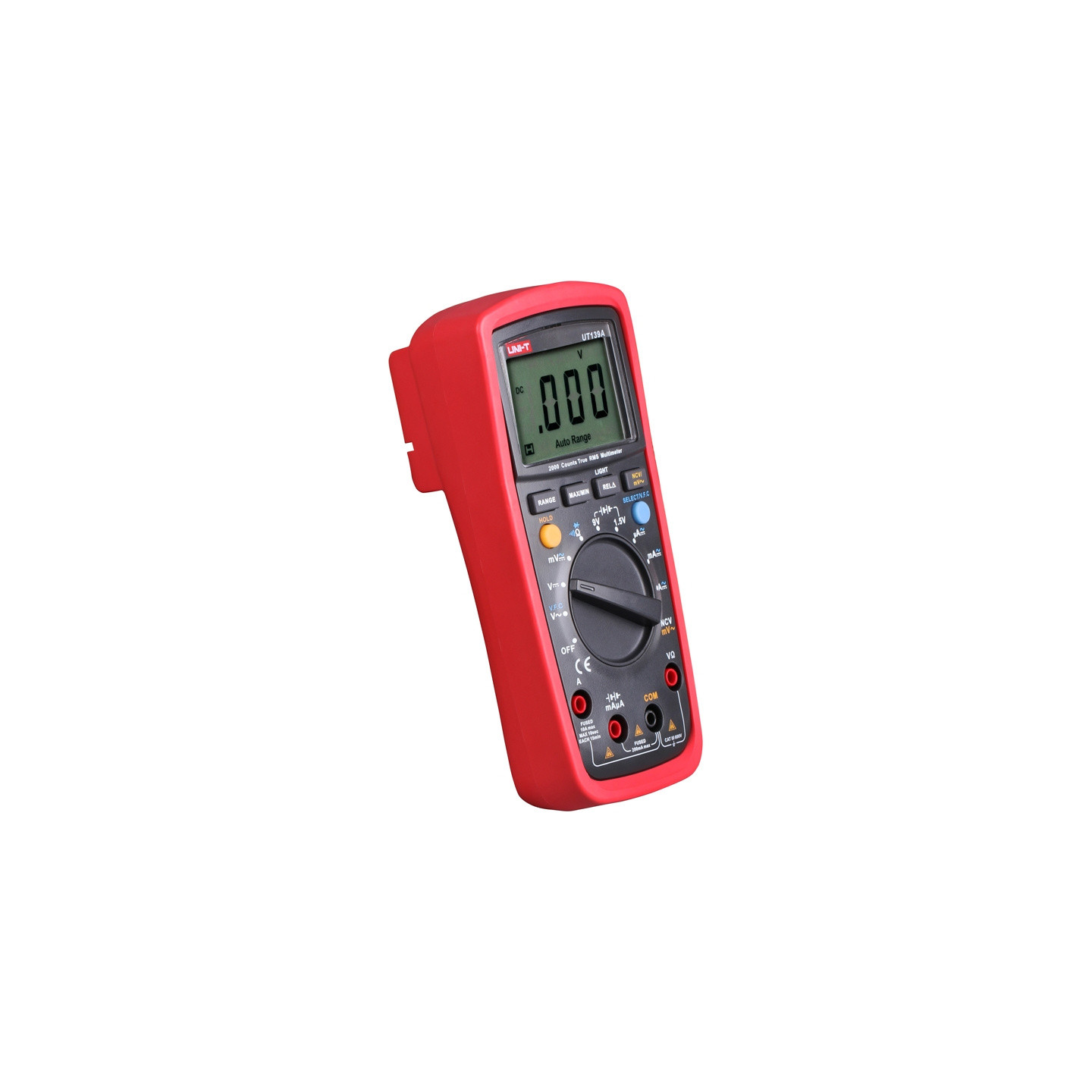

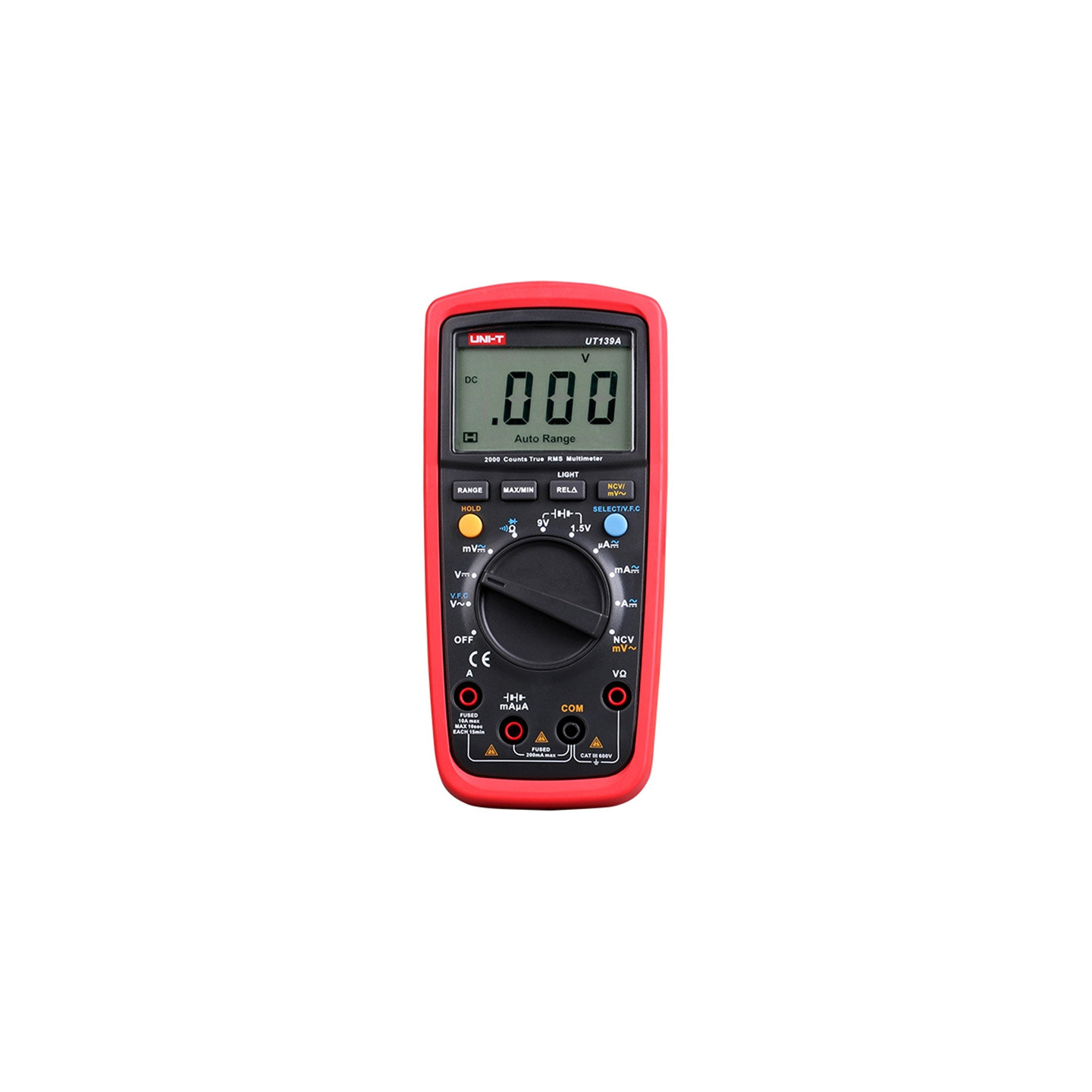

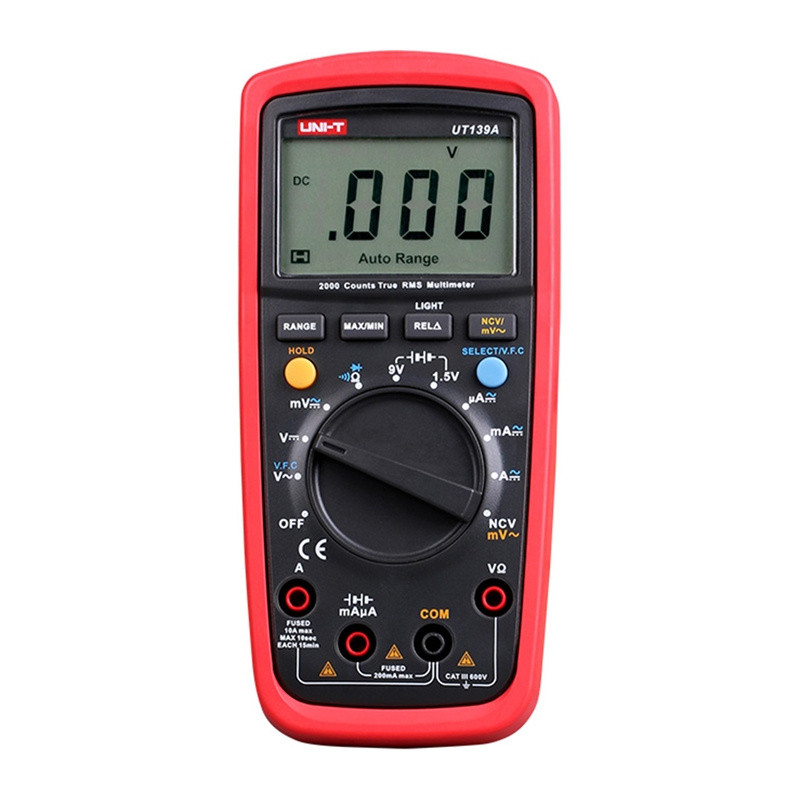

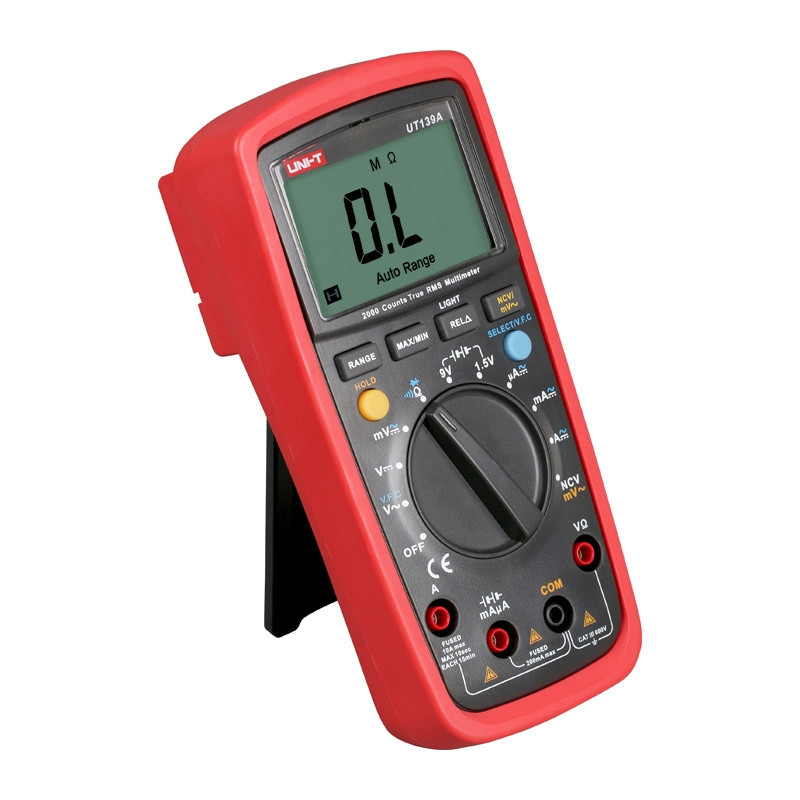

Uni-T UT139A True RMS digital multimeter

The Uni-T UT139A is a True RMS digital multimeter designed for electricians who need a convenient and safe tool for everyday measurements. The device operates in CAT III 600V category, offers an NCV function for quick inspection of the installation, and features an easy-to-read display supported by a 31-segment analog bar graph. This model combines the series’ basic functionality with practical solutions that facilitate field work.

Basic measurements with additional features

The UT139A model allows for the measurement of DC and AC voltage up to 600 V, DC and AC current up to 10 A, resistance, capacitance, and frequency, and additionally offers 1.5 V and 9 V battery testing. It stands out from other models with a maximum reading of 2000 and the inclusion of the V.F.C. (low-pass filter) function. Automatic and manual range switching allows you to adapt the operation to a specific measurement and enhances user convenience.

Ease of use and safety

The UT139A is equipped with a diode test, continuity buzzer, duty cycle measurement, Data Hold function, Relative mode, and LCD backlight. The UT139 series also offers full protection up to 600 V, automatic shut-off, and a True RMS function that increases measurement accuracy. It is a practical solution for users looking for a reliable multimeter for standard electrical tasks.

Included

Digital multimeter
2 AA batteries
Test leads (1 pair)

Specifications

Manufacturer	Uni-T
Model	UT139A
Product type	True RMS digital multimeter
DC voltage range	20 mV / 200 mV / 2 V / 20 V / 200 V / 600 V ±(0.5% + 2)
AC voltage range	20 mV / 200 mV / 2 V / 20 V / 200 V / 600 V ±(1.0% + 3)
DC current range	200 µA / 2000 µA / 20 mA / 200 mA / 2 A / 10 A ±(1.0% + 2)
AC current range	200 µA / 2000 µA / 20 mA / 200 mA / 2 A / 10 A ±(1.2% + 3)
Resistance measurement range	200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ ±(1.0% + 2)
Capacitance measurement range	9.999 nF – 99.99 mF ±(4.0% + 5)
Frequency range	10 Hz – 10 MHz ±(0.1% + 4)
Battery test range	1.5 V / 9 V ±(1.0% + 2)
Maximum display reading	2000
AC frequency range	45 Hz – 400 Hz
Range selection	Automatic and manual
Functions	True RMS, NCV, diode test, continuity buzzer, duty cycle, Data Hold, Relative mode, LCD backlight, V.F.C.
Measurement category	CAT III 600 V
Power supply	2 × 1.5 V AA batteries
Weight	354 g
Dimensions	175 × 81 × 48.5 mm
Display dimensions	58 × 36 mm
Certifications	CE, UKCA, cETLus
