Habotest HT113C Digital Universal Multimeter
Product Parameters
| Quantity per carton | 50 pcs. |
| Net weight | 206 |
| Box length | 16,00 |
| Box width | 11,00 |
| Box height | 5,00 |
| Gross weight | 370 |
| HS Code | 9030310090 |

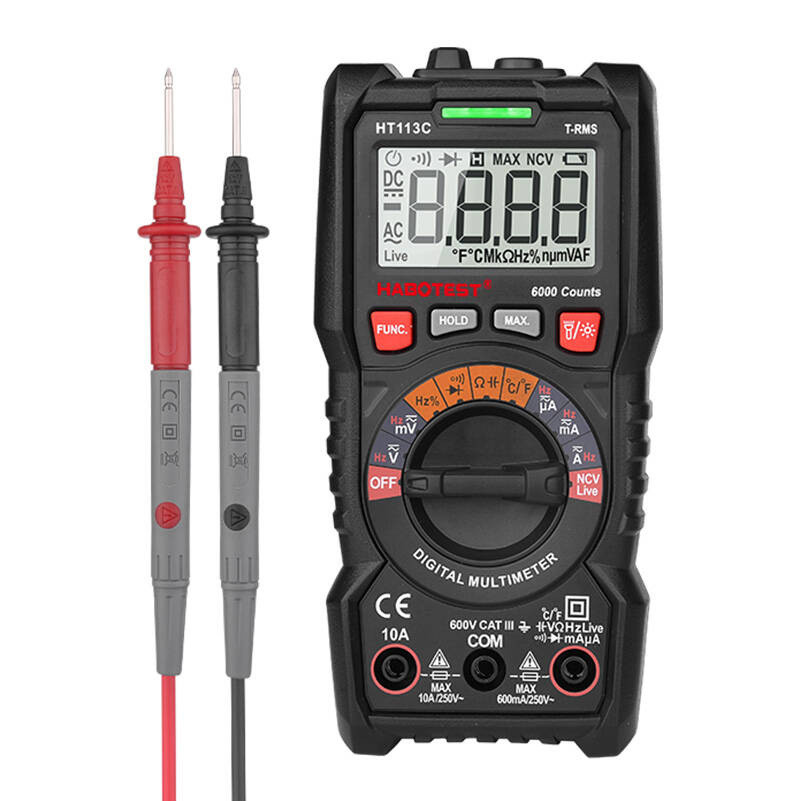

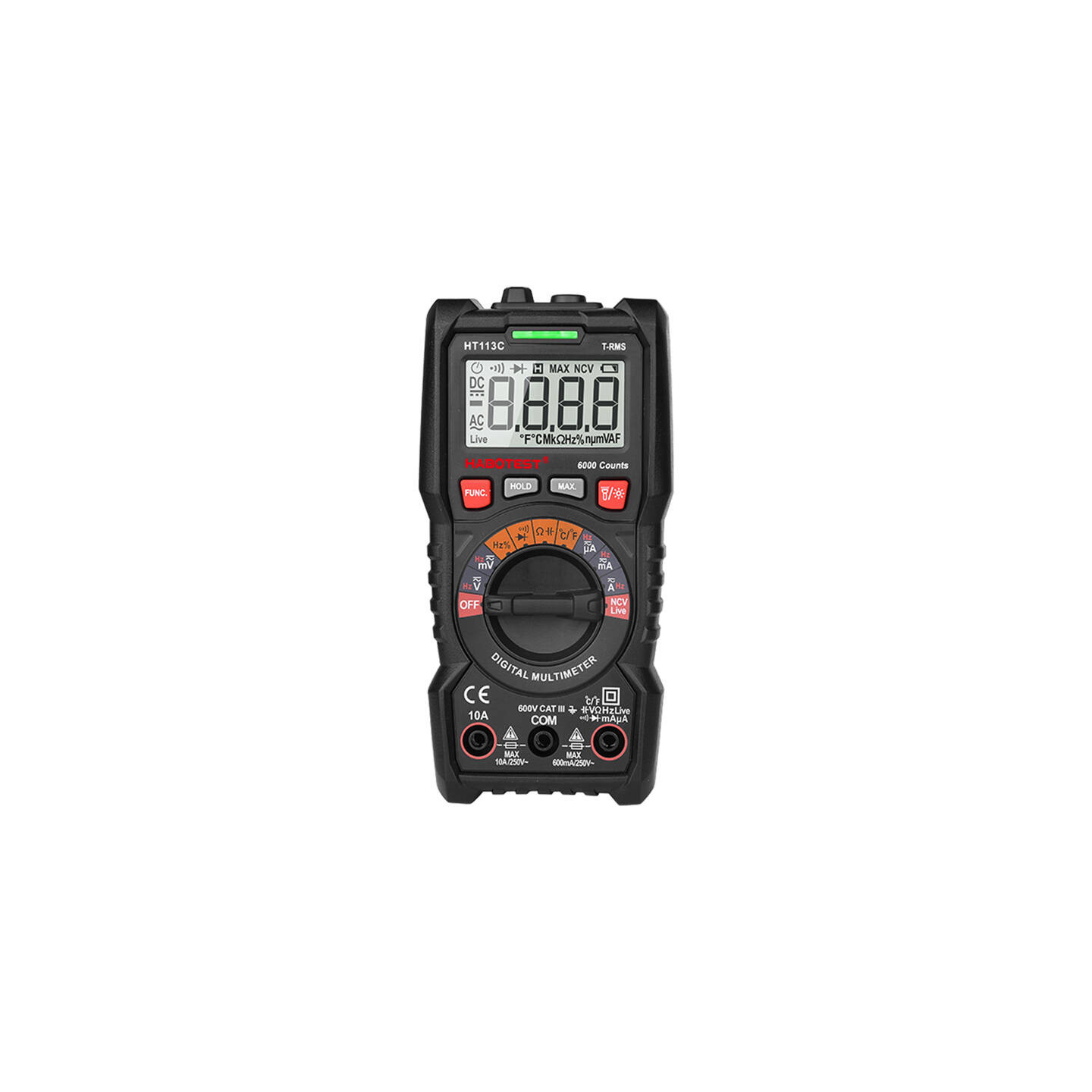

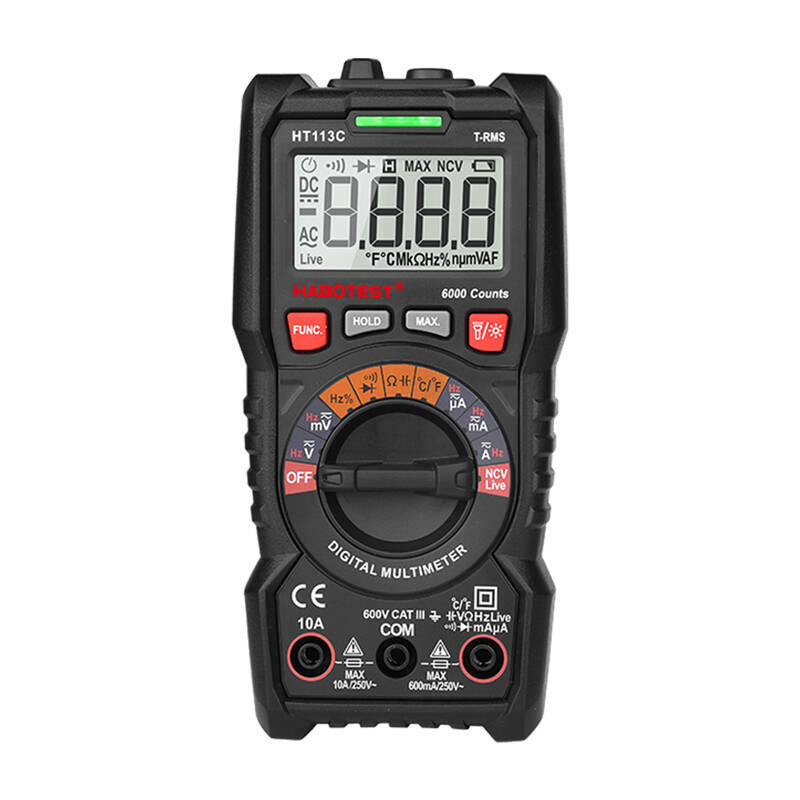

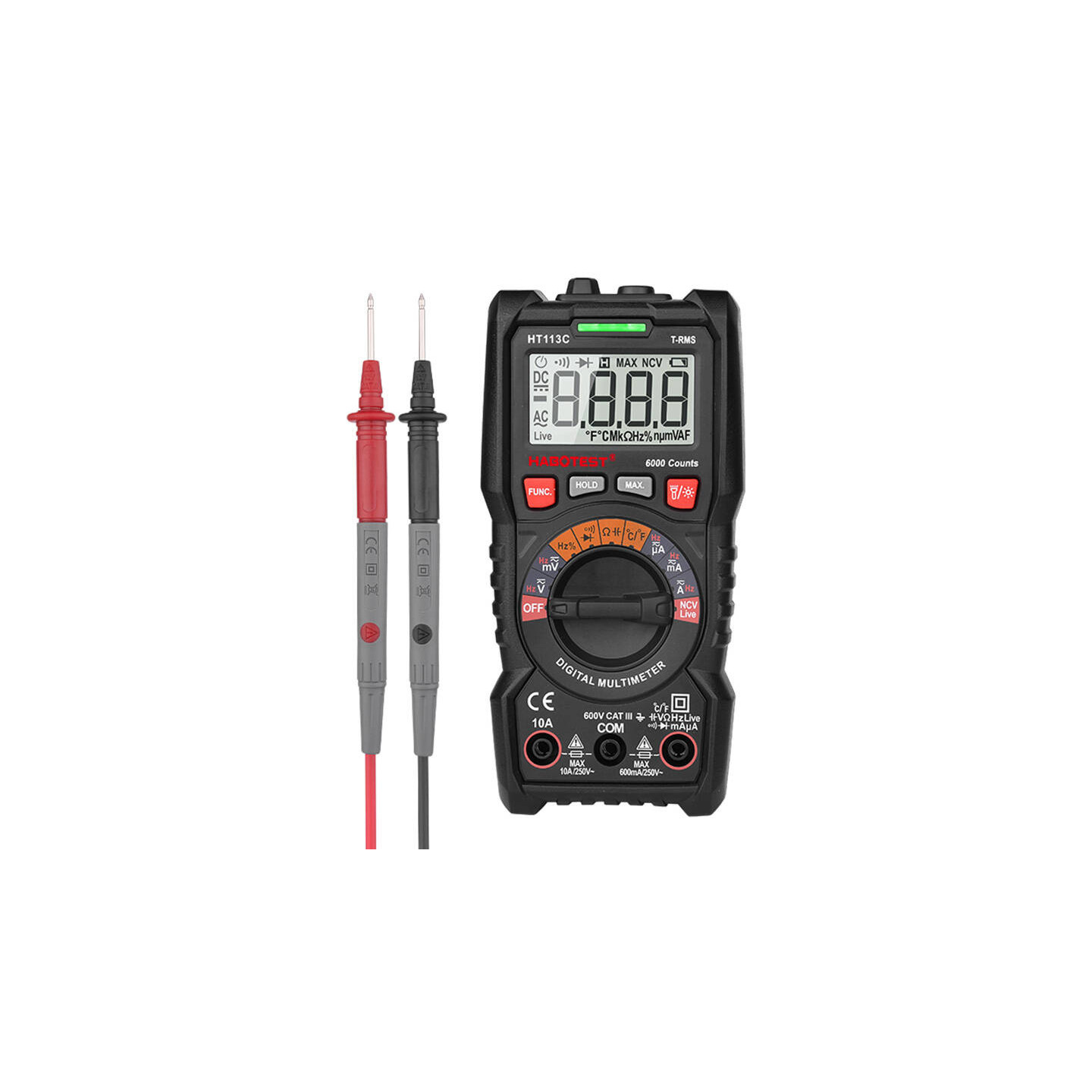

Habotest HT113C digital universal multimeter
Equip yourself with the lightweight and handy Habotest HT113C digital universal multimeter, which will allow you to conveniently and safely measure voltage, current or resistance. Habotest HT113C is equipped with a practical stand so you can put the product on the shelf, its advantage is also the NCV function, the ability to test diodes and a flashlight. Made of soft material, the casing is pleasant to the touch, but also extremely durable, resistant to wear and fall.
Many useful functions
The Habotest HT113C digital universal multimeter offers a number of functions that are perfect for DIY and electrical work. The device allows you to measure DC and AC voltage, DC and AC current and resistance, in addition, it allows you to test diodes and offers NCV function. Special buttons will allow you to conveniently change functions, while the easy-to-read display provides access to the results you need. The number of counts is 6,000, moreover, the multimeter allows measuring continuity, fill factor and data storage.
Thoughtful design
The device is distinguished by its handy design and weighs only about 220 g. Thanks to the use of soft material, the housing of the device is pleasant to the touch, and it also stands out for its high wear and fall resistance. The multimeter is easy to transport and facilitates various types of electrical work, and thanks to the stand you can put it on a table, for example. The low battery indicator and backlight are also a plus.
| Producer | Habotest | ||
|---|---|---|---|
| Model | HT113 | HT113B | HT113C |
| DC voltage measurement range | 200mV/2V/20V/200V/600V ±(0,5%+3) |
400mV/4V/40V/400V/600V ±(0,5%+3) |
600mV/6V/60V/600V ±(0,5%+3) |
| AC voltage measurement range | 200V/600V ±(1,0%+3) | 400mV/4V/40V/400V/600V ±(1,0%+3) |
600mV/6V/60V/600V ±(1,0%+3) |
| DC current measurement range | 20mA/ 200mA ±(1,2%+3) 10A ±(2,0%+3) | 400uA/4000uA/40mA/400mA ±(1,2%+3) 10A ±(2,0%+3) |
600uA/6000uA/60mA/600mA ±(1,2%+3) 10A ±(2,0%+3) |
| AC current measurement range | - | 400uA/4000uA/40mA/400mA ±(1,5%+3) 10A ±(2,0%+3) |
600uA/6000uA/60mA/600mA ±(1,5%+3) 10A ±(2,0%+3) |
| Resistance measurement range | 200ꭥ/2kꭥ/20kꭥ/200kꭥ/2Mꭥ/20Mꭥ ±(1,0%+3) |
400ꭥ/4kꭥ/40kꭥ/400kꭥ/4Mꭥ/40Mꭥ ±(1,0%+3) |
600ꭥ/6kꭥ/60kꭥ/600kꭥ/6Mꭥ/60Mꭥ ±(1,0%+3) |
| Capacitance measurement range | - | - | 10nF/100nF/1µF/10µF/100µF/1mF/10mF ±(4,0%+5) 100mF ±(5,0%+5) |
| Frequency measurement range | - | - | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(1,0%+3) |
| Measuring range of fill factor | - | - | 1%~99% ±(3,0%+3) |
| Live Test | No | No | Yes |
| NCV | No | Yes | Yes |
| Diode testing | Yes | Yes | Yes |
| Continuity | Yes | Yes | Yes |
| Number of counts | 2000 | 4000 | 6000 |
| Data storage | Yes | Yes | Yes |
| True RMS value | No | Yes | Yes |
| Bandwidth | 40~400Hz | 1kHz | 1kHz |
| Low battery indicator | Yes | Yes | Yes |
| Automatic power off function | Yes | Yes | Yes |
| Illumination | Yes | Yes | Yes |
| Flashlight | No | Yes | Yes |
| Power supply | 2x AAA battery 1.5V | 2x AAA battery 1.5V | 2x AAA battery 1.5V |
| Safety | EN61010-2-030 EN61010-2-033 CAT III 600V |
EN61010-2-030 EN61010-2-033 CAT III 600V |
EN61010-2-030 EN61010-2-033 CAT III 600V |
| Weight | Approx. 220 g | Approx. 220 g | Approx. 220 g |
| Dimensions | 151 x 75 x 48 mm | 151 x 75 x 48 mm | 151 x 75 x 48 mm |
