Shelly PM Gen3 Drimmer Lighting Controller 0/1-10V, WiFi/Bluetooth

Name: Shelly PM Gen3 Drimmer Lighting Controller 0/1-10V, WiFi/Bluetooth
Brand: Shelly
SKU: 49081-uniw
Price: 25.53 EUR
Availability: InStock

25,53 €

AR PVN

Ir Noliktavā

Product Parameters

Connectivity	Wi-Fi, Bluetooth
Category	Switches
App	Google Home, Amazon Alexa
Quantity per carton	462 szt.
Gross weight	40
Net weight	28
Box length	4,50
Box width	4,00
Box height	2,50
HS Code	8543709099

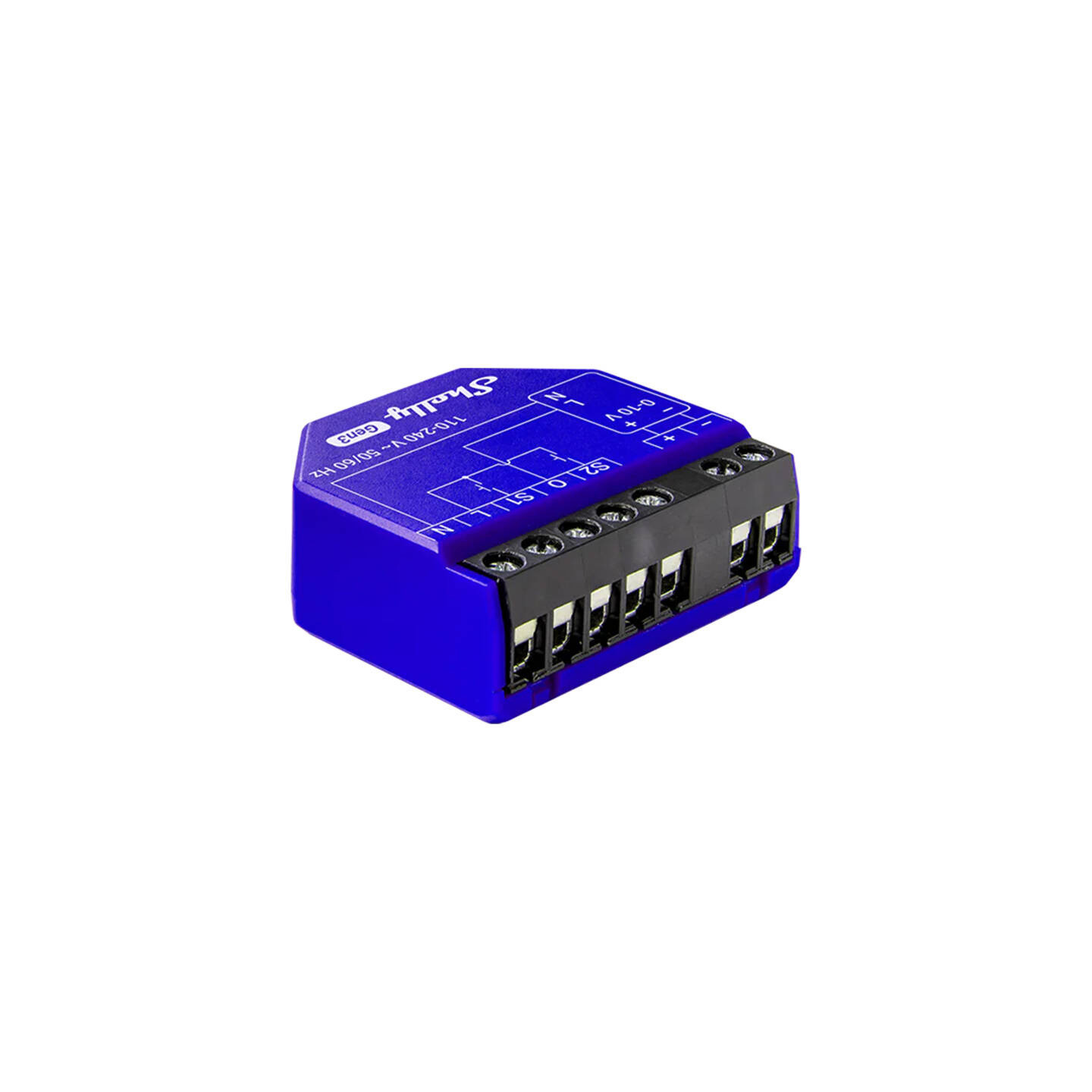

Shelly Dimmer 0/1-10V PM Gen3 lighting controller

The Shelly Dimmer 0/1-10V PM Gen3 is a versatile lighting controller that provides full control over the brightness and energy consumption in your home or office. With support for the 0/1-10V standard and integrated power monitoring features, the device offers precision and flexibility in managing different types of lighting. Optimized to work with popular automation platforms, the Shelly Dimmer Gen3 brings a new quality to everyday life - without the need for additional hubs.

Seamless control over lighting

The Shelly Dimmer 0/1-10V PM Gen3 offers full control over light brightness, adjusting it to your current needs and preferences. With support for one-way and two-way dimming modes, the device works perfectly with both physical switches and automation systems. In addition, a built-in night mode allows the brightness to be automatically reduced during the evening hours, enhancing user comfort.

Energy consumption monitoring

One of the key features of the Shelly Dimmer Gen3 is the ability to precisely monitor energy consumption. The controller displays data on voltage (V), amperage (A) and power (W), giving you a full view of the performance of connected devices. This feature allows you to better optimize power consumption and reduce operating costs.

Smart automation and integration

The Shelly Dimmer Gen3 controller is not only about managing lighting, but also integrating with advanced automation systems. With support for protocols such as KNXnet/IP and MQTT, the device is ideal for more demanding installations. Combine it with the Shelly Plus Add-On module to enrich functionality with additional sensors, such as humidity, temperature or light intensity measurements. Customizable thresholds and offsets make the device adaptable to individual user needs.

Reliability

Equipped with a new ESP Shelly processor and increased Flash memory, the controller features reliability, fast response and performance that meets the expectations of even the most demanding users. The Wi-Fi booster and BLE gateway features provide even better range and connection stability, while compatibility with popular platforms such as Alexa, Google Assistant and Home Assistant guarantees intuitive operation and versatile applications.

Yes
Manufacturer	Shelly
Model	0/1-10VPMgen3
Dimensions	38.5 x 43.5 x 17 mm
Weight	28,5 g
Maximum tightening torque of screw terminals	0.4 Nm
Cross section of wires	From 0.2 to 2.5 mm² (solid conductors, stranded conductors and sleeve terminals)
Length of stripped wire	5 to 6 mm
Mounting	In a wall console / behind a wall / in a ceiling structure
Housing material	Plastic
Case color	Pantone 2736C (blue)
Color of connectors	Black
Operating temperature range	From -20 °C to 40 °C
Humidity	30% - 70% relative humidity
Maximum installation altitude	2000 m
Power supply	110-240 V~ 50/60 Hz
Power consumption	< 1,5 W
No need for a neutral wire	No
Voltage control type 0-10V/1-10V	Current source
Short circuit strength	6 kA
Energy limitation class	3
Maximum switching voltage	240 V~
Maximum switching current	13 A
Maximum control current	35 mA
Voltmeter (AC)	110 V - 240 V
Voltmeter accuracy	±10%
Ammeter (AC)	50 mA - 16 A
Accuracy of the ammeter	±10%
Power and energy measurement	Active and apparent power, active and apparent energy, power factor (Power Factor)
Measurement data storage	No
Built-in temperature sensor	Yes
Radio communication	Wi-Fi range
Up to 30 m indoors, up to 50 m outdoors (depending on local conditions)	Bluetooth protocol
4.2	Bluetooth range
Up to 10 m indoors, up to 30 m outdoors (depending on local conditions)	Processor
Shelly ESP32 C3	Clock frequency
40 MHz	Flash memory
8 MB	Schedules
20	Webhooks (URL shares)
20 (5 URLs per webhook)	Script support
Yes	MQTT
Yes	Advanced scheduling
Yes	KVS (Key-Value Store)
